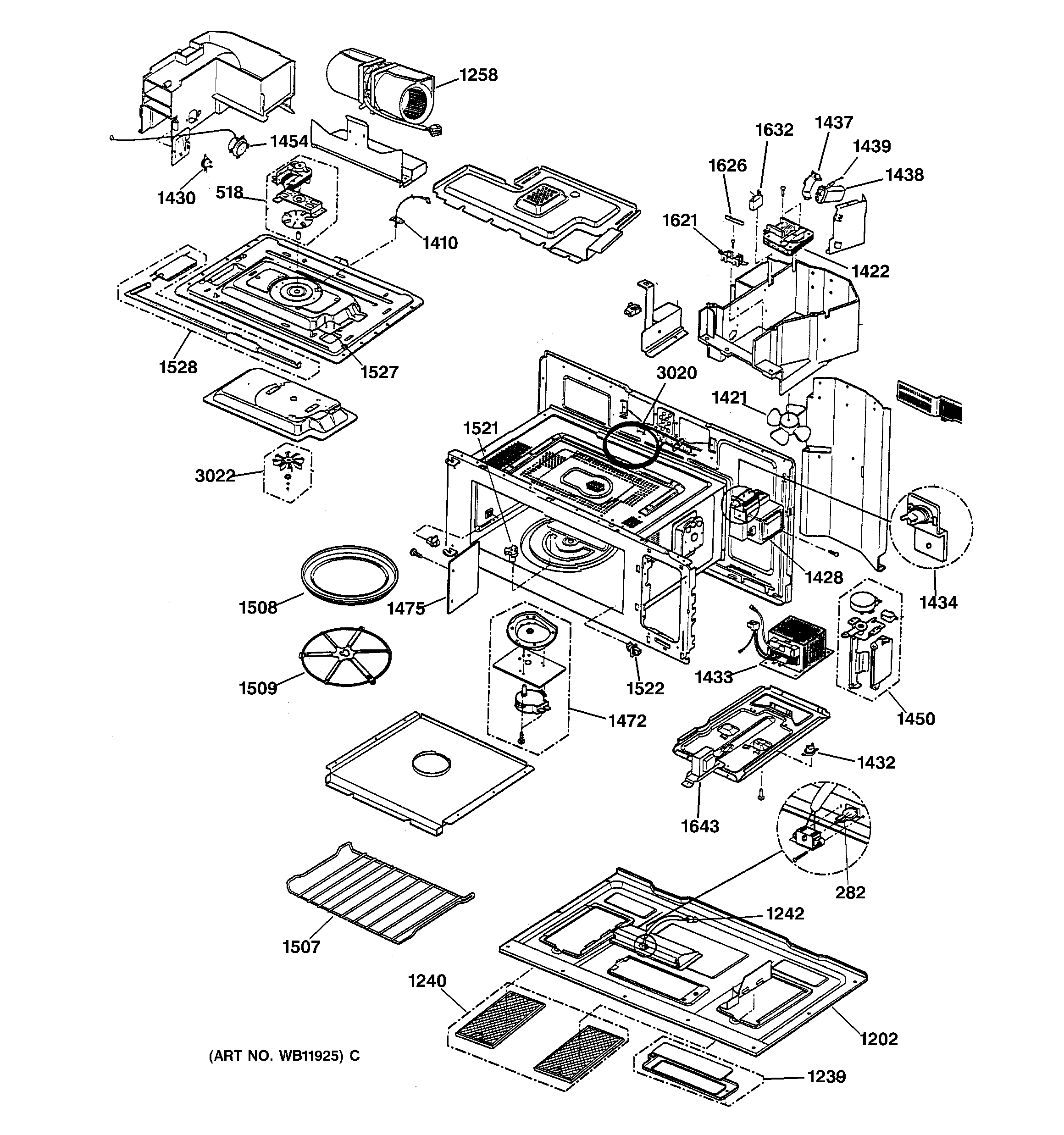

JVM1490CD03 UNIT PARTS & BASE
Products
| Position | Product |
|---|---|
| 282 | WB01X10239 GE Halogen Lamp 20W 12V G4 Base |
| 518 | GEN WB26X10098 |
| 1202 | GEN WB56X10208 |
| 1239 | GEN WB36X10178 |
| 1240 | WB06X10309 GE Grease Filter |
| 1242 | GEN WB06X10310 |
| 1258 | WB26X36106 GE Ventilation Motor |
| 1410 | WB18X10126 GE Oven Thermistor |
| 1421 | FAN |
| 1422 | GEN WB26X10101 |
| 1428 | GEN WB27X10309 |
| 1430 | WB20X10048 GE Oven Thermostat |
| 1432 | GEN WB21X10045 |
| 1433 | GEN WB20X10022 |
| 1434 | MGT THERMO ASSY |
| 1437 | GEN WB06X10316 |
| 1438 | CAPACITOR, H. V. |
| 1439 | DIODE-CABLE |
| 1450 | GEN WB06X10314 |
| 1454 | SENSOR ASS'Y |
| 1472 | GEN WB26X10099 |
| 1475 | GEN WB06X10311 |
| 1507 | GEN WB48X10017 |
| 1508 | GEN 1B71961A |
| 1509 | GEN WB06X10315 |
| 1521 | WB06X10312 GE Oven Shaft Assembly |
| 1522 | GEN WB02X10750 |
| 1527 | GEN WB06X10317 |
| 1528 | GEN WB06X10318 |
| 1621 | FUSE HOLDER |
| 1626 | WB27X10928 GE Oven Line Fuse |
| 1632 | WB27X10329 GE Oven Capacitor |
| 1643 | GEN WB20X10021 |
| 3020 | GEN WB44X10026 |
| 3022 | GEN WB06X10319 |
