JVM1530DM1BB MICROWAVE

JVM1530DM1BB MICROWAVE

Written by

in

JVM1530DM1BB MICROWAVE

Products

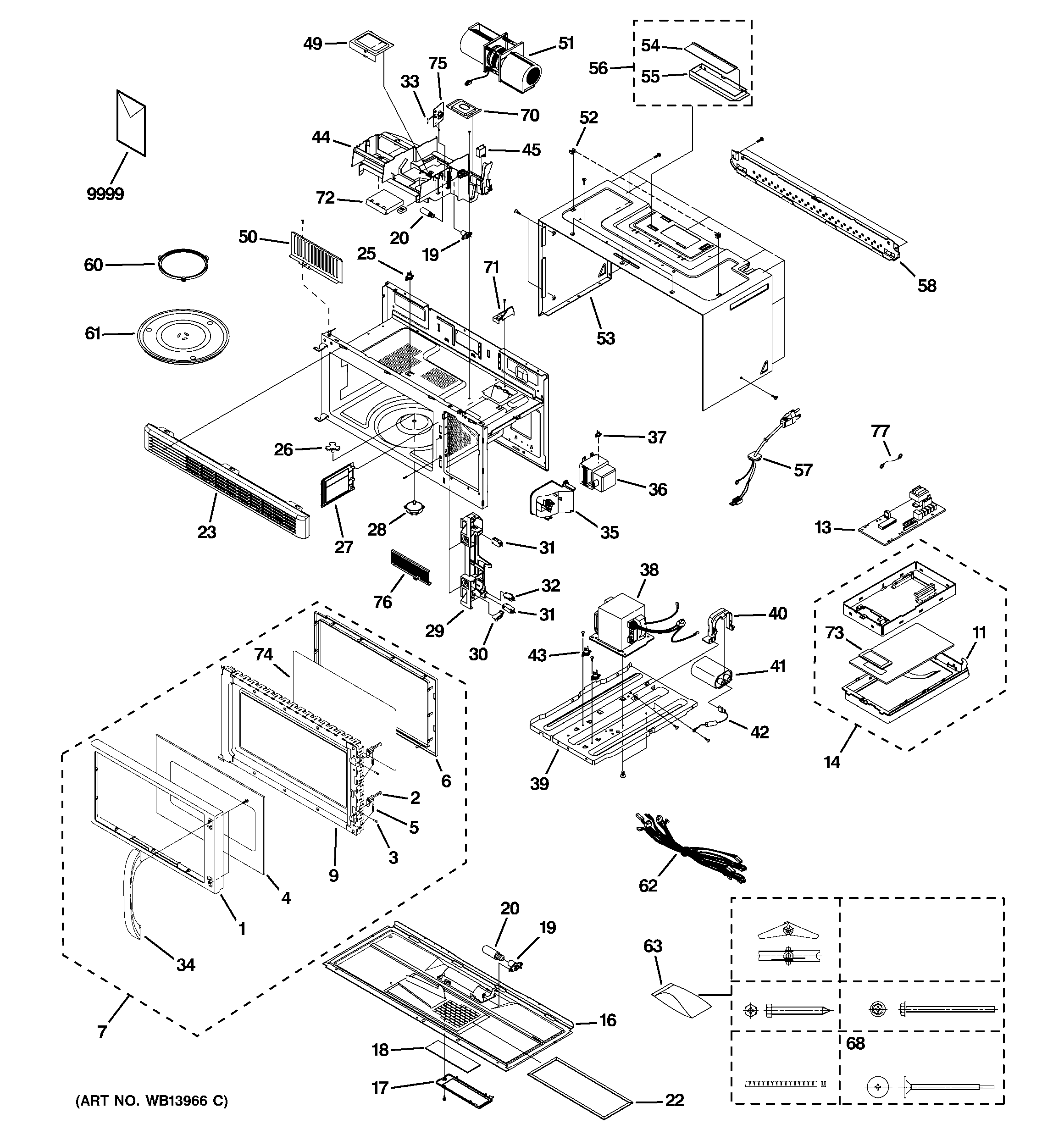

Position	Product
1	GEN WB55X10613
1	DOOR OUTER FRAME
2	GEN WB05X10005
2	GEN WB05X10007
3	WB06X10060 GE Oven Hinge Pin
4	GEN WB36X10282
4	GEN WB36X10285
5	GEN WB05X10006
6	GEN WB55X10532
6	GEN WB55X10535
7	GEN WB56X10736
7	GEN WB56X10737
9	GEN WB55X10859
9	GEN WB55X10862
11	GEN WB07X10529
11	GEN WB07X10532
13	WB27X10828 GE Oven PCB Assembly
14	GEN WB07X11077
14	GEN WB07X11079
16	GEN WB56X10735
16	GEN WB56X10732
17	WB36X10217 GE Oven Glass Cover
17	WB36X10216 GE Oven Glass Cover
18	WB36X10071 GE Oven Microwave Glass Lamp Light Lens Cover
19	WB08X10016 GE Range Oven Microwave Light Bulb Lamp Holder Socket
20	WB36X10003 GE Oven 40W 130V Light Bulb
22	WB06X10596 GE Grease Filter Replacement
23	GEN WB07X11078
23	GEN WB07X11084
25	WB27X10195 GE Oven Thermostat
26	GEN WB06X10597
27	GEN WB02X11147
28	WB26X10168 GE Motor Drive
29	MICROWAVE LATCH BODY
30	LEVER-S/W
31	WB24X829 GE Oven Microwave Secondary Micro Switch
32	WB24X830 GE Oven Door Switch
33	WB27X10928 GE Oven Line Fuse
34	HANDLE BK
34	WB15X10154 GE Oven Handle Assembly White
35	GEN WB06X10717
36	GEN WB27X10827
37	GEN WB27X10166
38	GEN WB27X10826
39	GEN WB56X10733
40	GEN WB06X10595
41	GEN WB27X10825
42	WB27X10597 GE Oven Diode
43	GEN WB27X10194
44	GEN WB26X10209
45	WB27X10170 GE Oven Capacitor
49	GEN WB06X10718
50	GEN WB06X10719
51	GEN WB26X10180
52	GEN WB56X10612
52	GEN WB56X10607
53	WB01X10071 GE Oven Holder Assembly
54	WB06X10129 GE Oven Damper Cover
55	WB06X10436 GE Oven Hood Damper Assembly
57	GEN WB18X10200
58	GEN WB56X10608
60	ROLLER GUIDE ASSY
61	WB39X10003 GE Oven Microwave Glass Cooking Tray
62	GEN WB18X10282
63	GEN WB01X10287
68	WB01X10180 GE Oven Flat Bolt
70	GEN WB06X10720
71	GEN WB06X10721
72	GEN WB06X10722
73	GEN WB36X10070
74	GEN WB36X10068
75	WB02X11200 GE Noise Filter Assembly
76	GEN WB02X11201
77	WB18X10122 GE Oven Wire GND Printed Circuit Board
9999	GEN 49-40542
9999	GEN 31-40067
