JVM1533WD002 MICROWAVE

JVM1533WD002 MICROWAVE

Written by

in

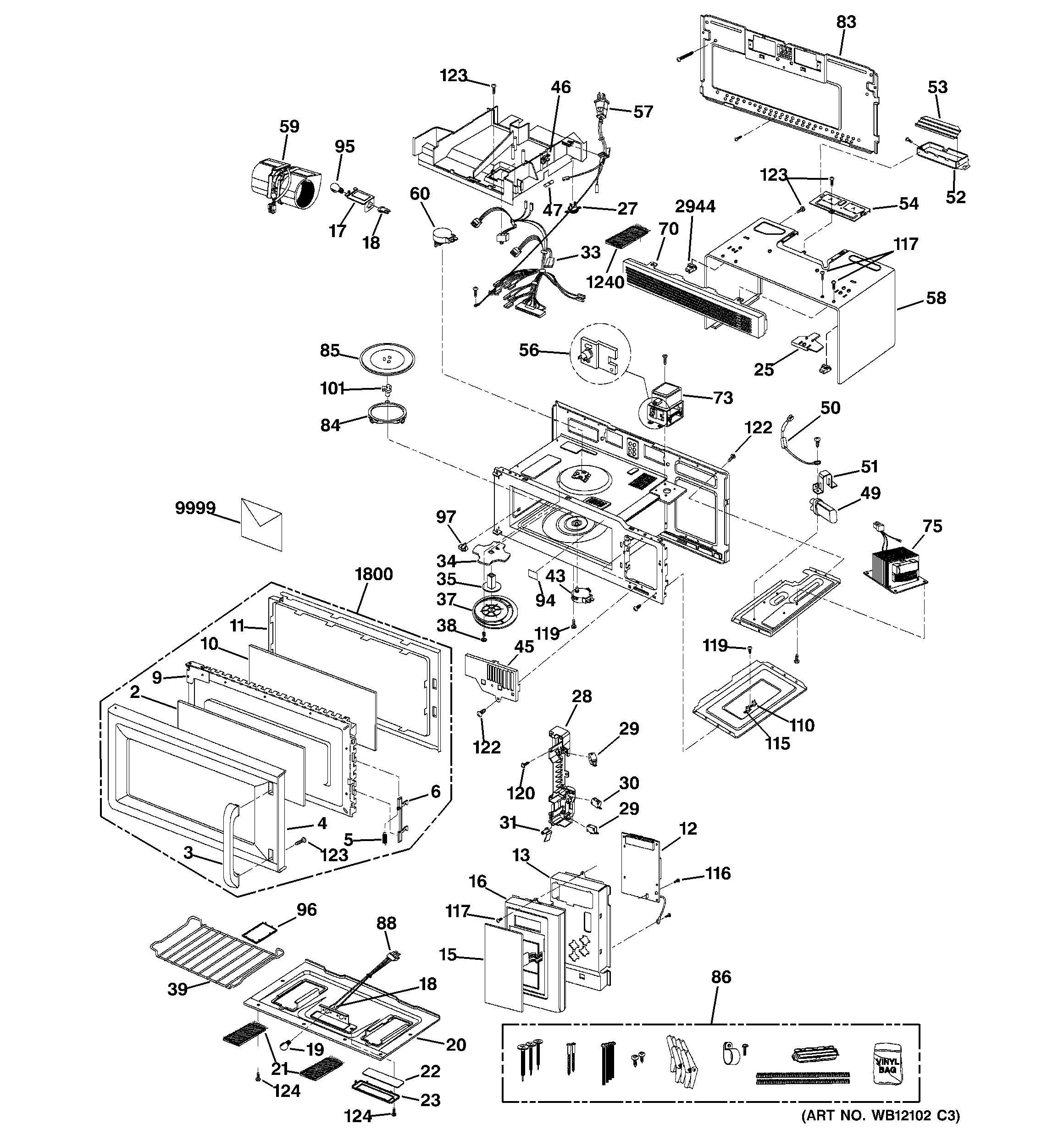

JVM1533WD002 MICROWAVE

Products

Position	Product
2	GEN WB36X10195
3	GEN WB15X10076
4	GEN WB55X10462
5	GEN WB09X10017
6	GEN WB02X10773
9	GEN WB55X10459
10	GEN WB36X10196
11	GEN WB55X10460
12	GEN WB27X10501
13	GEN WB06X10363
15	GEN WB27X10500
16	GEN WB07X10464
17	GEN WB06X10364
18	GEN WB08X10022
19	WB36X10328 GE Oven 20W 120V Light Bulb Intermediate Base
20	GEN WB56X10232
21	WB06X10359 GE Grease Filter Replacement
22	WB36X10293 GE Oven Glass
23	GEN WB06X10358
25	BRACKET ASM
27	GEN WB27X10502
28	GEN WB06X10256
29	PRIMARY INTERLOCK SWITCH
30	WB24X25397 GE Oven Interlock Monitor Switch
31	GEN WB06X10259
33	LEAD WIRE ASM
34	BLADE-STIRRER
35	HOLDER-STIRRER
37	COVER-STIRRER
38	RIVET ASSY ALL
39	GEN WB48X10018
43	GEN WB26X10108
45	GEN WB06X10369
46	GEN WB06X10205
47	WB27X10928 GE Oven Line Fuse
49	GEN WB27X10418
50	DIODE-CABLE
51	GEN WB06X10362
53	WB06X10565 GE Oven Vent Damper
54	GEN WB06X10366
56	BRACKET ASM
57	POWER CORD ASM
58	OUTER CASE
59	GEN WB26X10107
60	GEN WB26X10109
70	GEN WB07X10463
73	GEN WB27X10505
75	GEN WB27X10499
83	GEN WB56X10233
84	ROTATING RING ASM
85	WB49X10129 GE Oven Microwave Turntable Glass Cooking Tray
86	HARDWARE INSTALLATION
88	LEAD WIRE ASM
94	GEN 49-40204
95	GEN WB36X10198
96	GEN WB02X10761
97	GEN WB06X10365
101	GEN WB06X10255
110	GEN WB20X10020
115	GEN WB27X10506
116	WB02X10729 GE Oven Main PCB Assembly Screw
117	SCREW TAPPING,TRUSS HEAD
119	SCREW TAPPING,PAN HEAD
120	GEN 4B70188B
122	WB1X1514 GE Oven Screw
123	WB1X1515 GE Oven Screw
124	SCREW TAPPING,TRUSS HEAD
1240	WB02X33061 GE Charcoal Filter
1800	DOOR ASM
2944	WB01X10124 GE Microwave Nut Assembly
9999	GEN 49-40191-1
9999	GEN 31-20965
9999	GEN 49-40192
9999	GEN 49-40191-2
9999	GEN 49-40193
