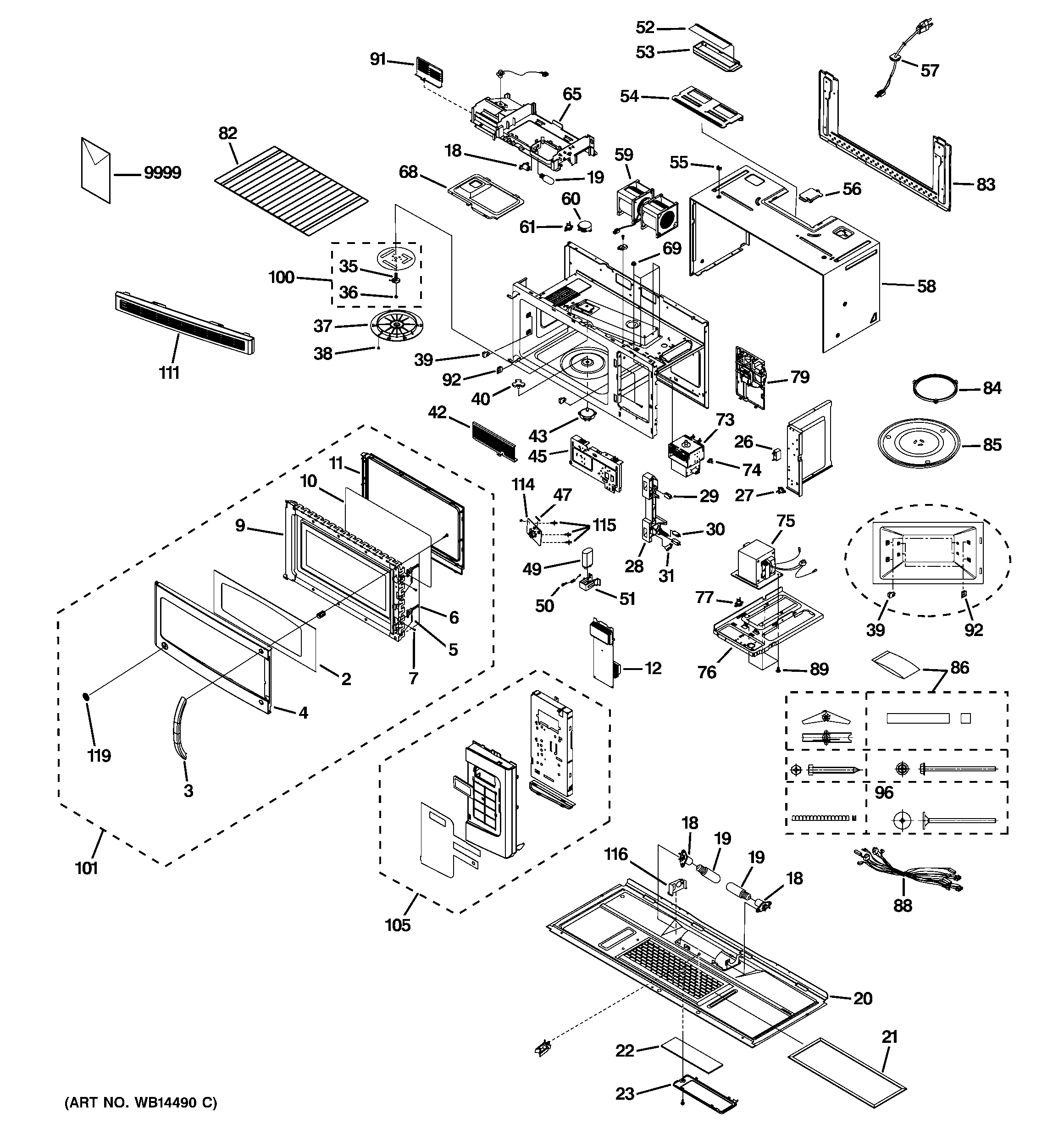

JVM1540DN1BB MICROWAVE

JVM1540DN1BB MICROWAVE

Written by

in

JVM1540DN1BB MICROWAVE

Products

Position	Product
2	GEN WB36X10335
2	GEN WB36X10336
2	GEN WB36X10334
3	GEN WB55X10864
3	GEN WB15X10224
3	WB15X10223 GE Oven Door Handle
4	GEN WB55X10861
4	GEN WB55X10865
4	GEN WB55X10858
5	GEN WB05X10006
6	GEN WB05X10005
6	GEN WB05X10007
7	WB06X10060 GE Oven Hinge Pin
9	GEN WB55X10866
9	GEN WB55X10862
9	GEN WB55X10859
10	GEN WB36X10068
11	GEN WB55X10860
11	GEN WB55X10863
11	GEN WB55X10867
12	GEN WB27X10934
18	WB08X10016 GE Range Oven Microwave Light Bulb Lamp Holder Socket
19	WB36X10003 GE Oven 40W 130V Light Bulb
20	WB56X10718 GE Oven Bottom Base
20	GEN WB56X10721
21	WB06X10596 GE Grease Filter Replacement
22	WB36X10071 GE Oven Microwave Glass Lamp Light Lens Cover
23	WB36X10217 GE Oven Glass Cover
23	WB36X10216 GE Oven Glass Cover
26	WB27X10170 GE Oven Capacitor
27	GEN WB27X10194
28	MICROWAVE LATCH BODY
29	WB24X829 GE Oven Microwave Secondary Micro Switch
30	WB24X830 GE Oven Door Switch
31	LEVER-S/W
35	GEN WB06X10286
36	WB06X10416 GE Oven Stirrer Assembly
37	GEN WB06X10767
38	GEN WB06X10768
39	GEN WB06X10467
40	WB06X10420 GE Oven Turntable Coupling
42	GEN WB06X10716
43	WB26X10208 GE Oven Turntable Motor
45	GEN WB06X10147
47	WB27X10928 GE Oven Line Fuse
49	WB27X10240 GE Oven High Voltage Capacitor
50	WB27X10597 GE Oven Diode
51	WB06X10713 GE HVAC Bracket
52	GEN WB06X10715
53	WB06X10436 GE Oven Hood Damper Assembly
54	GEN WB06X10714
55	WB01X10071 GE Oven Holder Assembly
56	GEN WB06X10122
57	GEN WB18X10200
58	GEN WB56X10727
58	GEN WB56X10728
58	GEN WB56X10729
59	GEN WB26X10191
60	WB26X10037 GE Oven Stirrer Motor
61	WB27X10195 GE Oven Thermostat
65	GEN WB27X11012
68	GEN WB06X10121
69	WB01X10065 GE Oven Flange Nut
73	WB27X10939 GE Oven Magnetron Assembly
74	GEN WB27X10166
75	WB27X10868 GE Oven High Voltage Transformer
76	GEN WB56X10726
77	WB27X1127 RANGE THERMAL FUSE
79	WB26X10105 GE Oven Fan Motor Assembly
82	GEN WB48X10050
83	GEN WB56X10260
84	WB06X10139 GE Oven Rack Guide Assembly
85	WB39X10003 GE Oven Microwave Glass Cooking Tray
86	GEN WB01X10181
88	GEN WB18X10406
89	WB01X10084 GE Oven Washer Screw
91	GEN WB06X10434
92	GEN WB06X10468
96	WB01X10180 GE Oven Flat Bolt
101	WB56X10720 GE Oven Door Assembly, Black
101	WB56X10723 GE Oven White Door Assembly
101	GEN WB56X10725
105	GEN WB56X10823
105	GEN WB56X10824
105	WB56X10822 GE Oven Control Panel
111	WB07X11039 GE Oven Grille
111	GEN WB07X11037
111	GEN WB07X11034
114	WB02X11200 GE Noise Filter Assembly
115	WB4X175 GE Oven Printed Circuit Board Support
116	GEN WB02X11265
119	GEN WB03X10306
9999	GEN 31-
