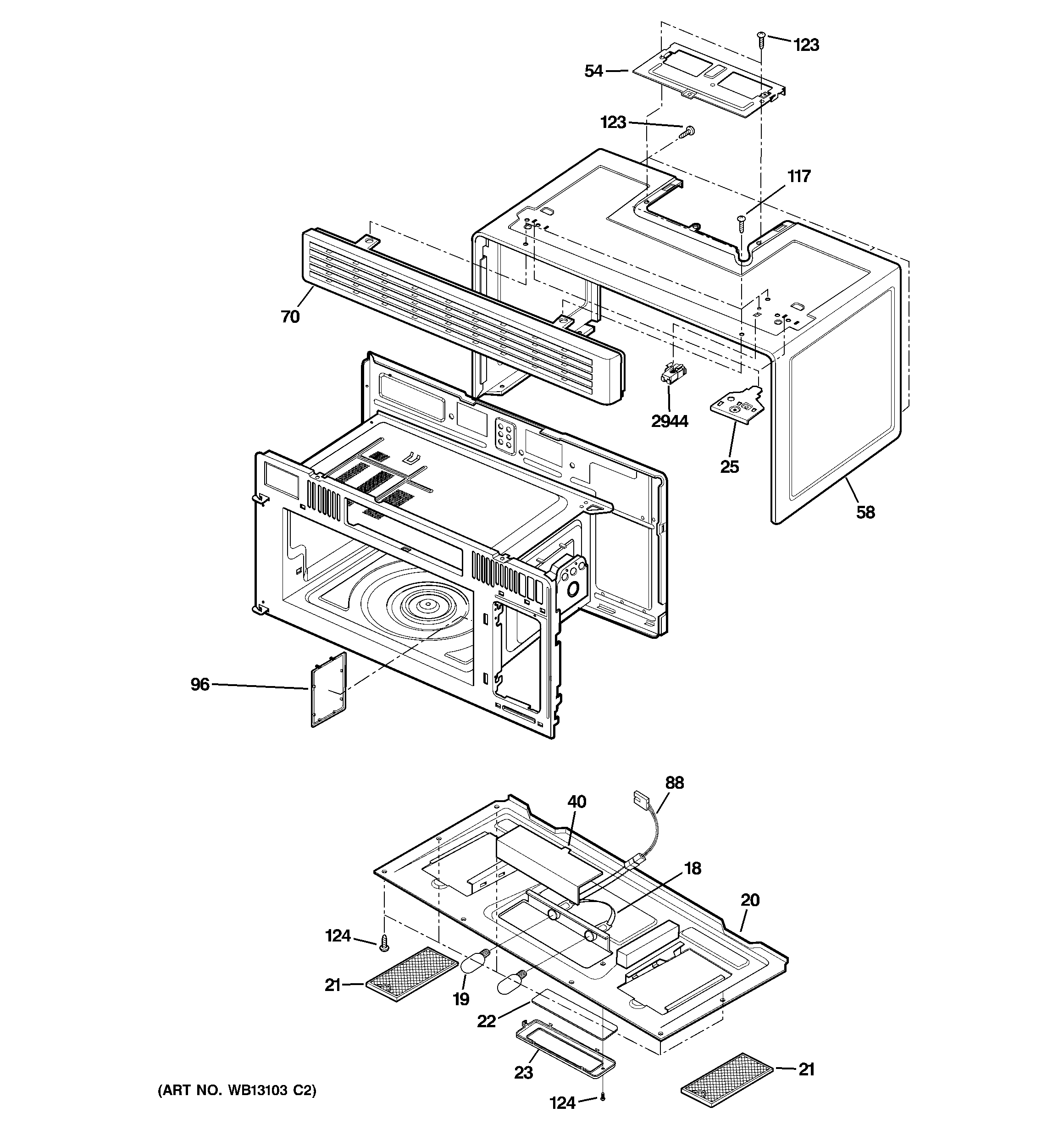

JVM1630BJ01 OVEN CAVITY PARTS

Products

Position	Product
18	GEN WB08X10022
19	WB36X10328 GE Oven 20W 120V Light Bulb Intermediate Base
20	GEN WB56X10429
21	WB06X10359 GE Grease Filter Replacement
22	WB36X10293 GE Oven Glass
23	GEN WB06X10372
25	BRACKET ASM
40	GEN WB06X10514
54	GEN WB06X10366
58	GEN WB56X10558
70	WB07X10967 GE Oven Grille Vent
88	GEN WB18X10227
96	WB06X10764 GE Oven Cover Assembly (Resin)
117	WB01X10134 GE Oven Tapping Pan Head Screw
123	WB1X1515 GE Oven Screw
124	WB01X10107 GE Screw
2944	WB01X10124 GE Microwave Nut Assembly
