JVM1640AB006 MICROWAVE

JVM1640AB006 MICROWAVE

Written by

in

JVM1640AB006 MICROWAVE

Products

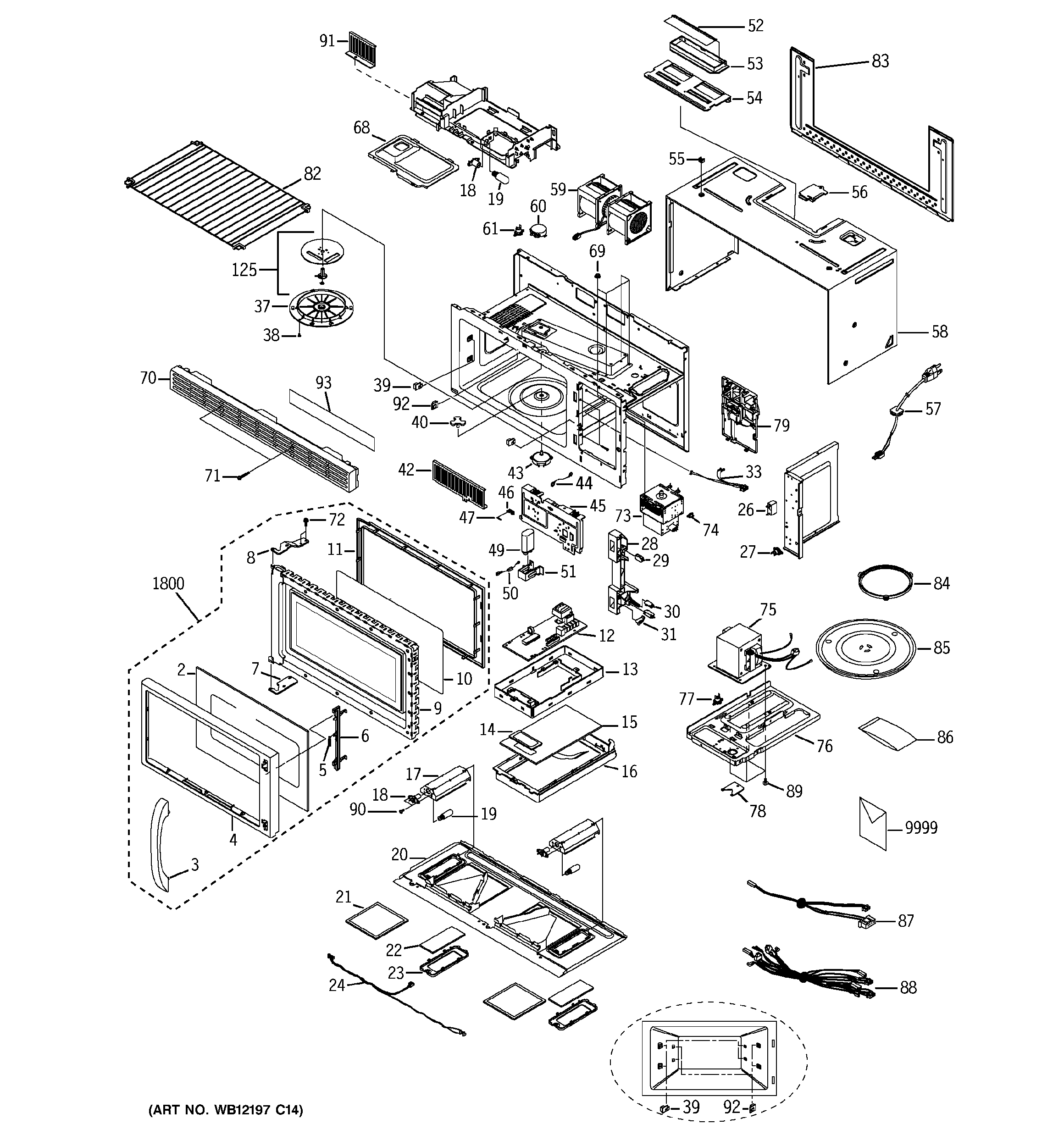

Position	Product
2	GEN WB36X10100
3	ASSY-HANDLE
4	DOOR-A
5	GEN WB09X10013
6	DOOR KEY
7	HINGE- LOWER
8	HINGE- UPPER
9	GEN WB55X10216
10	GEN WB36X10068
11	DOOR-C
12	GEN WB27X10488
13	GEN WB06X10174
14	GEN WB36X10070
15	GEN WB27X10259
16	CONTROL-PANEL
17	GEN WB06X10296
18	WB08X10016 GE Range Oven Microwave Light Bulb Lamp Holder Socket
19	WB36X10003 GE Oven 40W 130V Light Bulb
20	GEN WB56X10262
21	WB6X486 GE Microwave Range Vent Hood Grease Filter
22	GEN WB36X10167
23	COVER LAMP
24	GEN WB18X10121
26	WB27X10170 GE Oven Capacitor
27	GEN WB27X10194
28	GEN WB06X10127
29	WB24X829 GE Oven Microwave Secondary Micro Switch
30	WB24X830 GE Oven Door Switch
31	LEVER-S/W
33	GEN WB18X10055
37	GEN WB06X10130
38	BUTTON-LOCK
39	GEN WB06X10223
40	GEN WB06X10138
42	GEN WB06X10132
43	M/W TURNTABLE MOTOR
44	GEN WB18X10140
45	GEN WB06X10147
46	GEN WB06X10050
47	WB27X10928 GE Oven Line Fuse
49	WB27X10011 GE Microwave Capacitor
50	WB27X1160 GE Microwave High Voltage Diode
51	GEN WB06X10118
52	WB06X10129 GE Oven Damper Cover
53	WB06X10436 GE Oven Hood Damper Assembly
54	GEN WB06X10165
55	WB01X10071 GE Oven Holder Assembly
56	GEN WB06X10122
57	POWER CORD ASM
58	GEN WB56X10145
59	MOTOR-VENTILATION
60	WB26X10037 GE Oven Stirrer Motor
61	WB27X10195 GE Oven Thermostat
68	BRACKET-DUCT UPPER ASM
69	WB01X10065 GE Oven Flange Nut
70	GEN WB07X10274
71	GEN WB01X10069
72	GEN WB01X10064
73	WB27X10017 GE Microwave Oven Magnetron
74	GEN WB27X10166
75	GEN WB27X10133
76	GEN WB56X10212
77	WB27X1127 RANGE THERMAL FUSE
78	COVER TCO BOTTOM
79	WB26X10105 GE Oven Fan Motor Assembly
82	WIRE RACK ASM
83	GEN WB56X10260
84	WB06X10139 GE Oven Rack Guide Assembly
85	WB39X10003 GE Oven Microwave Glass Cooking Tray
86	HARD WARE ASS'Y
87	GEN WB18X10123
88	GEN WB18X10120
89	WB01X10084 GE Oven Washer Screw
90	SCREW-LAMP SOCKET
91	GEN WB06X10167
92	GEN WB06X10224
93	GEN 49-40200
125	WB06X10416 GE Oven Stirrer Assembly
1800	GEN WB55X10215
9999	GEN 49-40082-1
9999	GEN 31-20924
9999	TEMPLATE
9999	GEN 49-40036-4
