JVM1640AH01 OVEN CAVITY PARTS

JVM1640AH01 OVEN CAVITY PARTS

Written by

in

JVM1640AH01 OVEN CAVITY PARTS

Products

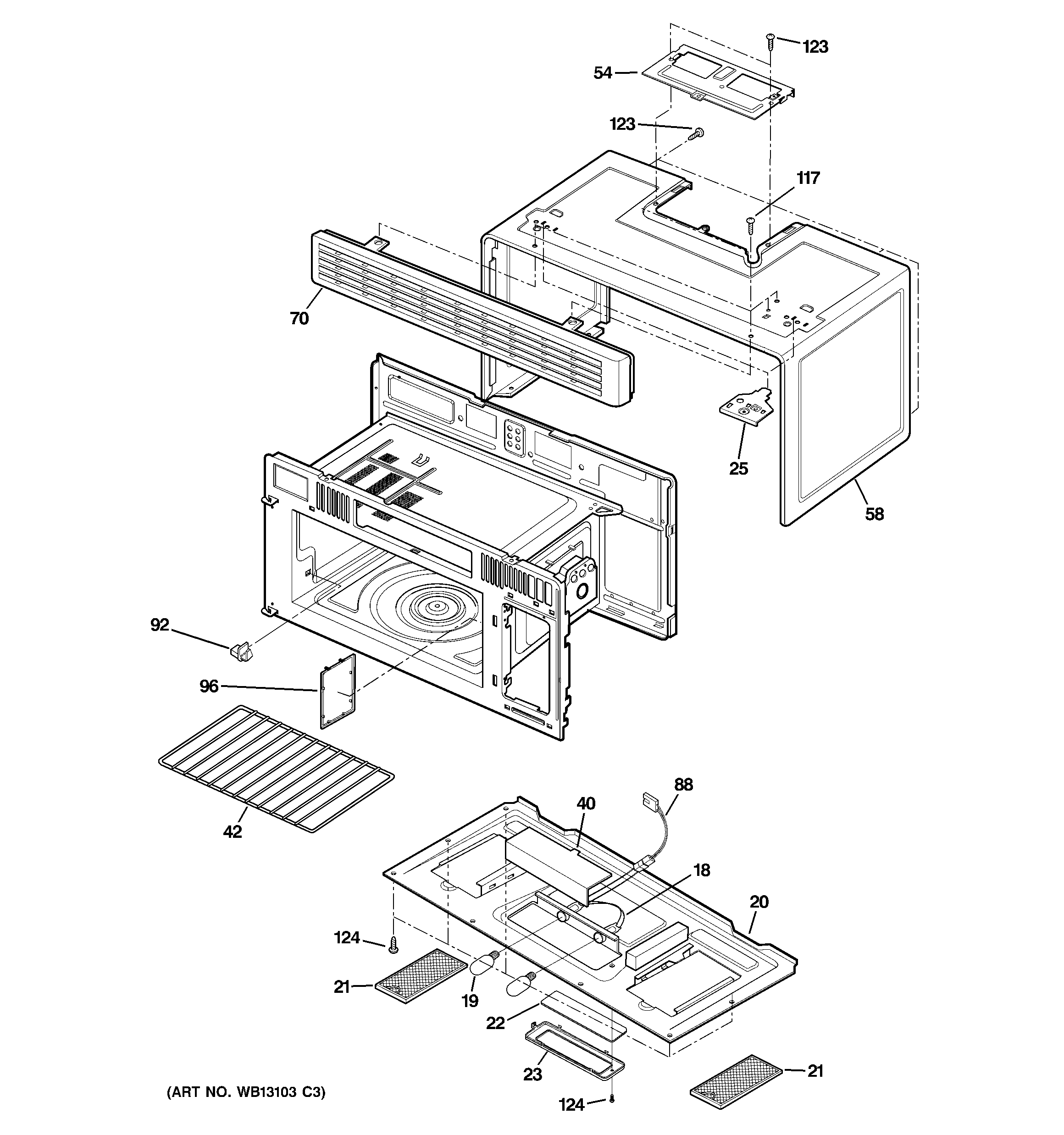

PositionProduct
18GEN WB08X10022
19WB36X10328 GE Oven 20W 120V Light Bulb Intermediate Base
20GEN WB56X10431
21WB06X10359 GE Grease Filter Replacement
22WB36X10293 GE Oven Glass
23GEN WB06X10358
25BRACKET ASM
40GEN WB06X10514
42GEN WB48X10035
54GEN WB06X10366
58GEN WB56X10565
70GEN WB07X10704
88GEN WB18X10227
92GEN WB02X10948
96WB06X10764 GE Oven Cover Assembly (Resin)
117SCREW TAPPING,TRUSS HEAD
123WB1X1515 GE Oven Screw
124SCREW TAPPING,TRUSS HEAD
