JVM1650AB003 MICROWAVE

JVM1650AB003 MICROWAVE

Written by

in

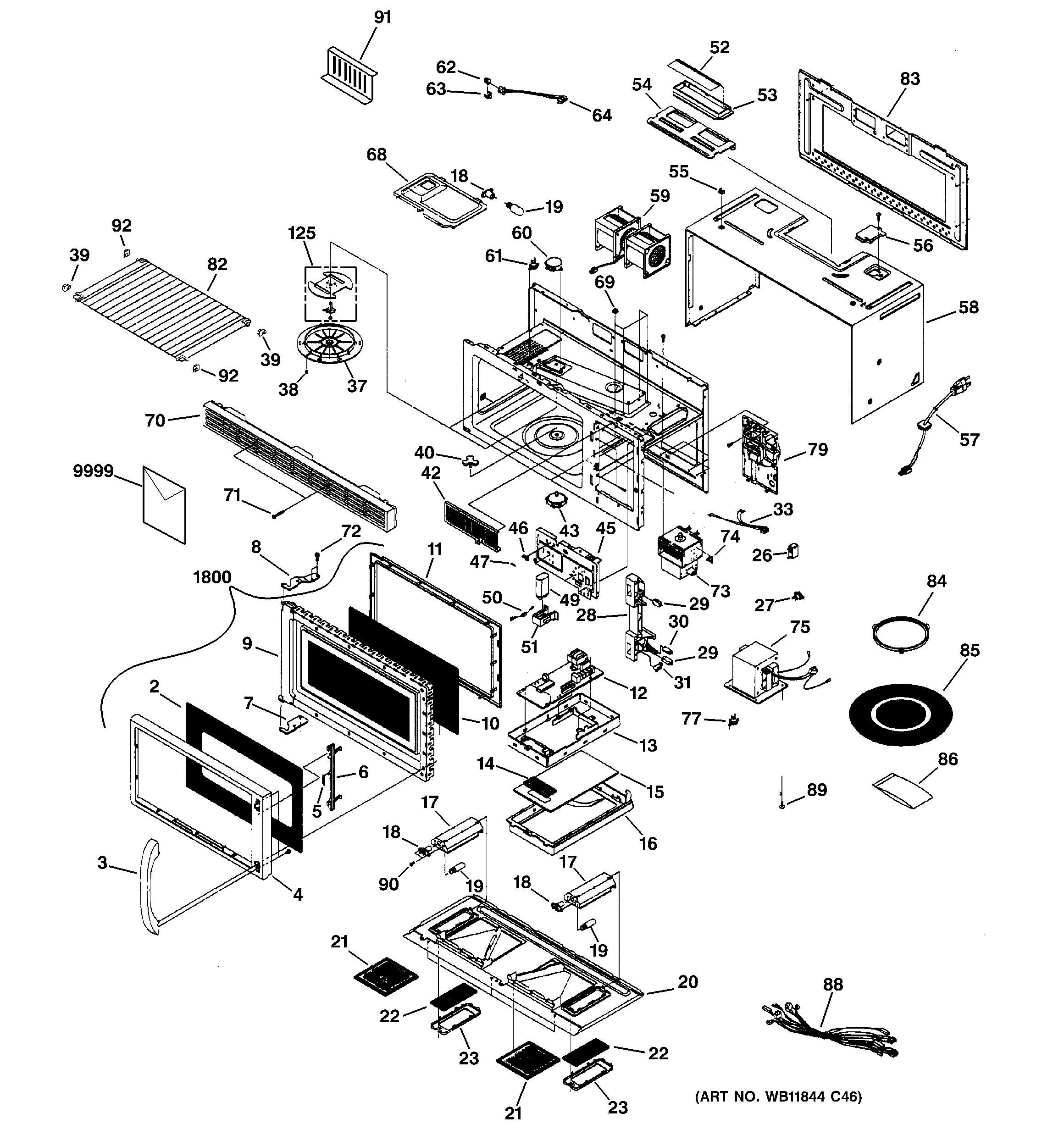

JVM1650AB003 MICROWAVE

Products

PositionProduct
2GEN WB36X10100
3ASSY-HANDLE
4DOOR-A
5GEN WB09X10008
6DOOR KEY
7HINGE- LOWER
8HINGE- UPPER
9GEN WB55X10216
10GEN WB36X10068
11DOOR-C
12PCB-MAIN ASS'Y
13ASSY-BKT C/PANEL
14GEN WB36X10070
15GEN WB27X10255
16CONTROL-PANEL
17GEN WB06X10117
18WB08X10016 GE Range Oven Microwave Light Bulb Lamp Holder Socket
19WB36X10003 GE Oven 40W 130V Light Bulb
20GEN WB56X10112
21WB6X486 GE Microwave Range Vent Hood Grease Filter
22WB36X10071 GE Oven Microwave Glass Lamp Light Lens Cover
23COVER LAMP
26WB27X10170 GE Oven Capacitor
27GEN WB27X10194
28GEN WB06X10127
29WB24X829 GE Oven Microwave Secondary Micro Switch
30WB24X830 GE Oven Door Switch
31LEVER-S/W
33GEN WB18X10055
37GEN WB06X10130
38BUTTON-LOCK
39GEN WB06X10223
40GEN WB06X10138
42GEN WB06X10132
43M/W TURNTABLE MOTOR
45GEN WB06X10147
46GEN WB06X10050
47WB27X10928 GE Oven Line Fuse
49WB27X10240 GE Oven High Voltage Capacitor
50WB27X1160 GE Microwave High Voltage Diode
51GEN WB06X10118
52WB06X10129 GE Oven Damper Cover
53WB06X10436 GE Oven Hood Damper Assembly
54GEN WB06X10165
55WB01X10071 GE Oven Holder Assembly
56GEN WB06X10122
57POWER CORD ASM
58GEN WB56X10145
59MOTOR-VENTILATION
60WB26X10037 GE Oven Stirrer Motor
61WB27X10195 GE Oven Thermostat
62WB27X1170 GE Oven Gas Sensor
63WB6X549 GE Oven Holder Sensor A02
64GEN WB18X10057
68BRACKET-DUCT UPPER ASM
69WB01X10065 GE Oven Flange Nut
70GEN WB07X10274
71GEN WB01X10069
72GEN WB01X10064
73WB49X10226 GE Microwave Oven Magnetron Diode Stirrer Assembly
74GEN WB27X10166
75GEN WB27X10254
77WB27X1127 RANGE THERMAL FUSE
79WB26X10105 GE Oven Fan Motor Assembly
82WIRE RACK ASM
83GEN WB56X10084
84WB06X10139 GE Oven Rack Guide Assembly
85WB39X10003 GE Oven Microwave Glass Cooking Tray
86HARD WARE ASS'Y
88GEN WB18X10076
89WB01X10084 GE Oven Washer Screw
90SCREW-LAMP SOCKET
91GEN WB06X10167
92GEN WB06X10224
125WB06X10416 GE Oven Stirrer Assembly
1800GEN WB55X10215
9999GEN 31-20925
9999GEN 49-40083
