JVM1653BH03 MICROWAVE

JVM1653BH03 MICROWAVE

Written by

in

JVM1653BH03 MICROWAVE

Products

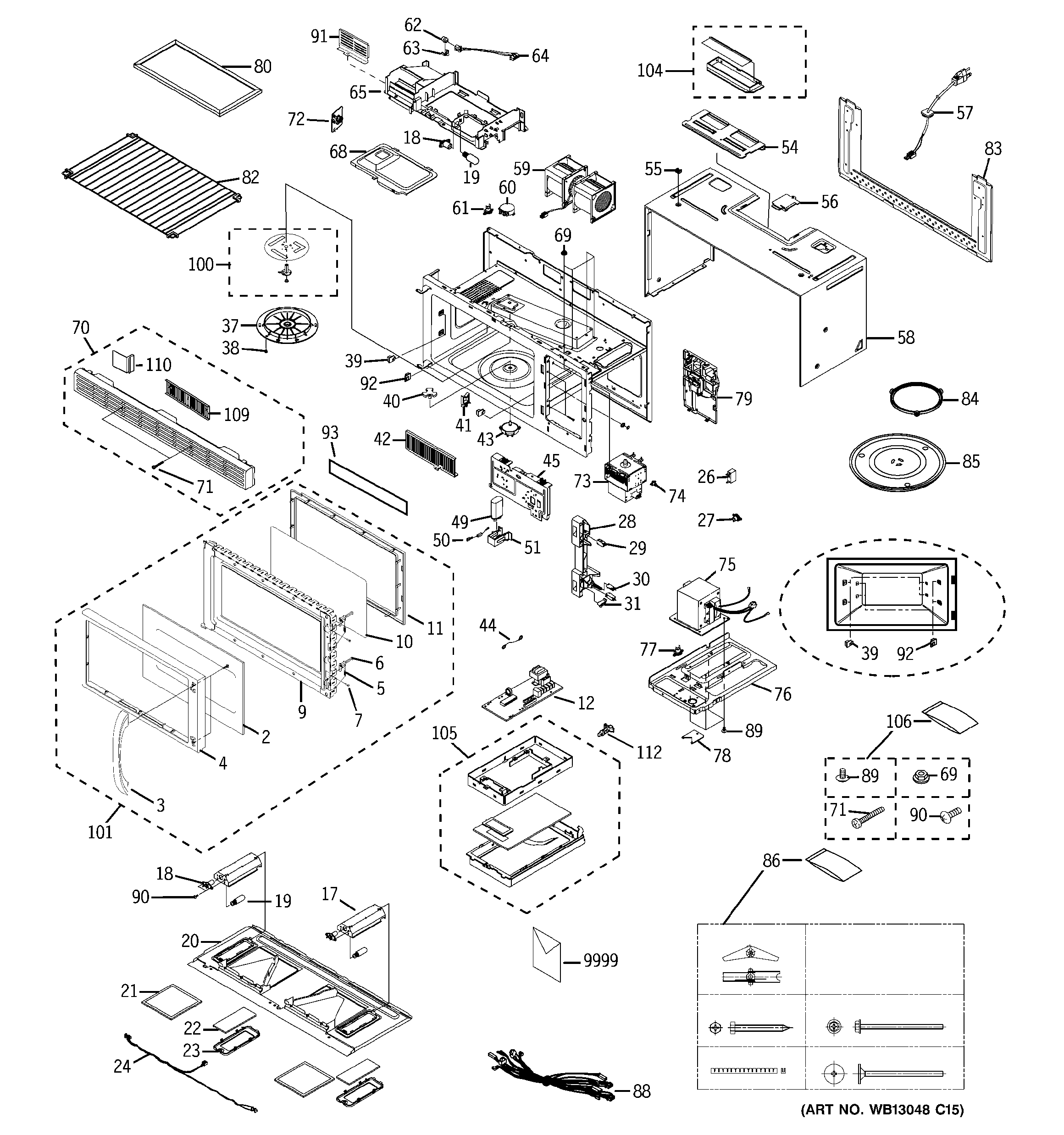

Position	Product
2	GEN WB36X10282
3	HANDLE BK
4	GEN WB55X10530
5	GEN WB05X10006
6	GEN WB05X10007
7	WB06X10060 GE Oven Hinge Pin
9	GEN WB55X10531
10	GEN WB36X10068
11	GEN WB55X10532
12	SMARTBOARD
17	GEN WB06X10296
18	WB08X10016 GE Range Oven Microwave Light Bulb Lamp Holder Socket
19	WB36X10003 GE Oven 40W 130V Light Bulb
20	GEN WB56X10266
21	WB6X486 GE Microwave Range Vent Hood Grease Filter
22	GEN WB36X10167
23	COVER-GLASS
24	GEN WB18X10193
26	WB27X10170 GE Oven Capacitor
27	GEN WB27X10194
28	GEN WB06X10289
29	WB24X829 GE Oven Microwave Secondary Micro Switch
30	WB24X830 GE Oven Door Switch
31	LEVER-S/W
37	GEN WB06X10130
38	BUTTON-LOCK
39	GEN WB06X10223
40	WB06X10420 GE Oven Turntable Coupling
41	WB01X10118 GE Saddle Wire
42	GEN WB06X10132
43	M/W TURNTABLE MOTOR
44	WB18X10122 GE Oven Wire GND Printed Circuit Board
45	GEN WB06X10147
49	WB27X10011 GE Microwave Capacitor
50	WB27X1160 GE Microwave High Voltage Diode
51	GEN WB06X10118
54	GEN WB06X10165
55	WB01X10071 GE Oven Holder Assembly
56	GEN WB06X10122
57	POWER CORD ASM
58	GEN WB56X10267
59	MOTOR-VENTILATION
60	WB26X10037 GE Oven Stirrer Motor
61	WB27X10195 GE Oven Thermostat
62	WB27X1170 GE Oven Gas Sensor
63	WB6X549 GE Oven Holder Sensor A02
64	GEN WB18X10057
65	GEN WB27X10422
68	BRACKET-DUCT UPPER ASM
69	WB01X10065 GE Oven Flange Nut
70	WB07X10530 GE Microwave Grille Assembly
71	SCREW-GRILLE
72	WB02X11200 GE Noise Filter Assembly
73	WB27X10017 GE Microwave Oven Magnetron
74	GEN WB27X10166
75	GEN WB27X10133
76	GEN WB56X10212
77	WB27X1127 RANGE THERMAL FUSE
78	COVER TCO BOTTOM
79	WB26X10105 GE Oven Fan Motor Assembly
80	CHARCOAL FILTER(OPTIONA)
82	WIRE RACK ASM
83	GEN WB56X10260
84	WB06X10139 GE Oven Rack Guide Assembly
85	WB39X10003 GE Oven Microwave Glass Cooking Tray
86	GEN WB01X10181
88	GEN WB18X10296
89	GEN WB01X10100
90	SCREW-LAMP SOCKET
91	GEN WB06X10434
92	GEN WB06X10224
93	GEN 49-40272
100	WB06X10416 GE Oven Stirrer Assembly
101	GEN WB56X10511
104	WB06X10436 GE Oven Hood Damper Assembly
105	GEN WB07X10802
106	GEN WB06X10435
109	GEN WB06X10443
110	GEN WB06X10439
112	WB4X175 GE Oven Printed Circuit Board Support
9999	GEN 49-40525
9999	GEN 49-40524
9999	GEN 31-40004
9999	GEN 49-40247
9999	GEN 49-40341
