JVM1661BB005 MICROWAVE

JVM1661BB005 MICROWAVE

Written by

in

JVM1661BB005 MICROWAVE

Products

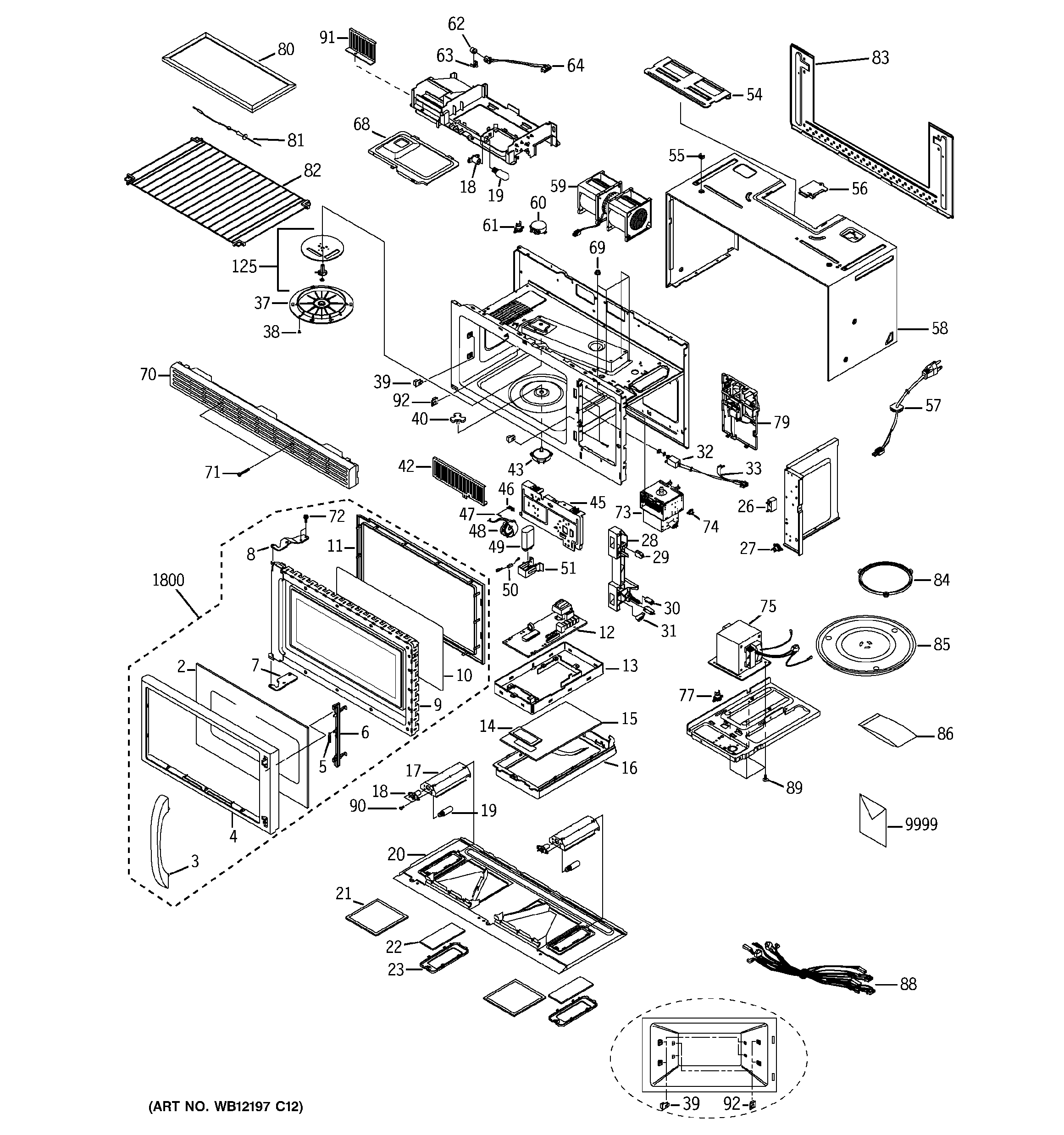

Position	Product
2	GEN WB36X10103
3	HANDLE
4	DOOR – A
5	GEN WB09X10008
6	GEN WB10X10018
7	HINGE- LOWER
8	HINGE- UPPER
9	GEN WB55X10218
10	GEN WB36X10068
11	GEN WB55X10137
12	PCB MAIN ASS'Y
13	ASSY-BKT C/PANEL
14	GEN WB36X10070
15	GEN WB27X10265
16	CONTROL PANEL
17	GEN WB06X10296
18	WB08X10016 GE Range Oven Microwave Light Bulb Lamp Holder Socket
19	WB36X10003 GE Oven 40W 130V Light Bulb
20	GEN WB56X10115
21	WB6X486 GE Microwave Range Vent Hood Grease Filter
22	GEN WB36X10167
23	COVER LAMP
26	WB27X10170 GE Oven Capacitor
27	GEN WB27X10194
28	GEN WB06X10127
29	WB24X829 GE Oven Microwave Secondary Micro Switch
30	WB24X830 GE Oven Door Switch
31	LEVER-S/W
32	GEN WB20X10008
33	WIRE HARNESS-B
37	GEN WB06X10130
38	BUTTON-LOCK
39	GEN WB06X10223
40	GEN WB06X10138
42	GEN WB06X10132
43	M/W TURNTABLE MOTOR
45	GEN WB06X10147
46	GEN WB06X10050
47	WB27X10928 GE Oven Line Fuse
48	GEN WB06X10141
49	WB27X10011 GE Microwave Capacitor
50	WB27X1160 GE Microwave High Voltage Diode
51	GEN WB06X10118
54	GEN WB06X10165
55	WB01X10071 GE Oven Holder Assembly
56	GEN WB06X10122
57	POWER CORD ASM
58	GEN WB56X10116
59	MOTOR-VENTILATION
60	WB26X10037 GE Oven Stirrer Motor
61	WB27X10195 GE Oven Thermostat
62	WB27X1170 GE Oven Gas Sensor
63	WB6X549 GE Oven Holder Sensor A02
64	GEN WB18X10057
68	BRACKET-DUCT UPPER ASM
69	WB01X10065 GE Oven Flange Nut
70	ASSY-GRILLE
71	SCREW-GRILLE
72	GEN WB01X10064
73	WB49X10226 GE Microwave Oven Magnetron Diode Stirrer Assembly
74	GEN WB27X10166
75	GEN WB27X10133
77	WB27X1127 RANGE THERMAL FUSE
79	WB26X10105 GE Oven Fan Motor Assembly
80	GEN WB06X10137
81	SENSOR-THERMISTOR
82	WIRE RACK ASM
83	GEN WB56X10260
84	WB06X10139 GE Oven Rack Guide Assembly
85	WB39X10003 GE Oven Microwave Glass Cooking Tray
86	HARD WARE ASS'Y
88	GEN WB18X10120
89	WB01X10084 GE Oven Washer Screw
90	SCREW-LAMP SOCKET
91	GEN WB06X10167
92	GEN WB06X10224
125	WB06X10416 GE Oven Stirrer Assembly
1800	GEN WB55X10220
9999	REAR WALL TEMPLATE
9999	GEN 49-40084
9999	GEN 49-40134-2
9999	GEN 31-20925
