JVM1840DR1BB MICROWAVE

JVM1840DR1BB MICROWAVE

Written by

in

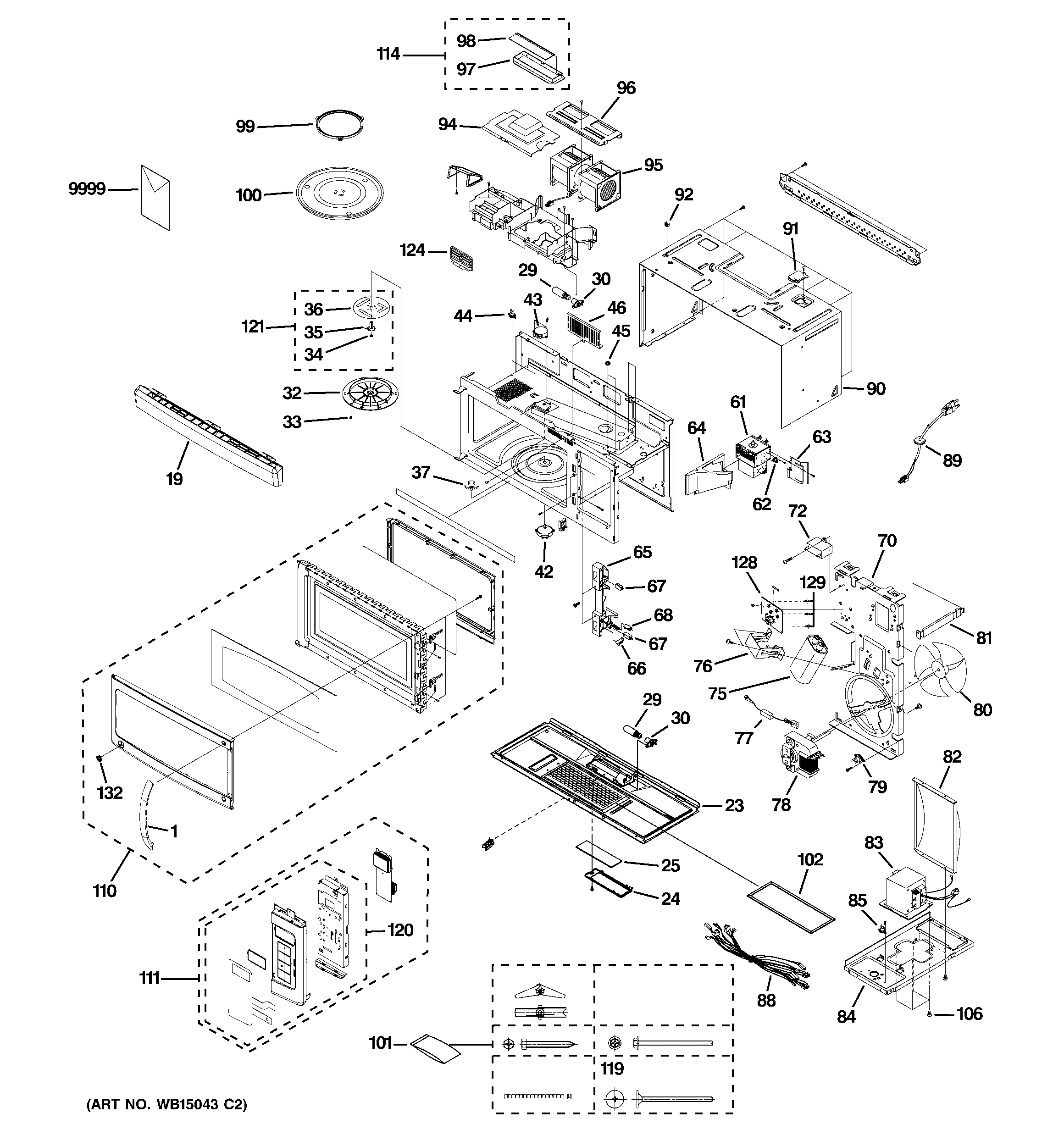

JVM1840DR1BB MICROWAVE

Products

PositionProduct
1GEN WB15X10220
1GEN 49-40637
1GEN WB15X10219
19GEN WB07X11022
19GEN WB07X11019
23GEN WB56X10708
23GEN WB56X10712
24WB36X10217 GE Oven Glass Cover
24WB36X10216 GE Oven Glass Cover
25WB36X10071 GE Oven Microwave Glass Lamp Light Lens Cover
29WB36X10003 GE Oven 40W 130V Light Bulb
30WB08X10016 GE Range Oven Microwave Light Bulb Lamp Holder Socket
32GEN WB06X10130
33BUTTON-LOCK
34GEN WB06X10340
35GEN WB06X10286
36GEN WB06X10831
37GEN WB06X10144
42TURNTABLE MOTOR
43WB26X10037 GE Oven Stirrer Motor
44GEN WB27X10810
45WB01X10065 GE Oven Flange Nut
46GEN WB06X10760
61WB27X10880 GE Oven Magnetron
62GEN WB27X10166
63WB06X10759 GE Oven Mounting Bracket
64GEN WB06X10295
65MICROWAVE LATCH BODY
66LEVER-S/W
67WB24X829 GE Oven Microwave Secondary Micro Switch
68WB24X830 GE Oven Door Switch
70GEN WB06X10464
72WB27X10170 GE Oven Capacitor
75WB27X10240 GE Oven High Voltage Capacitor
76GEN WB06X10287
77WB27X10597 GE Oven Diode
78GEN WB26X10089
79GEN WB27X10194
80WB26X10254 GE Oven Fan Blade
81GEN WB06X10284
82GEN WB26X10092
83WB20X10043 GE Oven High Voltage Transformer
84GEN WB25X10022
85WB27X1127 RANGE THERMAL FUSE
88GEN WB18X10483
89GEN WB18X10200
90GEN WB56X10713
90GEN WB56X10709
91GEN WB06X10122
92WB01X10071 GE Oven Holder Assembly
94GEN WB06X10446
95GEN WB26X10255
96GEN WB06X10714
97WB06X10436 GE Oven Hood Damper Assembly
98GEN WB06X10715
99GEN WB06X10001
100WB49X10063 GE Oven Cooking Tray
101GEN WB01X10181
102WB06X10596 GE Grease Filter Replacement
106WB01X10084 GE Oven Washer Screw
110GEN WB56X10711
110GEN WB56X10710
111GEN WB56X10932
111GEN WB56X10934
114GEN WB06X10826
119WB01X10180 GE Oven Flat Bolt
120GEN WB56X10933
120GEN WB56X10935
121GEN WB06X10331
124GEN WB02X11297
128WB02X11200 GE Noise Filter Assembly
129WB4X175 GE Oven Printed Circuit Board Support
132GEN WB03X10306
9999GEN 49-40336
9999GEN 31-41022
