JVM1842CF001 MICROWAVE

JVM1842CF001 MICROWAVE

Written by

in

JVM1842CF001 MICROWAVE

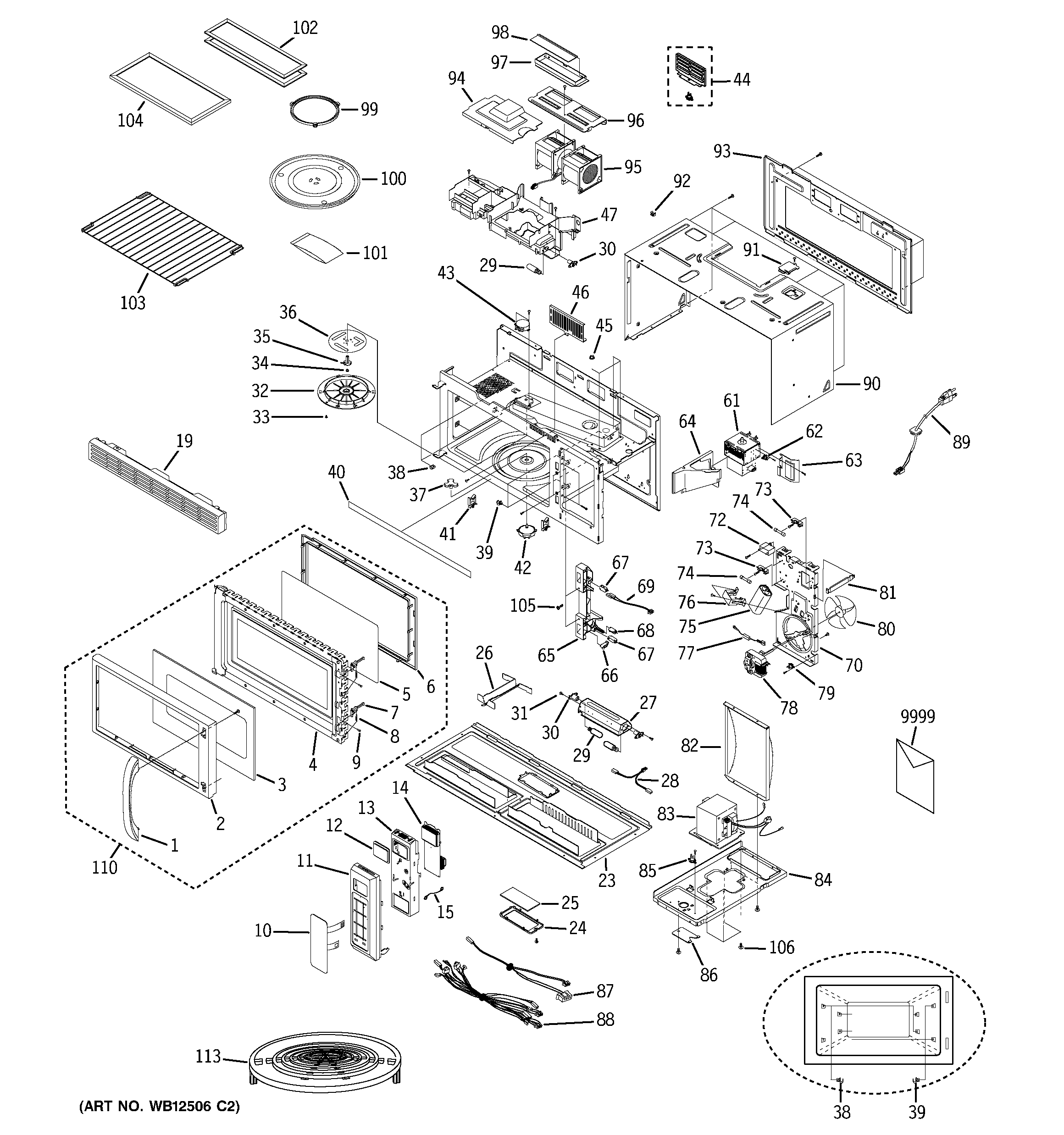

Products

Position	Product
1	GEN WB15X10066
2	DOOR-A
3	GEN WB36X10201
4	GEN WB55X10444
5	GEN WB06X10332
6	GEN WB55X10445
7	GEN WB05X10005
8	GEN WB05X10006
9	WB06X10060 GE Oven Hinge Pin
10	GEN WB27X10641
11	GEN WB07X10419
12	WINDOW-DISPLAY
13	BKT C/PANEL ASSY
14	GEN WB27X10602
15	GEN WB18X10139
19	GRILLE ASS'Y
23	GEN WB56X10287
24	WB36X10217 GE Oven Glass Cover
25	WB36X10071 GE Oven Microwave Glass Lamp Light Lens Cover
26	GEN WB06X10444
27	GEN WB06X10445
28	GEN WB18X10195
29	WB36X10003 GE Oven 40W 130V Light Bulb
30	WB08X10016 GE Range Oven Microwave Light Bulb Lamp Holder Socket
31	SCREW-LAMP SOCKET
32	GEN WB06X10130
33	BUTTON-LOCK
34	GEN WB06X10340
35	GEN WB06X10286
36	WB06X10416 GE Oven Stirrer Assembly
37	GEN WB06X10144
38	GEN WB06X10223
39	GEN WB06X10224
40	GEN 49-40173-1
41	WB01X10118 GE Saddle Wire
42	M/W TURNTABLE MOTOR
43	WB26X10037 GE Oven Stirrer Motor
44	GEN WB49X10145
45	WB01X10065 GE Oven Flange Nut
46	GEN WB06X10290
47	GEN WB26X10091
61	WB27X10017 GE Microwave Oven Magnetron
62	GEN WB27X10166
63	GEN WB06X10325
64	GEN WB06X10295
65	GEN WB06X10289
66	LEVER-S/W
67	WB24X829 GE Oven Microwave Secondary Micro Switch
68	WB24X830 GE Oven Door Switch
69	GEN WB18X10055
70	GEN WB06X10292
72	WB27X10170 GE Oven Capacitor
73	GEN WB06X10050
74	WB27X10928 GE Oven Line Fuse
75	WB27X10011 GE Microwave Capacitor
76	GEN WB06X10287
77	WB27X1160 GE Microwave High Voltage Diode
78	GEN WB26X10089
79	GEN WB27X10194
80	GEN WB26X10090
81	GEN WB06X10284
82	GEN WB26X10092
83	GEN WB27X10605
84	GEN WB56X10191
85	WB27X1127 RANGE THERMAL FUSE
86	COVER TCO BOTTOM
87	GEN WB18X10196
88	GEN WB18X10197
89	POWER CORD ASM
90	PANEL OUTER
91	GEN WB06X10122
92	WB01X10071 GE Oven Holder Assembly
93	GEN WB56X10260
94	GEN WB06X10446
95	MOTOR-VENTILATION
96	GEN WB06X10165
97	WB06X10436 GE Oven Hood Damper Assembly
98	WB06X10129 GE Oven Damper Cover
99	WB02X10838 GE Oven Guide Roller Assembly
100	WB49X10063 GE Oven Cooking Tray
101	HARD WARE ASS'Y
102	WB06X10288 GE Replacement Grease Filter
103	GEN WB48X10016
104	WB02X10733 GE Replacement Charcoal Filter
105	GEN WB01X10119
106	WB01X10084 GE Oven Washer Screw
110	GEN WB55X10409
113	GEN WB49X10098
9999	GEN 31-40005
9999	GEN 49-4023
9999	GEN 49-40154-2
9999	GEN 49-40171-5
9999	GEN 49-40137-1
9999	GEN 49-40151-1
