JVM1870CF08 MICROWAVE

JVM1870CF08 MICROWAVE

Written by

in

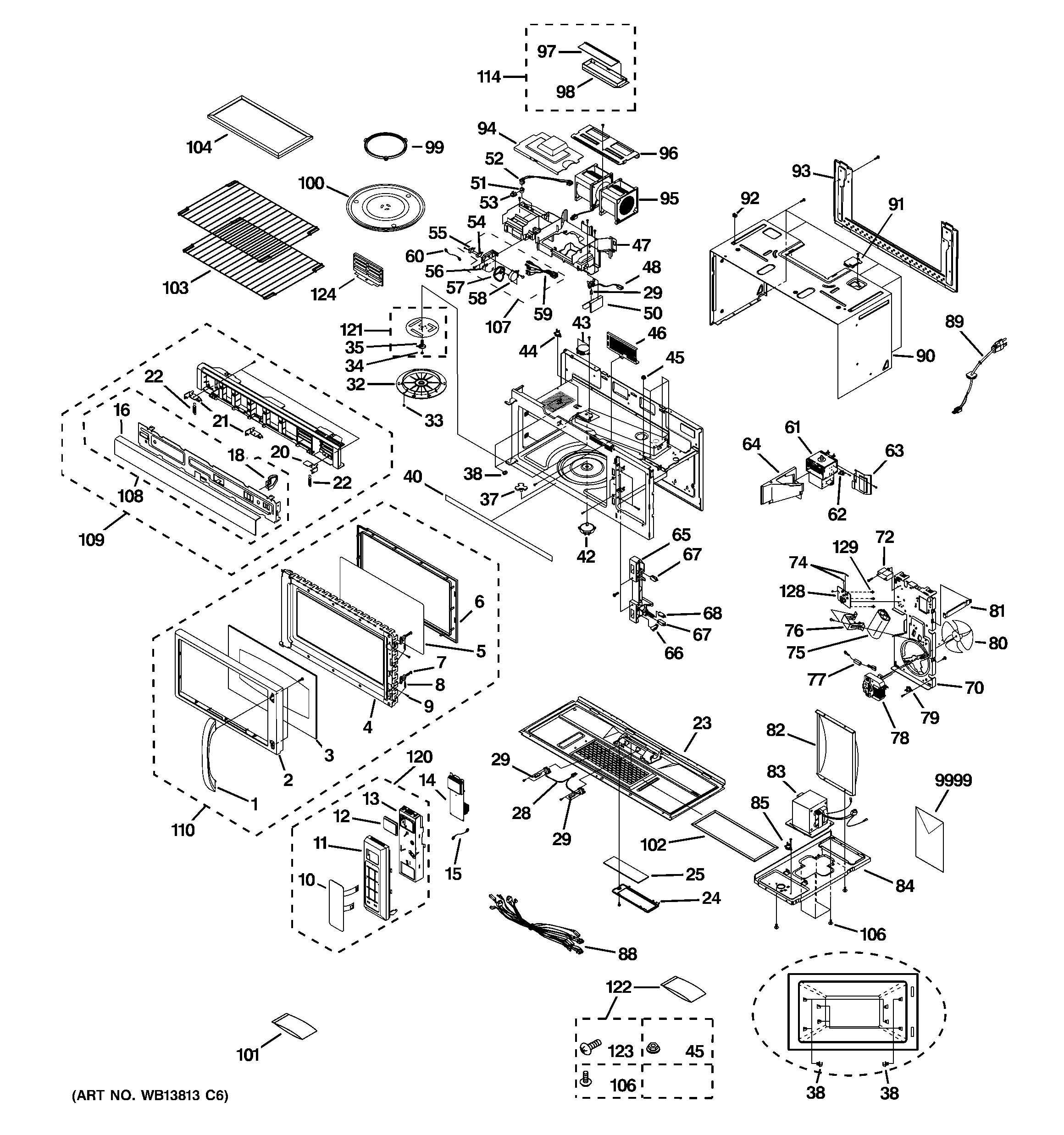

JVM1870CF08 MICROWAVE

Products

Position	Product
1	GEN WB15X10097
2	DOOR-A
3	GEN WB36X10233
4	GEN WB55X10444
5	GEN WB06X10332
6	GEN WB55X10445
7	GEN WB05X10005
8	GEN WB05X10006
9	WB06X10060 GE Oven Hinge Pin
10	GEN WB27X10678
11	GEN WB07X10419
12	WINDOW-DISPLAY
13	BKT C/PANEL ASSY
14	GEN WB27X10947
15	GEN WB18X10139
16	GEN WB06X10451
18	BRACKET-BARRIER GRILLE
20	HINGE-GRILLE (R)
21	GEN WB02X10755
22	GEN WB09X10018
23	GEN WB56X10683
24	WB36X10217 GE Oven Glass Cover
25	WB36X10071 GE Oven Microwave Glass Lamp Light Lens Cover
28	SOCKET LAMP
29	WB36X10213 GE Oven 20W Halogen Bulb Replacement
32	GEN WB06X10130
33	BUTTON-LOCK
34	GEN WB06X10340
35	GEN WB06X10286
37	GEN WB06X10144
38	WB06X10521 GE Oven Rack Holder
40	GEN 40-40175-1
42	WB26X10208 GE Oven Turntable Motor
43	WB26X10037 GE Oven Stirrer Motor
44	GEN WB27X10810
45	WB01X10065 GE Oven Flange Nut
46	GEN WB06X10290
47	GEN WB26X10091
48	GEN WB08X10027
50	GEN WB06X10447
51	WB24X799 GE Oven Gas Sensor
52	GEN WB18X10057
53	WB6X549 GE Oven Holder Sensor A02
54	SWITCH-MICRO
55	SWITCH-MICRO
56	BRACKET-CAM PLATE
57	CAM-LOUVER
58	MOTOR-DRIVE
59	GEN WB18X10203
60	GEN WB18X10140
61	WB27X10880 GE Oven Magnetron
62	GEN WB27X10166
63	GEN WB06X10325
64	GEN WB06X10295
65	MICROWAVE LATCH BODY
66	LEVER-S/W
67	WB24X829 GE Oven Microwave Secondary Micro Switch
68	WB24X830 GE Oven Door Switch
70	GEN WB06X10464
72	WB27X10170 GE Oven Capacitor
74	WB27X10928 GE Oven Line Fuse
75	WB27X10011 GE Microwave Capacitor
76	GEN WB06X10287
77	WB27X10597 GE Oven Diode
78	GEN WB26X10089
79	GEN WB27X10194
80	GEN WB26X10090
81	GEN WB06X10284
82	GEN WB26X10092
83	WB27X10867 GE Oven High Voltage Transformer D05
84	GEN WB56X10690
85	WB27X1127 RANGE THERMAL FUSE
88	WIRE HARNESS – A
89	GEN WB18X10200
90	PANEL OUTER
91	GEN WB06X10122
92	WB01X10071 GE Oven Holder Assembly
93	GEN WB56X10260
94	GEN WB06X10446
95	WB26X10210 GE Oven Ventilation Motor
96	GEN WB06X10165
97	WB06X10436 GE Oven Hood Damper Assembly
98	WB06X10129 GE Oven Damper Cover
99	GEN WB06X10001
100	WB49X10063 GE Oven Cooking Tray
101	GEN WB01X10181
102	WB06X10596 GE Grease Filter Replacement
103	GEN WB48X10052
104	WB02X10733 GE Replacement Charcoal Filter
106	WB01X10084 GE Oven Washer Screw
107	CAM LOUVER ASM
108	GEN WB36X10173
109	GEN WB07X10420
110	GEN WB56
