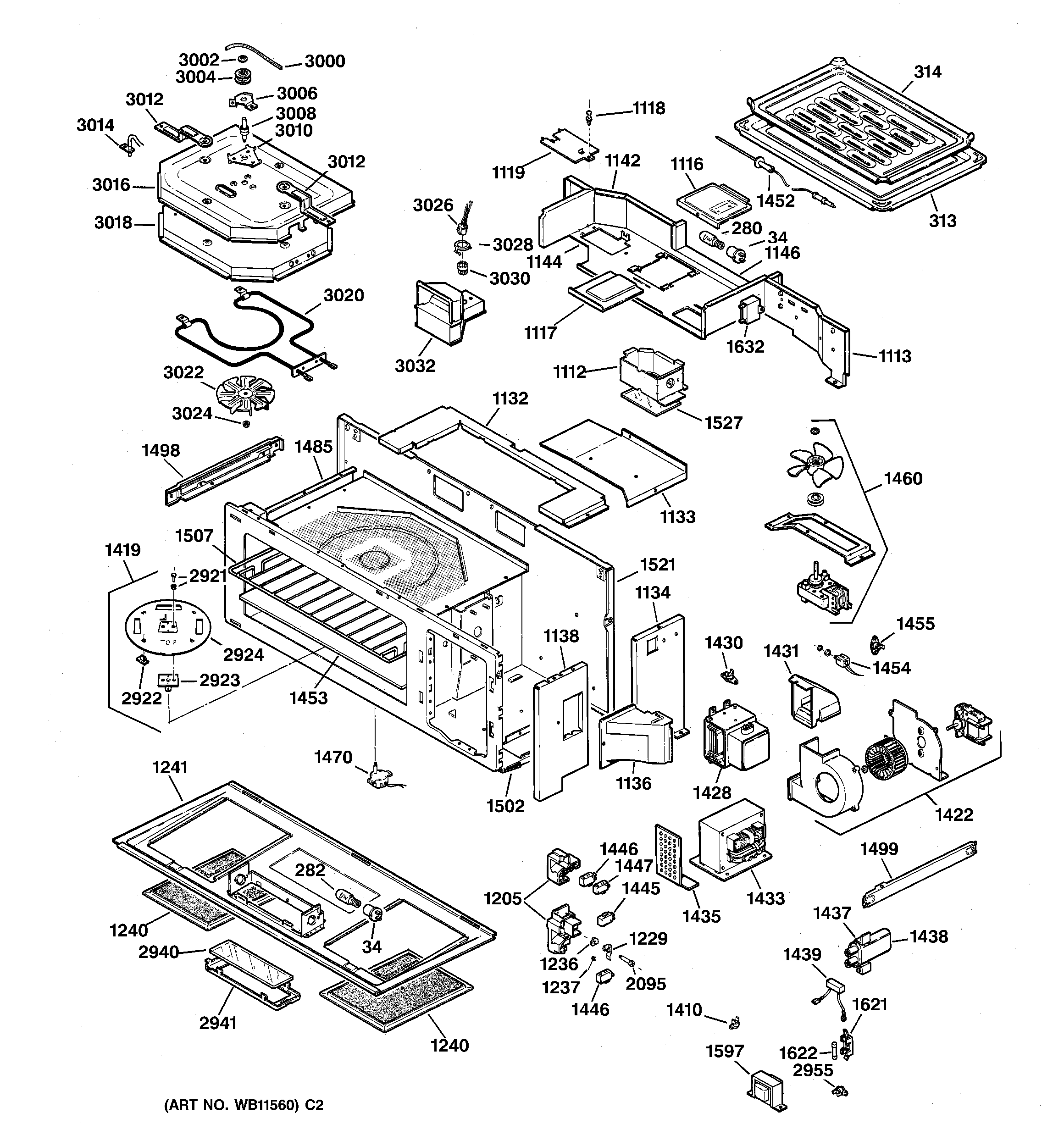

JVM290BV01 BOTTOM PLATE, INTERNAL PARTS & MOUNTING BRACKET

JVM290BV01 BOTTOM PLATE, INTERNAL PARTS & MOUNTING BRACKET

Written by

in

JVM290BV01 BOTTOM PLATE, INTERNAL PARTS & MOUNTING BRACKET

Products

PositionProduct
34RECEPTACLE-LAMP-COOK TOP
280WB36X10003 GE Oven 40W 130V Light Bulb
313GEN WB49X0664
314GEN WB49X0665
1112GEN WB04X0128
1113GEN WB06X0013
1116GEN WB04X0129
1117GEN WB06X0014
1118GEN WB01X1465
1119GEN WB06X0308
1132GEN WB06X0016
1133GEN WB06X0056
1134GEN WB06X0052
1136GEN WB06X0053
1138GEN WB06X0051
1138GEN WB06X0312
1142GEN WB06X0010
1144GEN WB06X0011
1146GEN WB06X0012
1205GEN WB06X0048
1205GEN WB06X0049
1229GEN WB02X4261
1236GEN WB02X4260
1237GEN WB09X0199
1240WB6X60 GE Microwave Air Filter
1240GEN WB02X4267
1241GEN WB56X2114
1410WB27X1127 RANGE THERMAL FUSE
1419GEN WB06X0310
1422GEN WB26X0130
1428WB27X10585 GE Oven Magnetron
1430GEN WB21X0486
1431GEN WB06X0057
1433GEN WB27X1041
1435BARRIER-HV TRANSFORMER
1437GEN WB06X0064
1438WB27X10240 GE Oven High Voltage Capacitor
1439WB27X1160 GE Microwave High Voltage Diode
1445WB24X830 GE Oven Door Switch
1446WB24X829 GE Oven Microwave Secondary Micro Switch
1447GEN WB24X0814
1452GEN WB20X0135
1453GEN WB39X0075
1454GEN WB08X0302
1455WB27X10195 GE Oven Thermostat
1460GEN WB26X0129
1470GEN WB26X0154
1485GEN WB06X0040
1498GEN WB06X0311
1499GEN WB06X0055
1502GEN WB56X2113
1507WB4X174 GE Oven Rack Spacer
1507GEN WB48X0221
1521GEN WB56X2053
1527GEN WB06X0037
1597GEN WB27X1042
1621GEN WB06X0234
1622WB27X7 GE Oven Fuse
1632WB27X10170 GE Oven Capacitor
2095GEN WB01X0721
2921GEN WB06X0042
2922GEN WB06X0313
2923GEN WB06X0314
2924GEN WB06X0045
2940GEN WB36X0820
2941GEN WB36X0829
2955THERMOSTAT
3000GEN WB06X0063
3002GEN WB01X1415
3004GEN WB06X0019
3006GEN WB06X0375
3008GEN WB06X0374
3008GEN WB06X0022
3010GEN WB06X0023
3012GEN WB06X0024
3014GEN WB27X0596
3016GEN WB06X0025
3018GEN WB06X0027
3020GEN WB45X0068
3022GEN WB06X0028
3024GEN WB01X1416
3026GEN WB18X0537
3028GEN WB06X0309
3030WB24X799 GE Oven Gas Sensor
3032GEN WB06X0034
