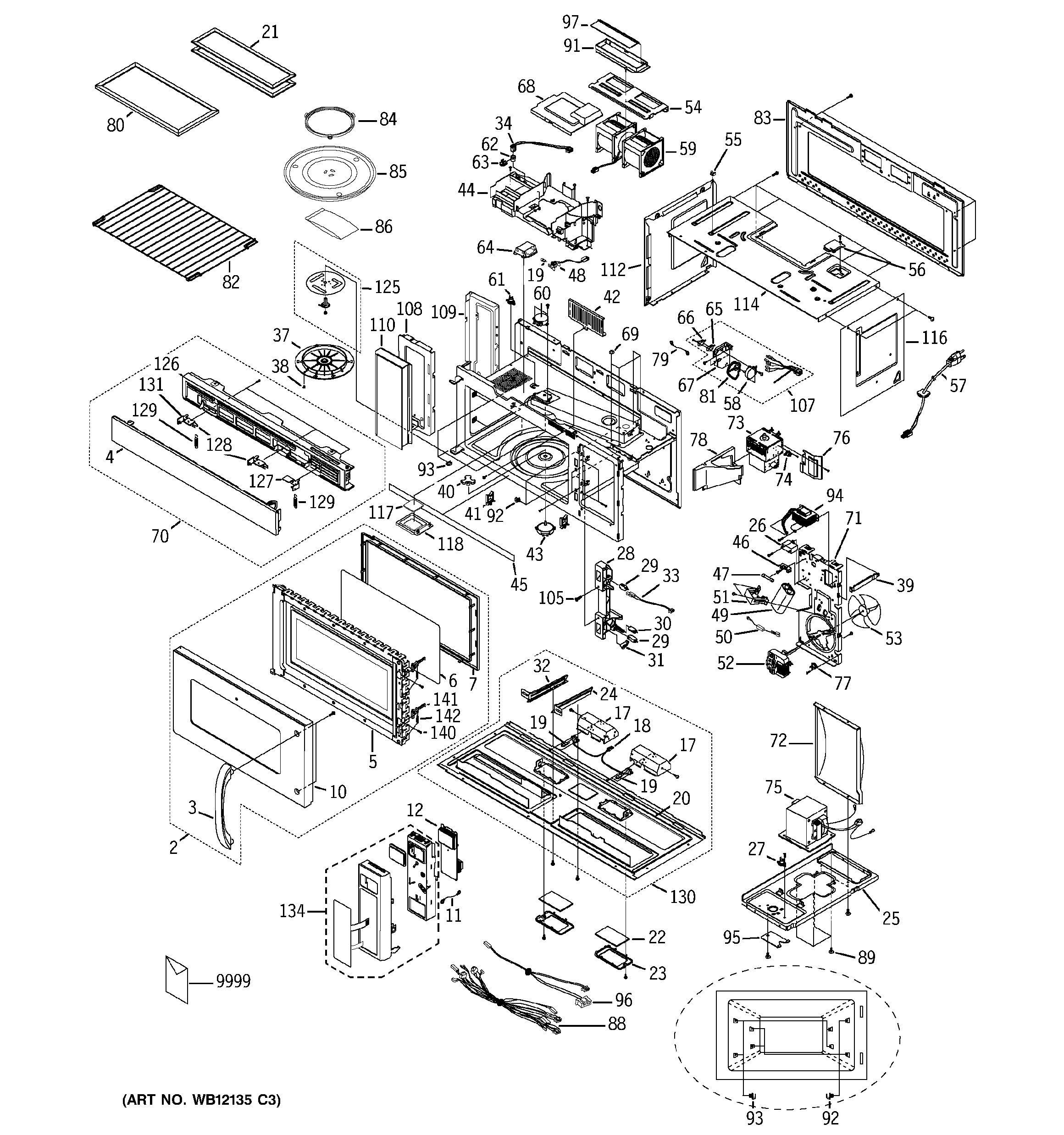

JVM3660WD001 MICROWAVE

JVM3660WD001 MICROWAVE

Written by

in

JVM3660WD001 MICROWAVE

Products

Position	Product
2	GEN WB55X10437
3	GEN WB15X10072
4	GEN WB36X10184
5	GEN WB55X10438
6	GEN WB06X10332
7	CHOKE COVER
10	GEN WB55X10447
11	GEN WB18X10139
12	GEN WB27X10438
17	GEN WB06X10282
18	GEN WB08X10020
19	WB36X10163 GE Halogen Lamp 10W 12V G4 2 Pin Base
20	GEN WB56X10213
21	WB06X10288 GE Replacement Grease Filter
22	GEN WB36X10167
23	COVER-GLASS
24	GEN WB06X10330
25	BASE PLATE-SUB ASM
26	WB27X10170 GE Oven Capacitor
27	WB27X1127 RANGE THERMAL FUSE
28	GEN WB06X10289
29	WB24X829 GE Oven Microwave Secondary Micro Switch
30	WB24X830 GE Oven Door Switch
31	LEVER-S/W
32	BRACKET-ENCLOSURE(L)
33	GEN WB18X10055
34	GEN WB18X10057
37	GEN WB06X10130
38	BUTTON-LOCK
39	GEN WB06X10284
40	GEN WB06X10144
41	WB01X10118 GE Saddle Wire
42	GEN WB06X10290
43	M/W TURNTABLE MOTOR
44	DUCT-UPPER
45	GEN 49-40175
46	GEN WB06X10050
47	WB27X10928 GE Oven Line Fuse
48	GEN WB08X10019
49	WB27X10011 GE Microwave Capacitor
50	WB27X1160 GE Microwave High Voltage Diode
51	GEN WB06X10287
52	GEN WB26X10089
53	GEN WB26X10090
54	GEN WB06X10165
55	WB01X10071 GE Oven Holder Assembly
56	GEN WB06X10122
57	POWER CORD ASM
58	MOTOR-DRIVE
59	GEN WB26X10104
60	WB26X10037 GE Oven Stirrer Motor
61	WB27X10195 GE Oven Thermostat
62	WB27X1170 GE Oven Gas Sensor
63	WB6X549 GE Oven Holder Sensor A02
64	WB36X10169
65	SWITCH-MICRO
66	SWITCH-MICRO
67	BRACKET-CAM PLATE
68	GEN WB06X10326
69	WB01X10065 GE Oven Flange Nut
70	GEN WB07X10441
71	GEN WB06X10292
72	ASSY-DUCT REAR
73	WB27X10017 GE Microwave Oven Magnetron
74	GEN WB27X10166
75	GEN WB27X10133
76	GEN WB06X10325
77	GEN WB27X10194
78	GEN WB06X10295
79	GEN WB18X10140
80	WB02X10733 GE Replacement Charcoal Filter
81	CAM-LOUVER
82	GEN WB48X10016
83	GEN WB56X10215
84	GEN WB06X10001
85	WB49X10063 GE Oven Cooking Tray
86	GEN WB01X10128
88	GEN WB18X10153
89	WB01X10084 GE Oven Washer Screw
91	WB06X10436 GE Oven Hood Damper Assembly
92	GEN WB06X10224
93	GEN WB06X10223
94	GEN WB27X10439
95	COVER TCO BOTTOM
96	GEN WB18X10154
97	WB06X10129 GE Oven Damper Cover
105	GEN WB01X10119
107	GEN WB07X10442
108	GEN WB06X10328
109	GEN WB06X10329
110	GEN WB06X10327
112	GEN WB56X10216
114	GEN WB56X10217
116	GEN WB56X10
