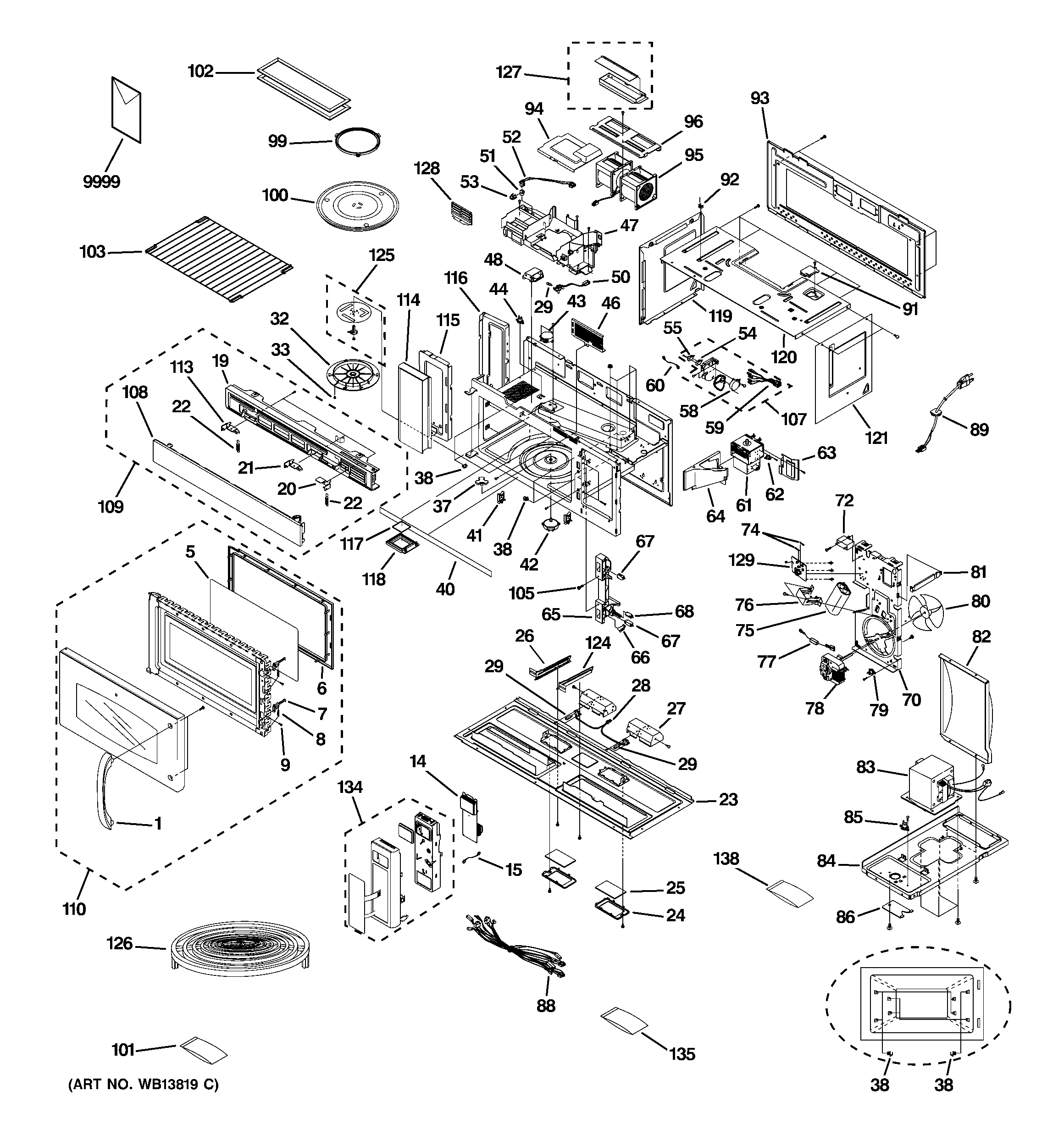

JVM3670BF04 MICROWAVE

JVM3670BF04 MICROWAVE

Written by

in

JVM3670BF04 MICROWAVE

Products

Position	Product
1	GEN WB15X10100
5	GEN WB06X10332
6	GEN WB55X10442
7	GEN WB05X10007
8	GEN WB05X10006
9	WB06X10060 GE Oven Hinge Pin
14	GEN WB27X10604
15	GEN WB18X10139
19	GRILLE SUB ASM
20	HINGE-GRILLE (R)
21	HINGE-GRILLE M
22	SPRING-GRILLE COVER
23	BASE BOTTOM SUB ASM
24	COVER-GLASS
25	GEN WB36X10167
26	BRACKET-ENCLOSURE(L)
27	BRACKET-BOTTOM LAMP
28	SOCKET LAMP
29	WB36X10213 GE Oven 20W Halogen Bulb Replacement
32	GEN WB06X10130
33	BUTTON-LOCK
37	GEN WB06X10144
38	WB06X10521 GE Oven Rack Holder
40	GEN 40-40175-1
41	GEN WB01X10135
42	M/W TURNTABLE MOTOR
43	WB26X10037 GE Oven Stirrer Motor
44	WB27X10195 GE Oven Thermostat
46	GEN WB06X10290
47	DUCT-UPPER
48	WB36X10169
50	GEN WB08X10027
51	WB27X1170 GE Oven Gas Sensor
52	GEN WB18X10057
53	WB6X549 GE Oven Holder Sensor A02
54	SWITCH-MICRO
55	SWITCH-MICRO
58	MOTOR-DRIVE
59	WIRE HARNESS-CAM
60	GEN WB18X10140
61	WB27X10017 GE Microwave Oven Magnetron
62	GEN WB27X10166
63	GEN WB06X10325
64	GEN WB06X10295
65	GEN WB06X10289
66	LEVER-S/W
67	WB24X829 GE Oven Microwave Secondary Micro Switch
68	WB24X830 GE Oven Door Switch
70	GEN WB06X10464
72	WB27X10170 GE Oven Capacitor
74	WB27X10928 GE Oven Line Fuse
75	WB27X10011 GE Microwave Capacitor
76	GEN WB06X10287
77	WB27X1160 GE Microwave High Voltage Diode
78	GEN WB26X10089
79	GEN WB27X10194
80	GEN WB26X10090
81	GEN WB06X10284
82	ASSY-DUCT REAR
83	GEN WB27X10605
84	BASE PLATE-SUB ASM
85	WB27X1127 RANGE THERMAL FUSE
86	COVER TCO BOTTOM
88	GEN WB18X10285
89	GEN WB18X10200
91	GEN WB06X10122
92	WB01X10071 GE Oven Holder Assembly
93	GEN WB56X10215
94	GEN WB06X10326
95	GEN WB26X10104
96	GEN WB06X10165
99	GEN WB06X10001
100	WB49X10063 GE Oven Cooking Tray
101	GEN WB01X10128
102	WB06X10288 GE Replacement Grease Filter
103	GEN WB48X10052
105	GEN WB01X10119
107	GEN WB07X10442
108	COVER GRILLE ASM
109	GRILLE ASM
110	GEN WB56X10347
113	GEN WB02X10755
114	DECORATION ASM
115	GEN WB06X10328
116	GEN WB06X10329
117	GEN WB36X10185
118	GEN WB36X10186
119	GEN WB56X10290
120	GEN WB56X10291
121	GEN WB56X10292
124	GEN WB06X10330
125	GEN WB06X10331
126	GEN WB49X10098
127	GEN WB06X
