JVM3670CF10 MICROWAVE

JVM3670CF10 MICROWAVE

Written by

in

JVM3670CF10 MICROWAVE

Products

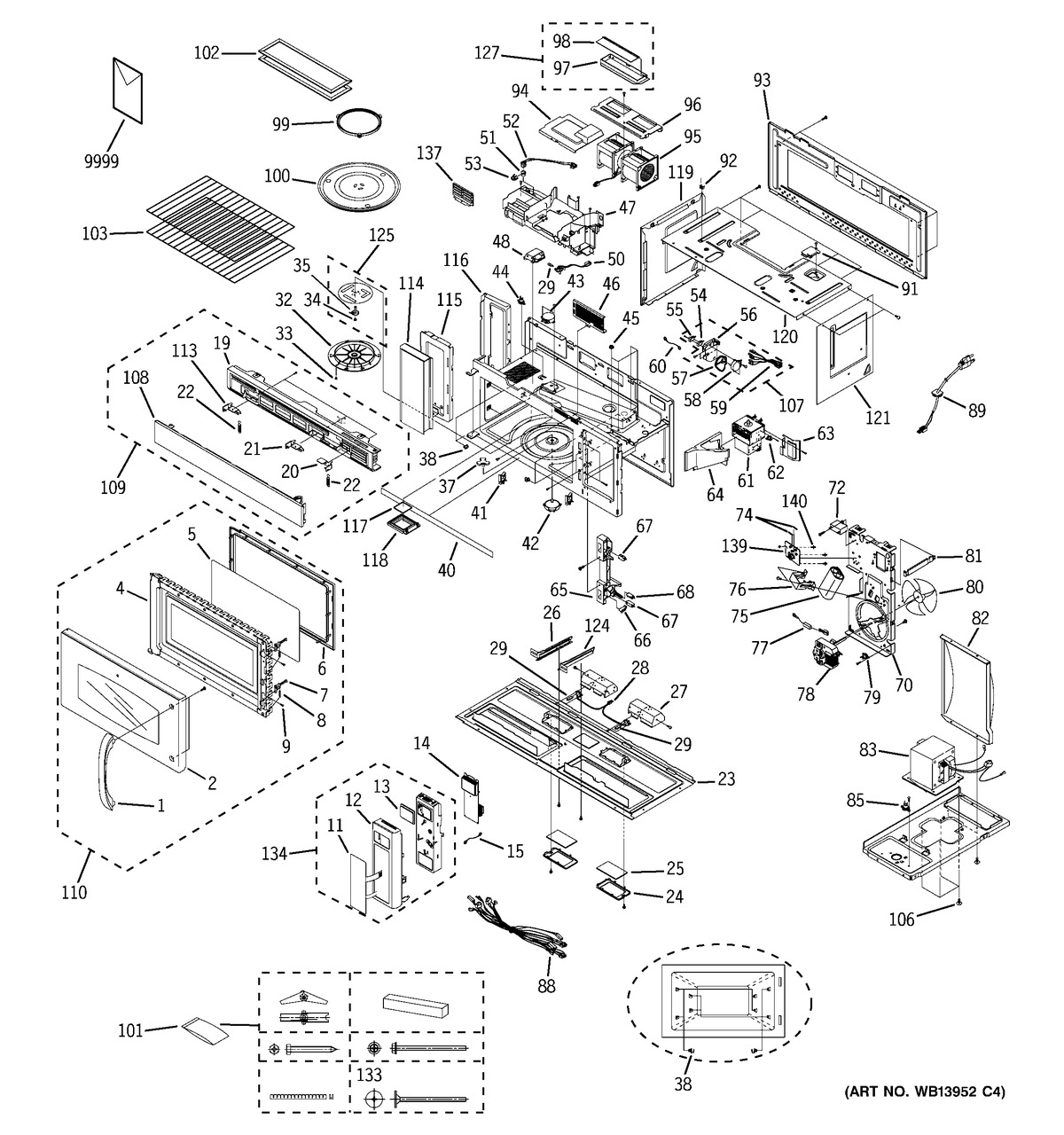

Position	Product
1	HANDLE
1	GEN WB15X10100
1	GEN WB15X10101
2	DOOR OUTER FRAME
2	GEN WB55X10603
2	GEN WB55X10602
4	GEN WB55X10441
4	GEN WB55X10854
4	GEN WB55X10444
5	GEN WB06X10332
6	GEN WB55X10445
6	GEN WB55X10442
6	CHOKE COVER
7	GEN WB05X10005
7	GEN WB05X10007
8	GEN WB05X10006
9	WB06X10060 GE Oven Hinge Pin
11	CONTROL-PANEL
11	GEN WB07X10447
11	GEN WB07X10443
12	WINDOW-DISPLAY
13	BKT C/PANEL ASSY
14	SMART BOARD
15	GEN WB18X10139
19	GEN WB07X10449
19	GRILLE SUB ASM
19	GRILLE SUB ASSY
20	HINGE-GRILLE (R)
21	HINGE-GRILLE M
22	SPRING-GRILLE COVER
23	BASE BOTTOM SUB ASM
23	BASE BOTTOM SUB ASSY
24	COVER-GLASS
24	COVER-GLASS
25	GEN WB36X10167
26	BRACKET-ENCLOSURE(L)
27	BRACKET-BOTTOM LAMP
28	SOCKET LAMP
29	WB36X10213 GE Oven 20W Halogen Bulb Replacement
32	GEN WB06X10130
33	BUTTON-LOCK
34	GEN WB06X10340
35	GEN WB06X10286
37	GEN WB06X10144
38	WB06X10521 GE Oven Rack Holder
40	GEN 40-40175-1
41	WB01X10408 GE Saddle Wire
42	TURNTABLE MOTOR
43	WB26X10037 GE Oven Stirrer Motor
44	GEN WB27X10810
45	WB01X10065 GE Oven Flange Nut
46	GEN WB06X10290
47	DUCT-UPPER
48	WB36X10169
50	GEN WB08X10027
51	WB24X799 GE Oven Gas Sensor
52	GEN WB18X10057
53	WB6X549 GE Oven Holder Sensor A02
54	SWITCH-MICRO
55	SWITCH-MICRO
56	BRACKET-CAM PLATE
57	CAM-LOUVER
58	MOTOR-DRIVE
59	WIRE HARNESS-CAM
60	GEN WB18X10140
61	WB27X10880 GE Oven Magnetron
62	GEN WB27X10166
63	WB06X10759 GE Oven Mounting Bracket
64	GEN WB06X10295
65	MICROWAVE LATCH BODY
66	LEVER-S/W
67	WB24X829 GE Oven Microwave Secondary Micro Switch
68	WB24X830 GE Oven Door Switch
70	GEN WB06X10464
72	WB27X10170 GE Oven Capacitor
74	WB27X10928 GE Oven Line Fuse
75	WB27X10011 GE Microwave Capacitor
76	GEN WB06X10287
77	WB27X10597 GE Oven Diode
78	GEN WB26X10089
79	GEN WB27X10194
80	GEN WB26X10090
81	GEN WB06X10284
82	ASSY-DUCT REAR
83	WB27X10910 GE Oven High Voltage Transformer
85	WB27X1127 RANGE THERMAL FUSE
88	WIRE HARNESS – A
89	GEN WB18X10200
91	GEN WB06X10122
92	WB01X10071 GE Oven Holder Assembly
93	GEN WB56X10215
94	GEN WB06X10326
95	WB26X10210 GE Oven Ventilation Motor
96	GEN WB06
