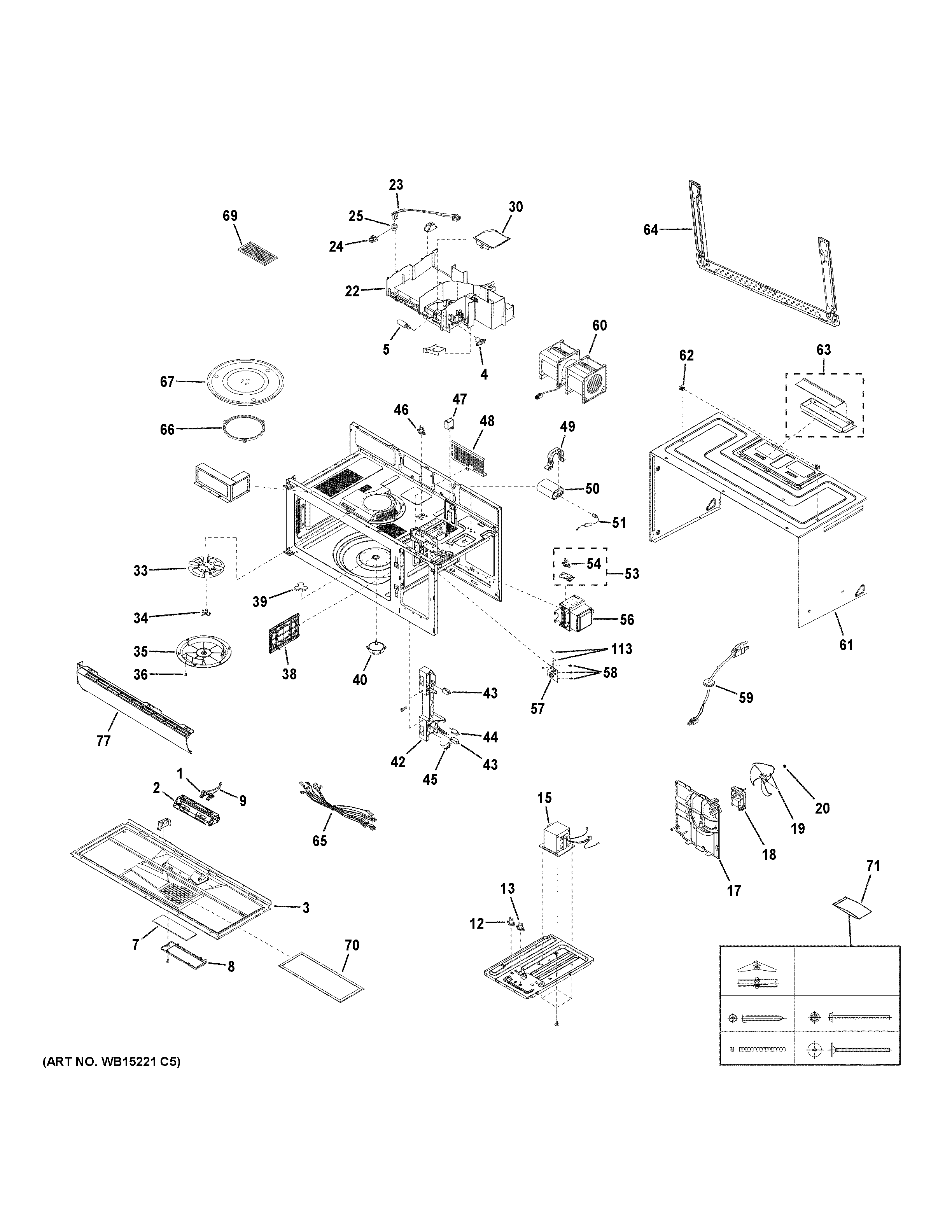

JVM6172DK2BB OVEN CAVITY PARTS

Products

PositionProduct
1WB36X10213 GE Oven 20W Halogen Bulb Replacement
2BRACKET-BOTTOM LAMP
3WB16X26782 GE Oven Base Bottom
4WB08X10016 GE Range Oven Microwave Light Bulb Lamp Holder Socket
5WB36X10003 GE Oven 40W 130V Light Bulb
7WB36X10071 GE Oven Microwave Glass Lamp Light Lens Cover
8WB36X10216 GE Oven Glass Cover
9WB08X10066 GE Oven Halogen Light Socket
12WB21X10162 GE Microwave Thermal Cut-Off Bottom
13WB27X709 GE Oven Thermostat Vent
15WB20X10043 GE Oven High Voltage Transformer
17WB34X21786 GE Motor Cover
18WB26X10262 GE Oven Fan Motor
19WB26X10254 GE Oven Fan Blade
20WB09X10042 GE Oven Spring Blade
22WB39X10043 GE Oven Upper Duct
23WB18X10494 GE Oven Wire Harness
24WB6X549 GE Oven Holder Sensor A02
25WB24X799 GE Oven Gas Sensor
30WB06X10817 GE Oven Lamp Cover
33WB06X10812 GE Oven Stirring Blade
34WB06X10813 GE Oven Stirrer Holder
35WB06X10814 GE Oven Stirrer Cover
36BUTTON-LOCK
38WB06X10822 GE Oven Mounting Cover
39COUPLER
40TURNTABLE MOTOR
42MICROWAVE LATCH BODY
43WB24X829 GE Oven Microwave Secondary Micro Switch
44WB24X830 GE Oven Door Switch
45LEVER-S/W
46WB27X11094 GE Oven TCO Assembly
47WB27X10170 GE Oven Capacitor
48WB27X32205 GE Oven Dorian Gray Overlay and Controller
49WB06X10713 GE HVAC Bracket
50WB27X10011 GE Microwave Capacitor
51WB27X1160 GE Microwave High Voltage Diode
53WB24X26785 GE Oven Thermostat Assembly with Bracket
54WB24X29270 GE Oven Magnetron TCO
56MAGNETRON ASM
57WB02X11200 GE Noise Filter Assembly
58WB4X175 GE Oven Printed Circuit Board Support
59WB18X10442 GE Oven Power Cord Assembly
60WB26X26792 GE Oven Ventilation Motor
61OUTER PANEL, BB
62WB01X10071 GE Oven Holder Assembly
63WB06X10920 GE Range Microwave Vent Hood Damper
64WB56X10446 GE Oven Mounting Plate Bracket
65WB18X26777 GE Oven Main Harness
66WB06X10818 GE Oven Guide Roller
67WB49X10224 GE Oven Cooking Tray
69WB02X11536 GE Microwave Charcoal Filter
70WB06X10596 GE Grease Filter Replacement
71WB06X10889 GE Oven Mounting Kit
77WB34X26818 GE Vent Grille Assembly
113WB27X10928 GE Oven Line Fuse
