JVM6175EK5ES INTERIOR PARTS (1)

JVM6175EK5ES INTERIOR PARTS (1)

Written by

in

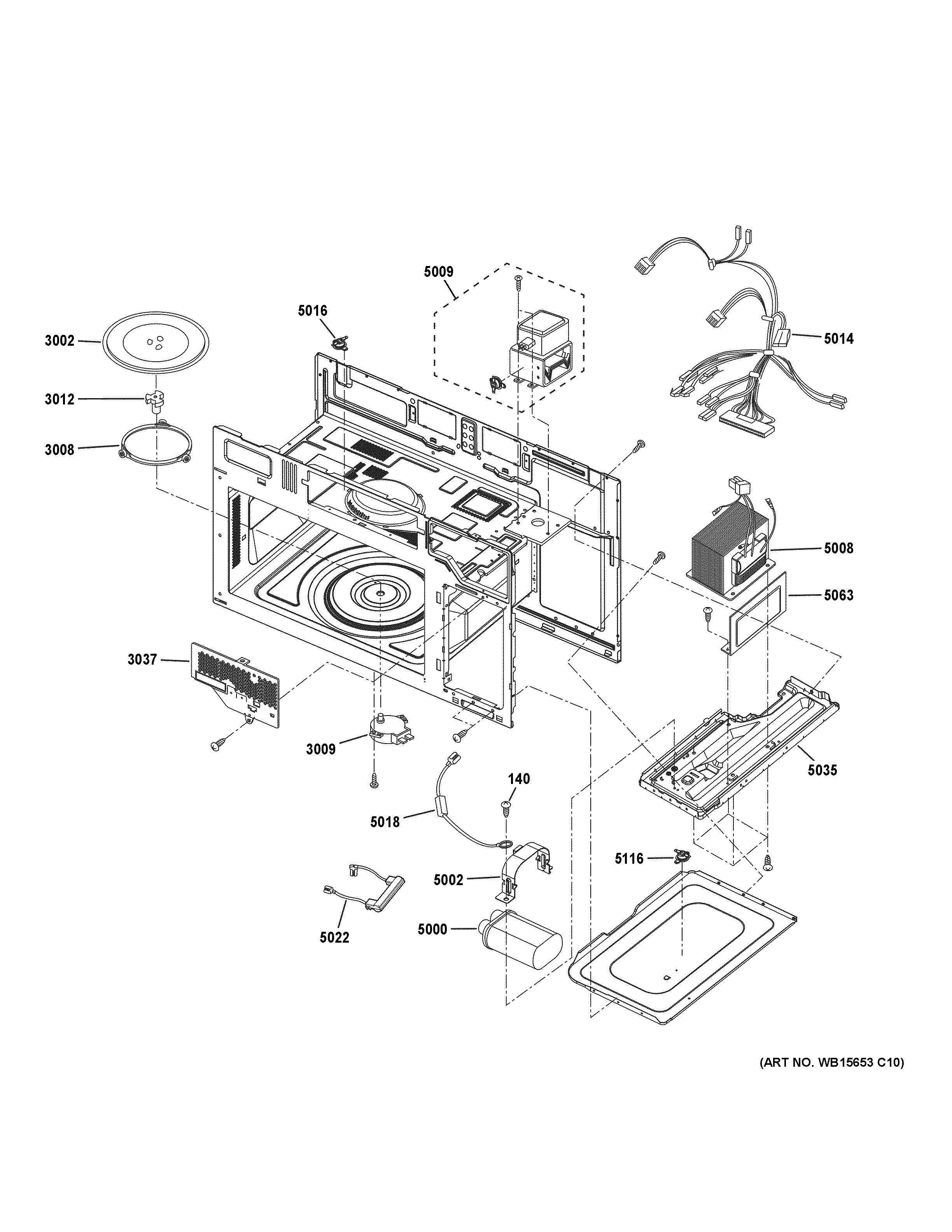

JVM6175EK5ES INTERIOR PARTS (1)

Products

PositionProduct
140SCREW
3002WB49X10129 GE Oven Microwave Turntable Glass Cooking Tray
3008WB06X45707 GE Microwave Turntable Ring Assembly
3009WB26X10226 GE Oven Synchronous AC Motor
3012WB06X10873 GE Oven Turntable Shaft
3037WB34X36287 GE High Voltage Screen
5000WB27X11011 GE Oven High Voltage Capacitor
5002WB34X25381 GE Capacitor Bracket
5008WB26X35514 GE Oven High Voltage Transformer
5009WB49X45009 GE Mounting and Screw Kit
5014WB18X35676 GE Multi Harness
5016WB18X35517 GE Thermostat
5018WB27X35382 GE Diode
5022WB27X35672 GE Fuse Assembly
5035BOTTOM PLATE
5063WB02X11340 GE Microwave Bracket
5116WB20X10048 GE Oven Thermostat
