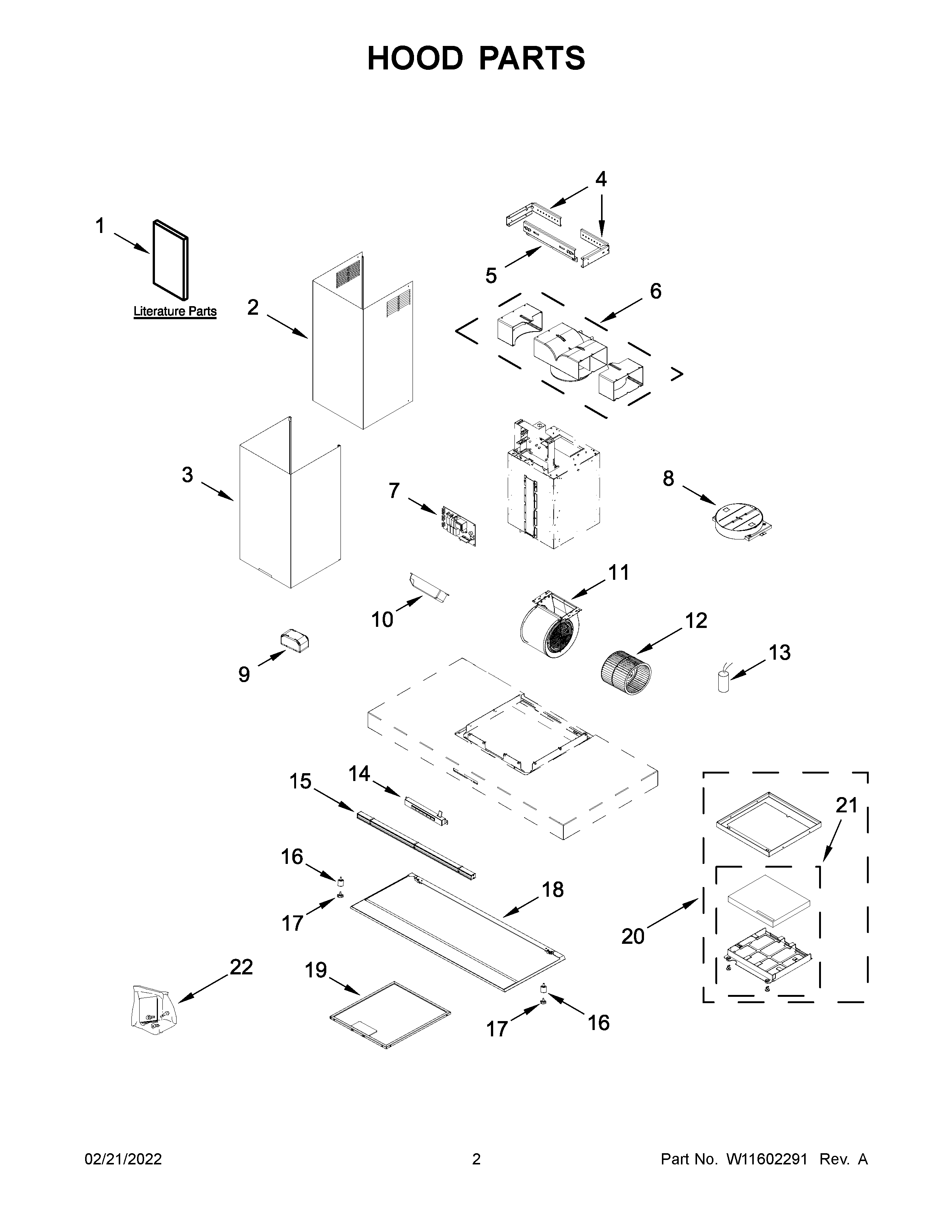

JVW0636LS0 02 – HOOD PARTS

Products

Position	Product
1	USE AND CARE GUIDE
2	CHIMNEY, UPPER
3	CHIMNEY, LOWER
4	BRACKET, MOUNTING
5	BRACKET, CENTER
6	DUCT, AIR DIVERTER
7	VARIATOR, ELECTRONIC
8	DAMPER
9	FILTER, NOISE
10	DRIVER, LED
11	MOTOR, FAN
12	WHEEL, FAN
13	8186677 Whirlpool Capacitor
14	W11601400 Whirlpool Electronic Control Board + Core
15	LIGHT STRIP, LED
16	MAGNET, LATCH
17	PIN, LATCH
18A	PANEL, PERIMETRIC (36" MODEL)
18	PANEL, PERIMETRIC (30" MODEL)
19	W10169961A Whirlpool Grease Filter
20	KIT, RECIRCULATION
21	KIT, CHARCOAL FILTER
22	HARDWARE, INSTALLATION
