JVW5301FJ1DS RANGE HOOD

JVW5301FJ1DS RANGE HOOD

Written by

in

JVW5301FJ1DS RANGE HOOD

Products

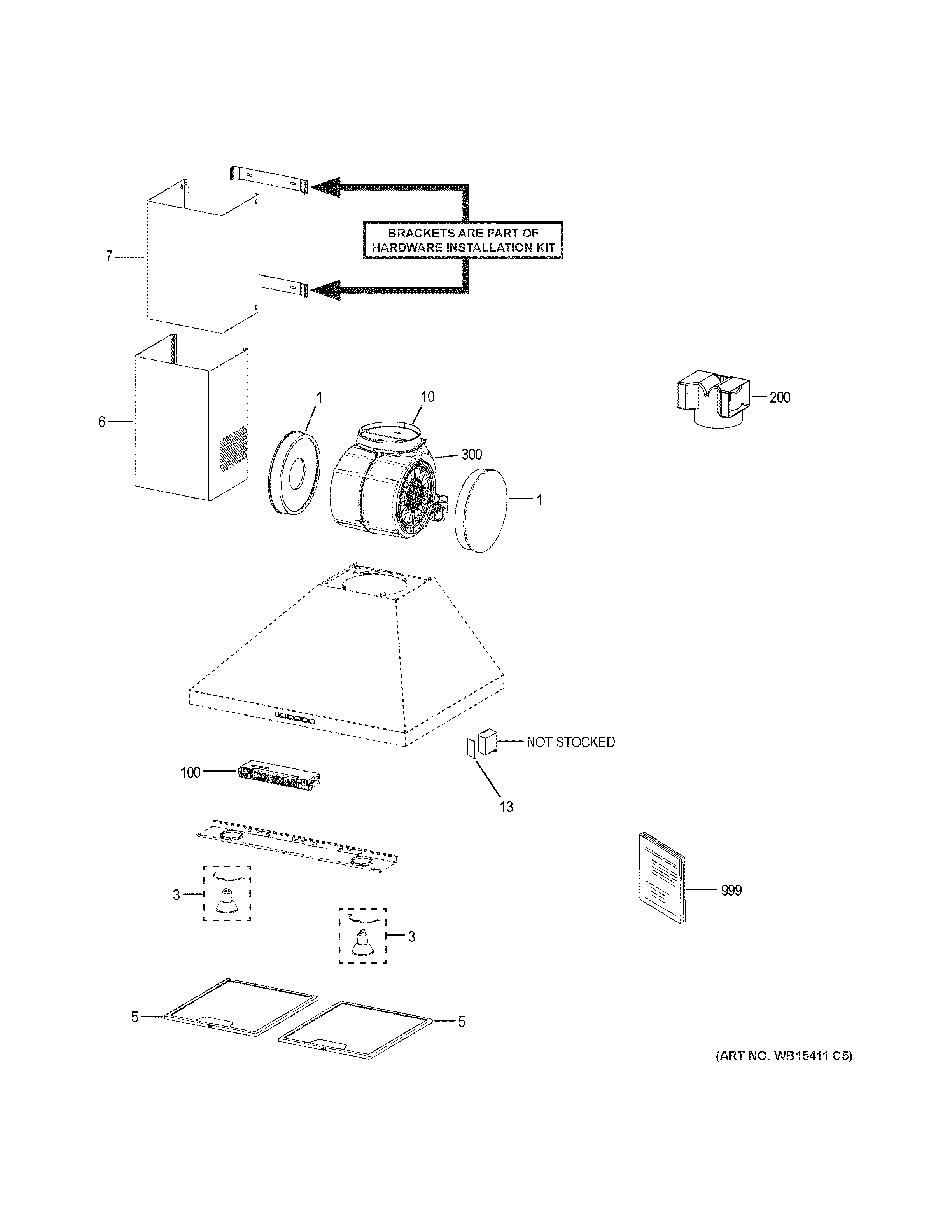

PositionProduct
1JXCF72 GE Charcoal Filter
3WB25X24863 GE Oven Light Bulb
5WB02X24872 GE Range Hood Grease Filter
6WB34X30463 GE Oven Lower Chimney
7WB34X30465 GE Oven Upper Chimney DS
10WB34X30282 GE Oven Damper
13JUNCTION BOX COVER
100WB27X30464 GE Control Board and Buttons AS
200WB34X25562 GE Oven Recirculation Duct
300WB26X24861 GE Oven Blower Assembly
999PM OWNERS MANUAL
999PM INSTALL INSTRUCTIONS
999PM INSTALL INSTRUCTIONS
999WB02X24870 GE Oven Remote Control
999PM MANUAL MINI & WD ASM
999WB01X25087 GE Oven Installation Hardware Kit
