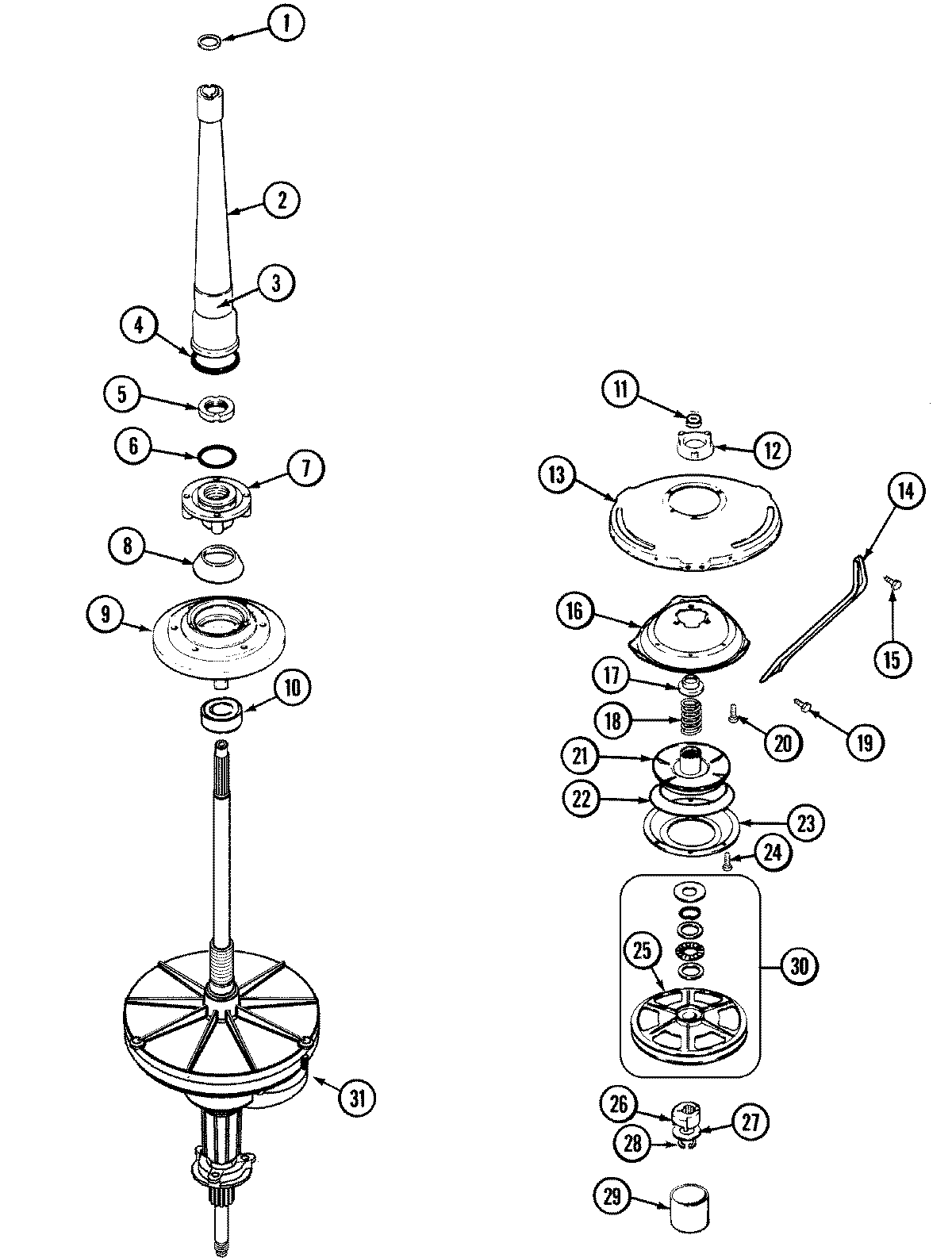

JW1000AKW 05 – TRANSMISSION (JW1000A/AKW SERIES 12)

JW1000AKW 05 – TRANSMISSION (JW1000A/AKW SERIES 12)

Written by

in

JW1000AKW 05 – TRANSMISSION (JW1000A/AKW SERIES 12)

Products

PositionProduct
1MAY 25-7941
2MAY 35-2792
3MAY 35-2983
3MAY 33-6790
4MAY 35-2906
5MAY 35-2791
6MAY 25-7938
7MAY 35-3647
8MAY 35-2974
9MAY 35-2716
10MAY 35-2205
10MAY 35-2972
11MAY 35-2010
12MAY 35-2730
12MAY 35-2973
13MAY 21001162
14MAY 21001164
16MAY 21001163
17MAY 35-2017
18MAY 35-2112
19MAY 25-7930
20MAY 25-7895
21MAY 35-2948
22WP21002026 Whirlpool Snubber Assembly
23MAY 35-2018
24WP21001065 Whirlpool Screw
25MAY 35-3829
27MAY 35-2132
27MAY 35-2082
28WP25-7854 Whirlpool Clip
29MAY 35-2007
3012002213 Whirlpool Washer Pulley and Thrust Bearing Kit
31MAY 21001394
