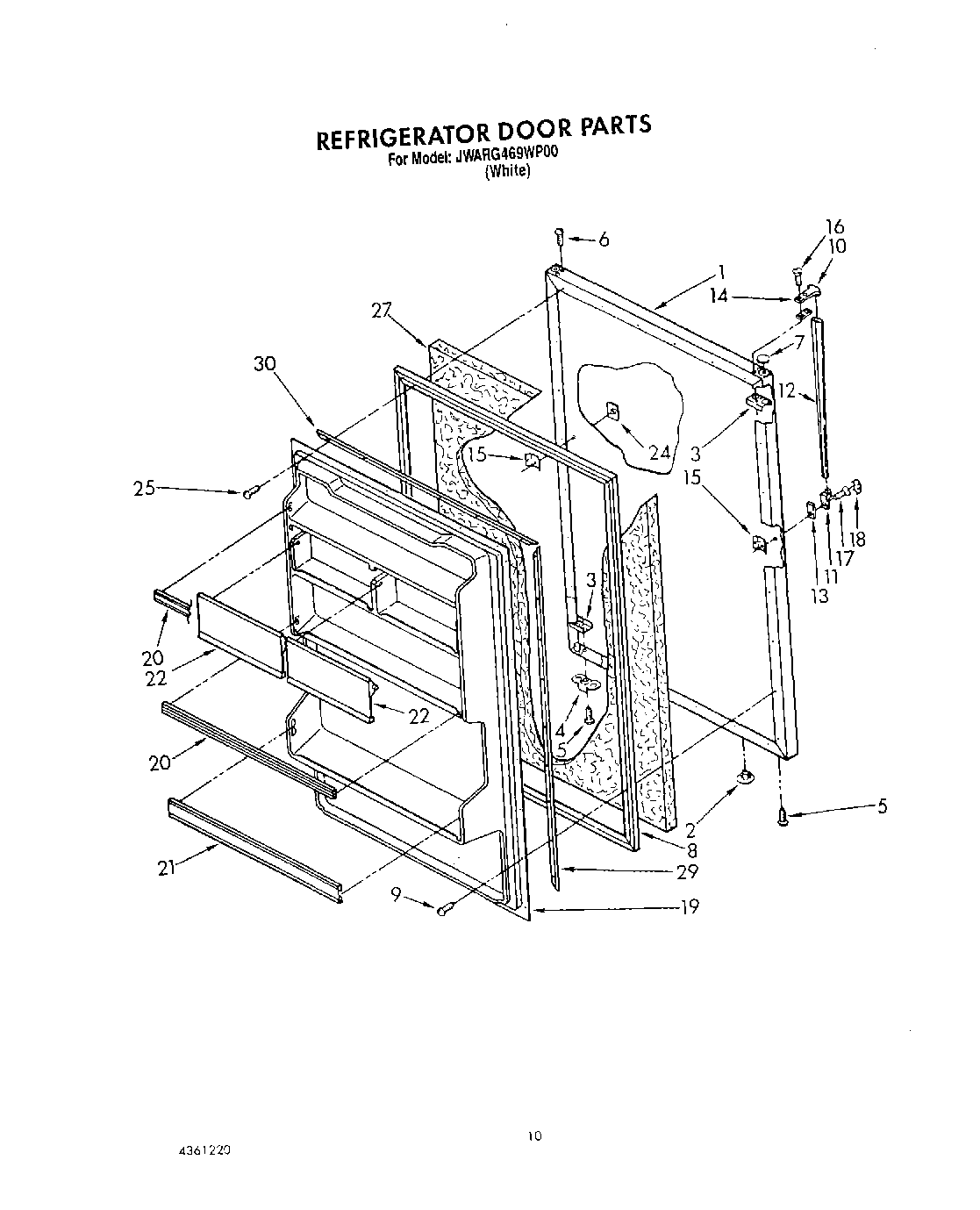

JWARG469WP00 09 – REFRIGERATOR DOOR, LIT/OPTIONAL

JWARG469WP00 09 – REFRIGERATOR DOOR, LIT/OPTIONAL

Written by

in

JWARG469WP00 09 – REFRIGERATOR DOOR, LIT/OPTIONAL

Products

Position	Product
	Torx Key
	WPL 1122242
	WPL LIT2156567
	WPL LIT2156568
	WPL LIT4361220
1	Panel, Refrigerator Door (Also Order Item 27) (White)
1	Panel, Refrigerator Door (Also Order Item 27) (Golden Harvest)
1	Panel, Refrigerator Door (Also Order Item 27) (Almond)
2	Hole Plug (2)
3	W10833053 Whirlpool Refrigerator Plate
4	Bracket, Door Stop
5	WP488921 Whirlpool Refrigerator Screw
6	WP8281206 Whirlpool Refrigerator Screw
7	Hole Plug (Almond)
7	WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
8	2188445A Whirlpool Refrigerator Door Gasket Seal
9	WP489069 Whirlpool Compactor Screw
10	WP2191883 Whirlpool Refrigerator Handle Endcap
11	WP2183139 Whirlpool Refrigerator Handle End Cap
12	WP2162555 Whirlpool Refrigerator White Door Handle
12	Handle, Center (Almond)
12	Handle, Center (Golden Harvest)
13	Shim, Handle End
14	Spa
15	WP939101 Whirlpool Refrigerator Plate
16	WP488920 Whirlpool Refrigerator Screw
17	WP488729 Whirlpool Refrigerator Door Screw
18	WP1101634 Whirlpool Refrigerator Cover
19	Interior Door Panel
20	Trim, Door (Top) (2)
21	Trim, Door (Bottom)
22	Compartment, Door (2)
24	Hole Plug, Handle (Almond)
24	Hole Plug, Handle (White)
24	WP2189000 Whirlpool Refrigerator Handle Plug
29	Gasket Retainer, Side (2)
30	Retainer, Gasket
30	350942 Whirlpool Spray Paint
30	212643 Whirlpool Refrigerator Permagum Sealer
30	Golden Harvest (Uncut)
30	Golden Harvest
30	350930 Whirlpool White Spray Paint
30	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
30	Almond (Uncut)
30	Leveler (Thinner)
30	WP72107 Whirlpool Touchup
30	799344 Whirlpool Refrigerator Paint
30	72017 Whirlpool Appliance Touch-Up Paint White
30	285006 Whirlpool Spray
30	511873 Whirlpool Refrigerator Paint
30	72032 Whirlpool Touch Up Paint Black
30	WPL 876029
30	CEMENT, ALUMILASTIC (1 1/4 OZ.)
30	WPL 799833
30	Enamel, Black (1 Qt. Uncut)
30	TAPE, VINYL (3/4 X 108“)
30	WP542638 Whirlpool Refrigerator Grease
30	WP505587 Whirlpool Refrigerator Sealer
30	WP503695 Whirlpool Refrigerator Sealer
30	876370 Whirlpool Refrigerator Insulation
30	833938 Whirlpool Refrigerator Terminal
30	606755 Whirlpool Refrigerator Bag
30	350956 Whirlpool Spray Assembly
