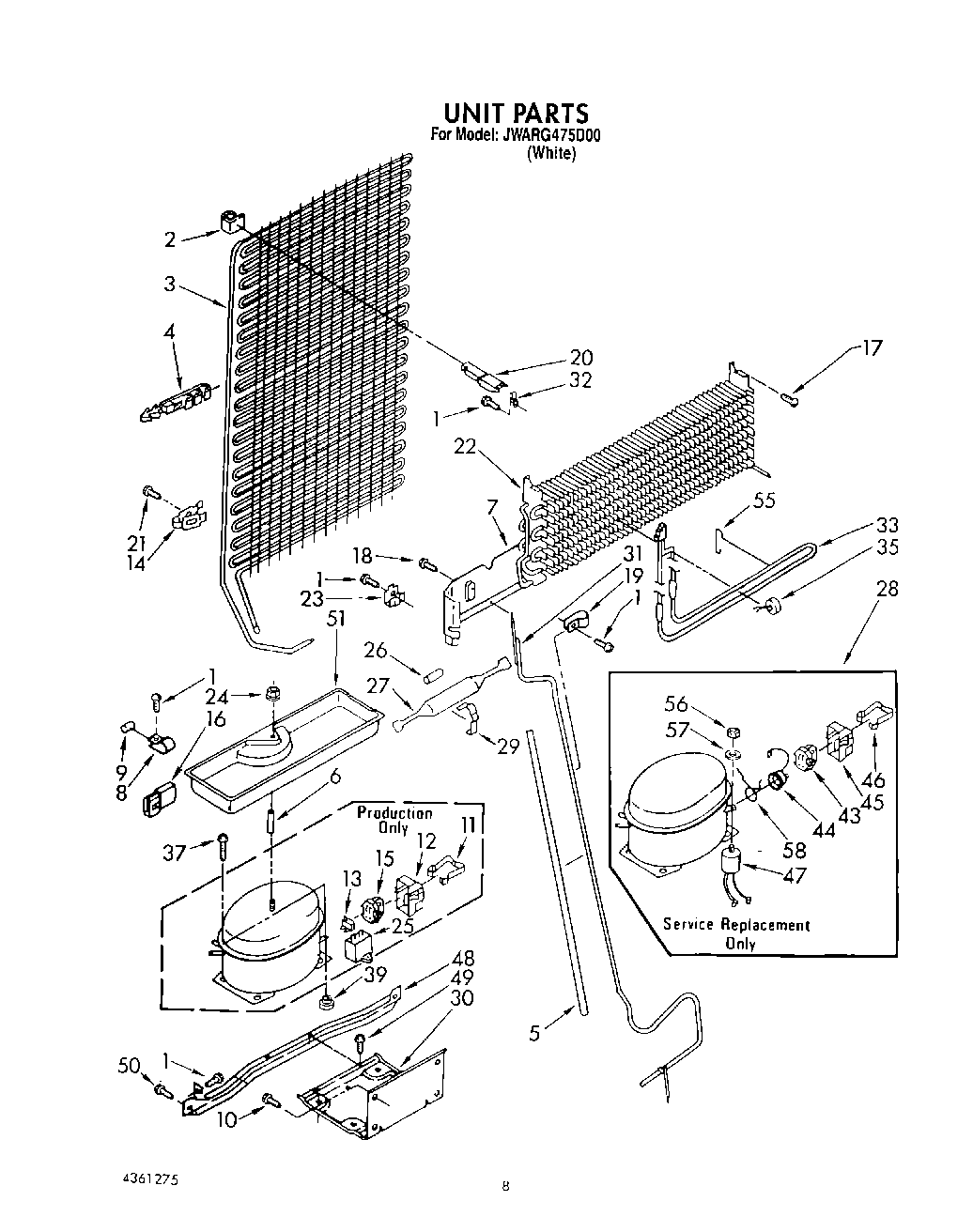

JWARG475D00 08 – UNIT

Written by

Products

Position	Product
1	W11693756 Whirlpool Screw Assembly
2	Bumper (2)
3	Condenser
4	Clip, Tube (2)
5	WP2002171 Whirlpool Refrigerator Sleeve
6	Spacer
7	Heat Shield Evaporator
8	Clamp Tube
9	Dampener
13	Overload
14	Clip, Tube
16	WP717253 Whirlpool Dishwasher Connector
17	WP489174 Whirlpool Refrigerator Screw
19	Tube, Clamp
20	Condenser, Stand-Off
21	WP965173 Whirlpool Dishwasher Screw
22	Evaporator
23	4386951 Whirlpool Refrigerator Clip
24	285002 Whirlpool Nut
26	Restrictor Sleeve
27	W10843121 Whirlpool Refrigerator Tube
28	Installation Kit
28	W10439652 Whirlpool Refrigerator Compressor
28	876765 Whirlpool Primary Mounting Kit Refrigerator
29	Clamp, Dryer
30	Unit Mounting Plate
31	Exchanger, Heat
32	Clip, Stand Off
33	Heater, Defrost
35	WPW10225581 Whirlpool Refrigerator Defrost Thermostat
39	876811 Whirlpool Grommet
43	WP2262181 Whirlpool Refrigerator Start Relay
44	Overload
45	Cover
46	Strap
47	WPW10662129 Whirlpool Refrigerator Run Capacitor
48	Unit Mounting Rail
49	WP489128 Whirlpool Refrigerator Screw
50	WP489427 Whirlpool Refrigerator Screw
51	Evaporator Tray
55	Support, Heater
56	Nut
57	Washer
58	Overload Spring
58	978027 Whirlpool Refrigerator Primary Valve
58	978030 Whirlpool Refrigerator Valve
58	WP978025 Whirlpool Refrigerator Valve
58	VALVE, ACCESS (1/2“)
58	VALVE, ACCESS (5/8“)
58	876764 Whirlpool Refrigerator Primary Valve
58	978026 Whirlpool Refrigerator Primary Valve
