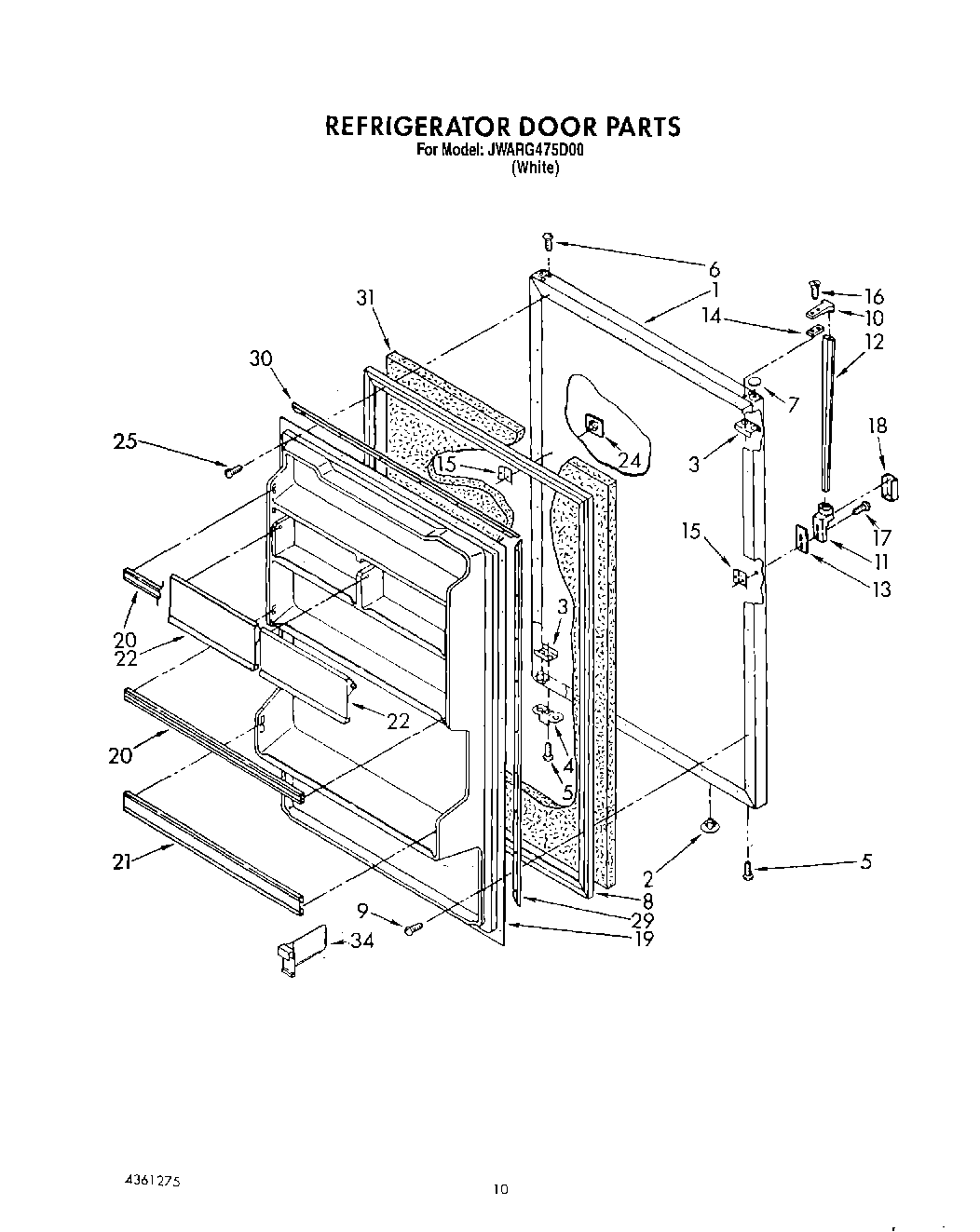

JWARG475D00 09 – REFRIGERATOR DOOR, LIT/OPTIONAL

JWARG475D00 09 – REFRIGERATOR DOOR, LIT/OPTIONAL

JWARG475D00 09 – REFRIGERATOR DOOR, LIT/OPTIONAL

Products

PositionProduct
WPL LIT4361275
Torx Key
WPL LIT2156490
1Panel, Refrigerator Door (White)
2Hole Plug (2)
3W10833053 Whirlpool Refrigerator Plate
4Bracket, Door Stop
5WP488921 Whirlpool Refrigerator Screw
6WP8281206 Whirlpool Refrigerator Screw
7WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
8Door Gasket, Magnetic
9WP489069 Whirlpool Compactor Screw
10WP2191883 Whirlpool Refrigerator Handle Endcap
11WP2183139 Whirlpool Refrigerator Handle End Cap
12WP2162555 Whirlpool Refrigerator White Door Handle
13Shim, Handle
14Spa
15WP939101 Whirlpool Refrigerator Plate
16WP488920 Whirlpool Refrigerator Screw
17WP488729 Whirlpool Refrigerator Door Screw
18WP1101634 Whirlpool Refrigerator Cover
19Interior Door Panel
20Trim, Door (2)
21Trim, Door
22Compartment Door
24WP2189000 Whirlpool Refrigerator Handle Plug
29Gasket Retainer, Side (2)
30Gasket Retainer, Top & Bottom (2)
34Divider, Shelf
34285006 Whirlpool Spray
3472032 Whirlpool Touch Up Paint Black
34Almond (Uncut)
34WP542638 Whirlpool Refrigerator Grease
34212643 Whirlpool Refrigerator Permagum Sealer
34Golden Harvest (Uncut)
34Golden Harvest
3472110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
34Leveler (Thinner)
34WP72107 Whirlpool Touchup
34799344 Whirlpool Refrigerator Paint
3472017 Whirlpool Appliance Touch-Up Paint White
34350956 Whirlpool Spray Assembly
34350942 Whirlpool Spray Paint
34511873 Whirlpool Refrigerator Paint
34WPL 876029
34WPL 799833
34CEMENT, ALUMILASTIC (1 1/4 OZ.)
34TAPE, VINYL (3/4 X 108“)
34WP505587 Whirlpool Refrigerator Sealer
34WP503695 Whirlpool Refrigerator Sealer
34876370 Whirlpool Refrigerator Insulation
34833938 Whirlpool Refrigerator Terminal
34606755 Whirlpool Refrigerator Bag
34350930 Whirlpool White Spray Paint
