JWARG475WP00 02 – CABINET

JWARG475WP00 02 – CABINET

Written by

in

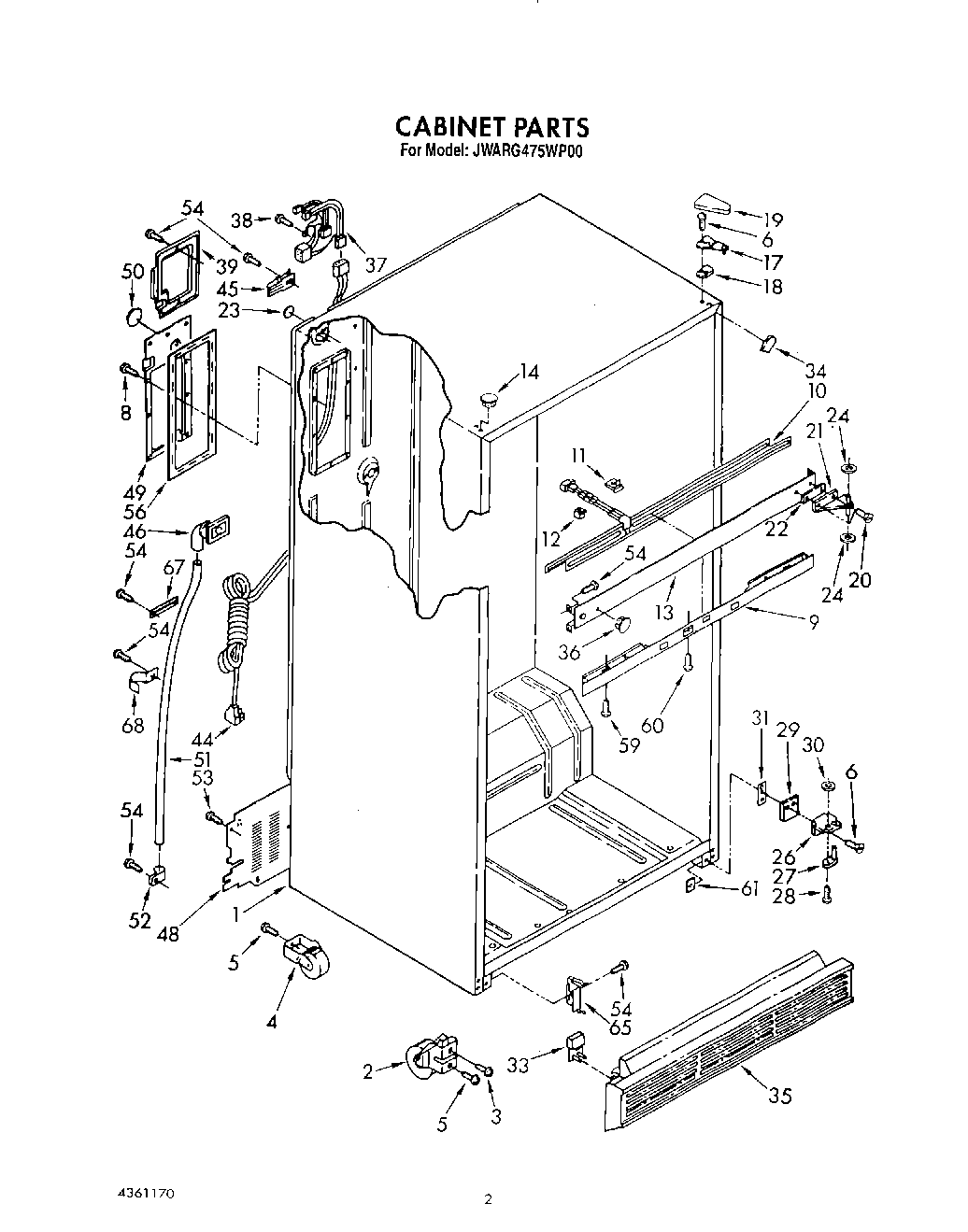

JWARG475WP00 02 – CABINET

Products

PositionProduct
1Cabinet (Not A Serviceable Part)
2Front Roller (2)
3Screw
4WPW10250570 Whirlpool Refrigerator Cabinet Roller
5WP489427 Whirlpool Refrigerator Screw
6Screw
8WP489464 Whirlpool Refrigerator Screw
9Control, Front Cover
10Heater, Mullion
11Clip, Mullion (3)
12Spacer (3)
13Center Rail (White)
14WP2151652 Whirlpool Refrigerator Button Plug
17Hinge, Top
18Shim, Hinge Top
191119787 Whirlpool Refrigerator Hinge Cover
20WP999367 Whirlpool Refrigerator Screw
21Hinge, Center
22Shim, Hinge Center
23Hole Seal
24WP489467 Whirlpool Hinge Shim
27Hinge Pin, Bottom
28Screw 10-32 x 5/16
29Shim, Bottom
30WP487802 Whirlpool Refrigerator Washer
31Spacer
33Corner Filler, Grille (White)
34Filler, Wrapper Corner (2) (White)
35Grille
36Hole Plug (4) (White)
37Cabinet, Wiring Assembly
38WP250830 Whirlpool Refrigerator Screw
39Cover, Wiring
44Service Cord
45Clamp
46Fitting, Drain
48Cover, Unit
49Cover, Plug
50WPL 1120224
518316810 Whirlpool Refrigerator Drain Tube
52WPL 836077
54WP488163 Whirlpool Refrigerator Screw
56WPL 1114548
60WP489174 Whirlpool Refrigerator Screw
61Tap Plate (2)
65WP2155013 Whirlpool Refrigerator Clip
67Tube Clamp (2)
68WPL 1110564
