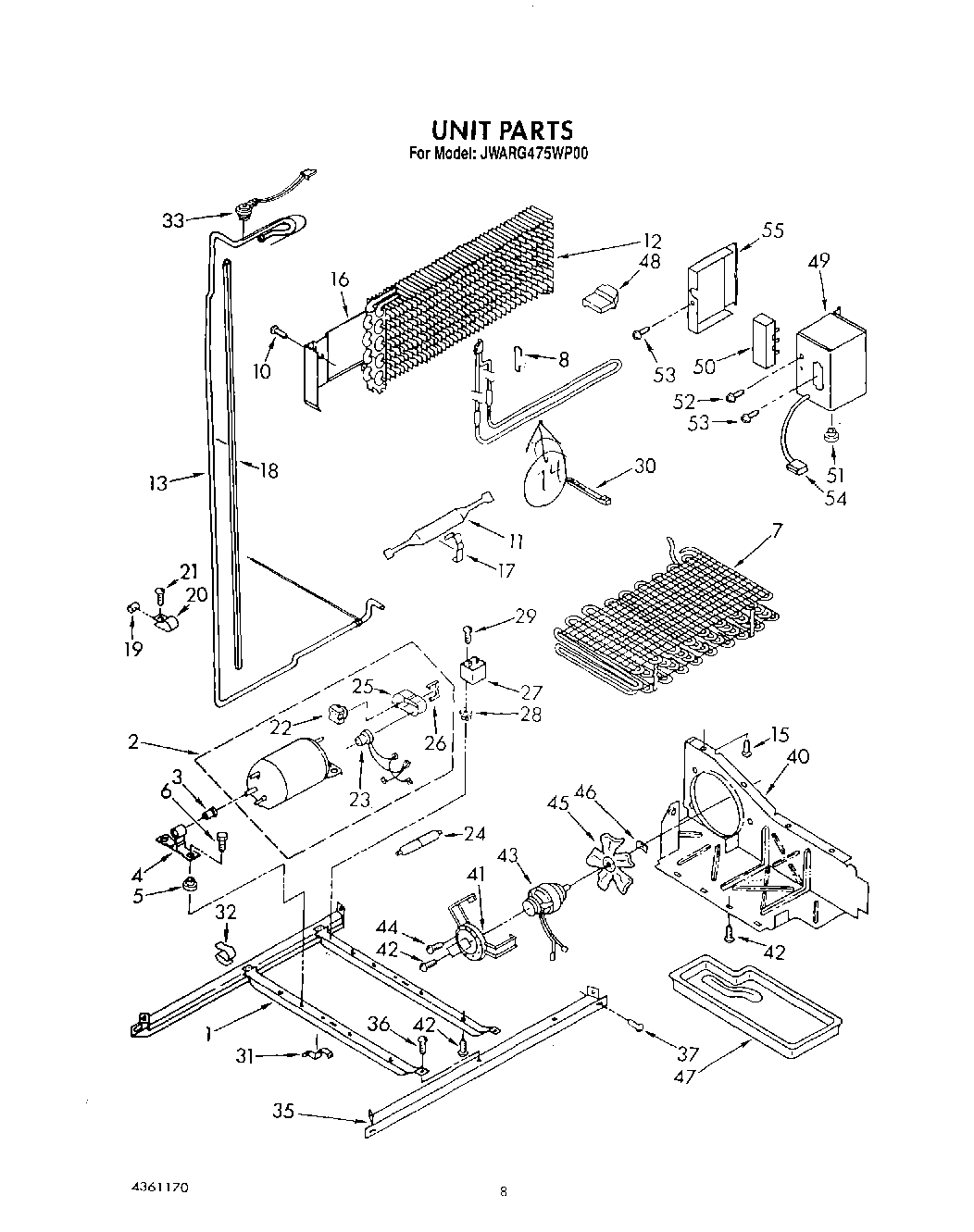

JWARG475WP00 06 – UNIT

Products

Position	Product
1	Unit, Frame
2	Compressor Kit Includes Items (22, 23, 25, 26)
3	Grommet, Compressor Bracket
4	Bracket, Mounting
5	Grommet, Compressor (4)
6	Screw (4)
7	Condenser Assembly
8	Support, Heater
10	WP965173 Whirlpool Dishwasher Screw
11	W10843121 Whirlpool Refrigerator Tube
12	Evaporator Assembly
13	Heat, Exchanger
14	Heater, Defrost
15	WP489478 Whirlpool Refrigerator Screw
16	Heat Shield
17	Clamp, Dryer
18	WP2002171 Whirlpool Refrigerator Sleeve
19	Dampener (2)
20	Clamp Tube
21	WPW10141625 Whirlpool Refrigerator Screw Assembly
22	Relay
23	Overload
24	Muffler
25	Terminal Cover
26	Strap, Cover
27	Running Capacitor
28	Screw Grommet
29	W11693756 Whirlpool Screw Assembly
30	Strap
31	Clip (2)
32	Clip, Wire (2)
33	WP4387503 Whirlpool Refrigerator Bimetal Defrost Thermostat
35	Unit, Rail
36	Screw, 1/4-28 x 1/2 (2)
37	489340 Whirlpool Refrigerator Screw
40	Air, Baffle
41	Fan, Mounting Bracket
42	Screw, 8 x 3/8
43	8201703 Whirlpool Refrigerator Condenser Motor
44	681390 Whirlpool Refrigerator Screw
45	Fan Blade
46	WP486692 Whirlpool Refrigerator Nut
47	Tray, Evaporator
48	Wedge, Air Baffle
49	Enclosure, Term.
50	Terminal Block
51	Bushing
52	WPW10272364 Whirlpool Refrigerator Screw
53	Screw
54	Wiring Assy.
55	Cover, Term.
55	VALVE, ACCESS (5/8“)
55	VALVE, ACCESS (1/2“)
55	876764 Whirlpool Refrigerator Primary Valve
55	978027 Whirlpool Refrigerator Primary Valve
55	WP978025 Whirlpool Refrigerator Valve
55	978030 Whirlpool Refrigerator Valve
55	978026 Whirlpool Refrigerator Primary Valve
