JWARG475WP01 06 – UNIT

JWARG475WP01 06 – UNIT

Written by

in

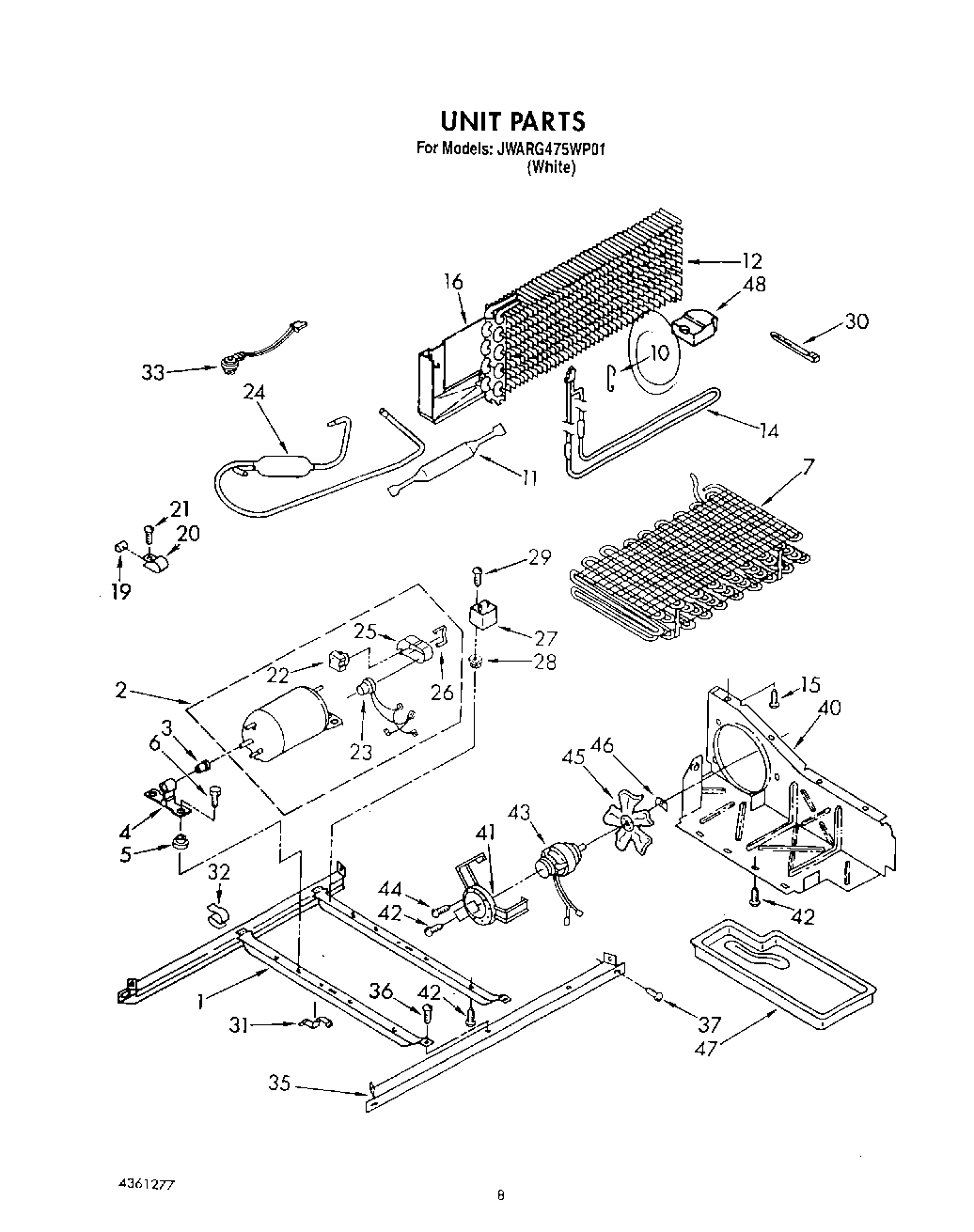

JWARG475WP01 06 – UNIT

Products

PositionProduct
1Unit, Frame
2Compressor Kit Includes Items (22, 23, 25, 26)
3Grommet, Compressor Bracket
4Bracket, Mounting
5Grommet, Compressor (4)
6Screw (4)
7Condenser Assembly
10Support, Heater
11W10843121 Whirlpool Refrigerator Tube
12Evaporator
14Heater, Defrost
16Drain Pan & Heat Shield
19Dampener (2)
20Clamp Tube
21WP489478 Whirlpool Refrigerator Screw
22Relay
23Overload
23Overload
24Muffler
25Terminal Cover
25Terminal Cover (Service)
26Strap, Cover
27Running Capacitor
28Screw Grommet
29W11693756 Whirlpool Screw Assembly
30Strap
31Clip (2)
32W10169512 Whirlpool Clip
33WP4387503 Whirlpool Refrigerator Bimetal Defrost Thermostat
35Unit, Rail
36WP489427 Whirlpool Refrigerator Screw
37489340 Whirlpool Refrigerator Screw
40Air, Baffle
41Fan, Mounting Bracket
42Screw, 8 x 3/8
438201703 Whirlpool Refrigerator Condenser Motor
44681390 Whirlpool Refrigerator Screw
45Fan Blade
46WP486692 Whirlpool Refrigerator Nut
47Tray, Evaporator
48978026 Whirlpool Refrigerator Primary Valve
48VALVE, ACCESS (1/2“)
48WP978025 Whirlpool Refrigerator Valve
48Wedge, Air Baffle
48978030 Whirlpool Refrigerator Valve
48978027 Whirlpool Refrigerator Primary Valve
48876764 Whirlpool Refrigerator Primary Valve
48VALVE, ACCESS (5/8“)
