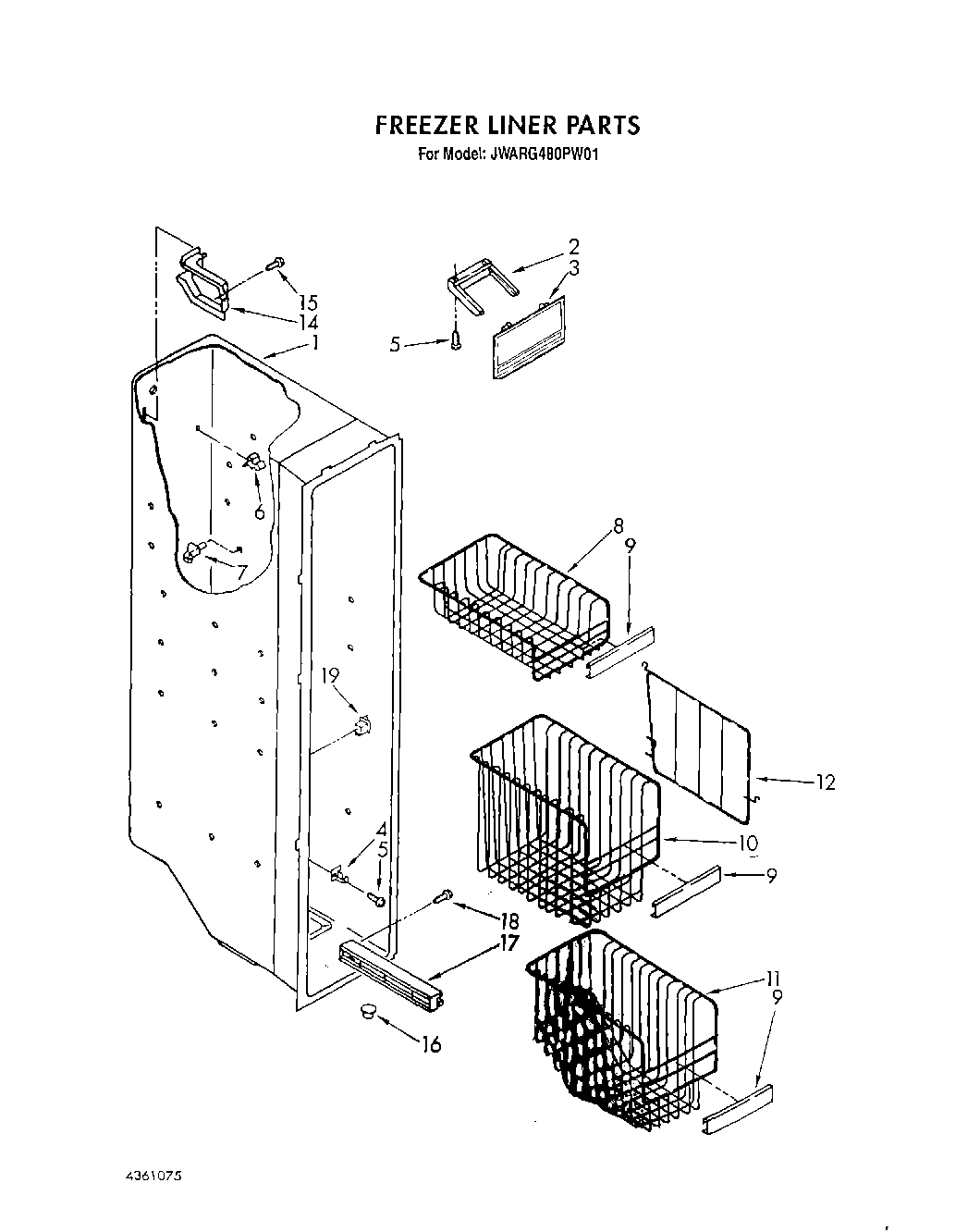

JWARG480PW01 05 – FREEZER LINER

Products

PositionProduct
1Liner (Not A Serviceable Part)
2Slide, Ice Door
3Door, Ice Compartment
4Evaporator, Support
5WP489478 Whirlpool Refrigerator Screw
62215823 Whirlpool Refrigerator Clip
74388405 Whirlpool Refrigerator Shelf Stud
8Basket (2)
9Trim, Basket
10Basket, Tall
11Basket, Slope
12Rack, Pizza
14Wiring Cover
15WP488729 Whirlpool Refrigerator Door Screw
16Fitting, Drain
17Shelf Track (Left Side (4))
17Shelf Track (Right Side (4))
18W11693756 Whirlpool Screw Assembly
19W11457217 Whirlpool Refrigerator Rocker Switch Combination
