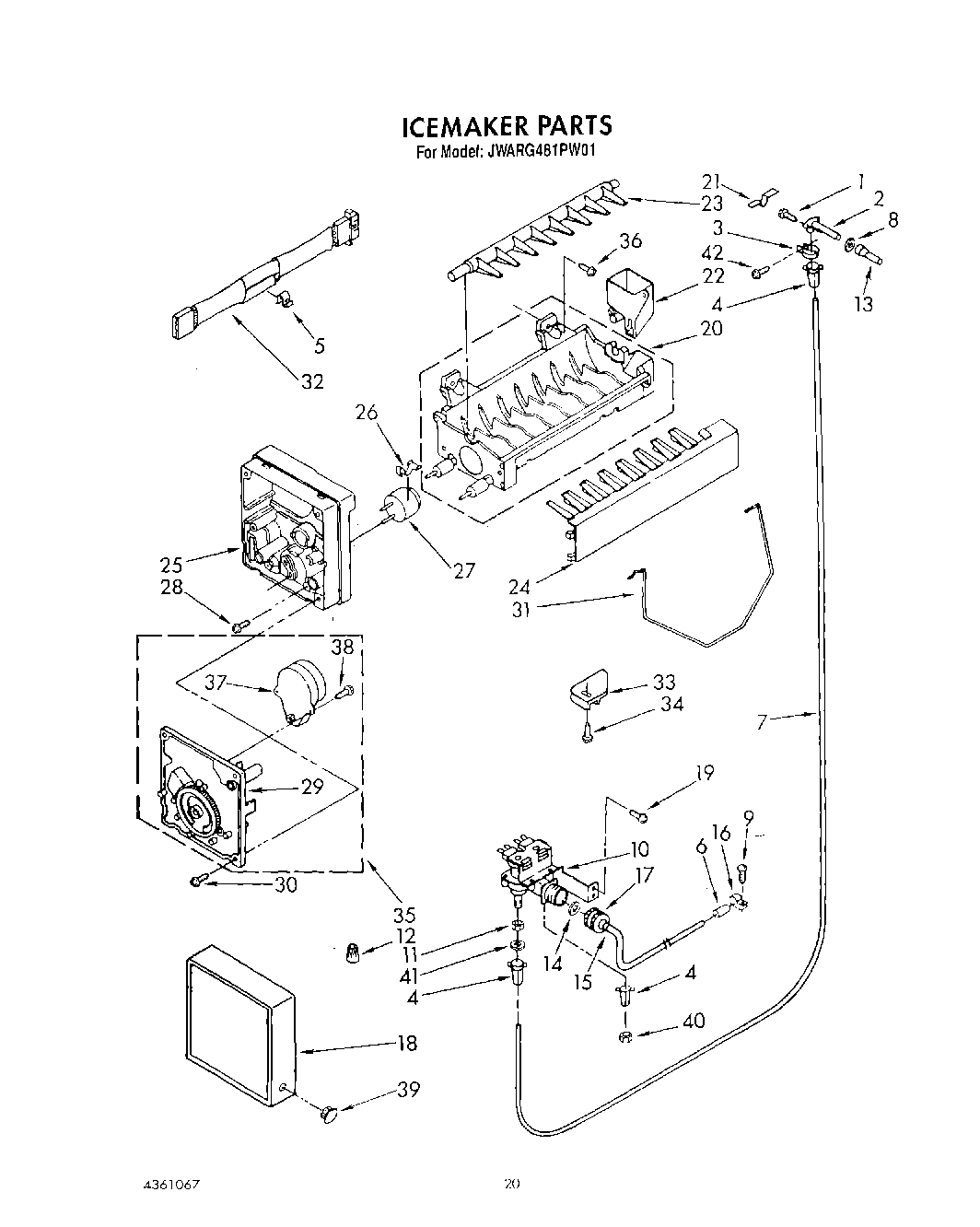

JWARG481PW01 14 – ICEMAKER, LIT/OPTIONAL

JWARG481PW01 14 – ICEMAKER, LIT/OPTIONAL

Written by

in

JWARG481PW01 14 – ICEMAKER, LIT/OPTIONAL

Products

PositionProduct
WPL LIT4361067
WPL LIT1129380
Torx Key
WPL LIT628107
2WP2196157 Whirlpool Fill Tube
3WP488878 Whirlpool Refrigerator Tube Clamp
44387491 Whirlpool Refrigerator Insert
5WP628379 Whirlpool Refrigerator Clip
6WP2158826 Whirlpool Refrigerator Dampener
7W10823511 Whirlpool Refrigerator Water Tube
8WP1106508 Whirlpool Refrigerator Gasket
9WP489069 Whirlpool Compactor Screw
104318046 Whirlpool Dual Water Inlet Valve
11WP627018 Whirlpool Refrigerator Nut
12Wire Connector
13Tube, Water Inlet
14Washer
15Tube, Inlet Valve
16Clamp Tube
17Nut, Valve
18Cover
19WPW10141625 Whirlpool Refrigerator Screw Assembly
20WPW10190929 Whirlpool Refrigerator Ice Maker Mold
21Clip
22WP628356 Whirlpool Refrigerator Fill Cup
23WP627843 Whirlpool Refrigerator Ejector Arm
24WP2182124 Whirlpool Refrigerator Stripper Arm
25WP2195914 Whirlpool Refrigerator Ice Maker Housing
26WP2315522 Whirlpool Refrigerator Clip
27WP627985 Whirlpool Icemaker Cycling Thermostat
27Cement Alumilastic)
288533917 Whirlpool Refrigerator Screw
30WP681249 Whirlpool Screw Assembly
31W11342242 Whirlpool Refrigerator Ice Level Arm
32WP2187464 Whirlpool Refrigerator Wire Harness
33W11500948 Whirlpool Refrigerator Bracket
34Screw, 8-32 x 27/64
35W10190935 Whirlpool Refrigerator Icemaker Motor Module Assembly
36WP488163 Whirlpool Refrigerator Screw
38489136 Whirlpool Refrigerator Screw
39WP489115 Whirlpool Refrigerator Rivet
40Nut, Compression
41“O“ Ring Seal
42WP488787 Whirlpool Refrigerator Screw
99350942 Whirlpool Spray Paint
99511873 Whirlpool Refrigerator Paint
99Enamel, Black (1 Qt. Uncut)
99212643 Whirlpool Refrigerator Permagum Sealer
99350930 Whirlpool White Spray Paint
99Water Connection Tube Assembly
99Leveler (Thinner)
99799344 Whirlpool Refrigerator Paint
99WPL 876029
99Transformer (115-230 Volt)
99WPL 799833
99CEMENT, ALUMILASTIC (1 1/4 OZ.)
99876370 Whirlpool Refrigerator Insulation
99285006 Whirlpool Spray
9972032 Whirlpool Touch Up Paint Black
99TAPE, VINYL (3/4 X 108“)
99WP542638 Whirlpool Refrigerator Grease
99WP505587 Whirlpool Refrigerator Sealer
99WP503695 Whirlpool Refrigerator Sealer
99833938 Whirlpool Refrigerator Terminal
99606755 Whirlpool Refrigerator Bag
9972017 Whirlpool Appliance Touch-Up Paint White
