JWARG483WP01 04 – REFRIGERATOR SHELF

JWARG483WP01 04 – REFRIGERATOR SHELF

Written by

in

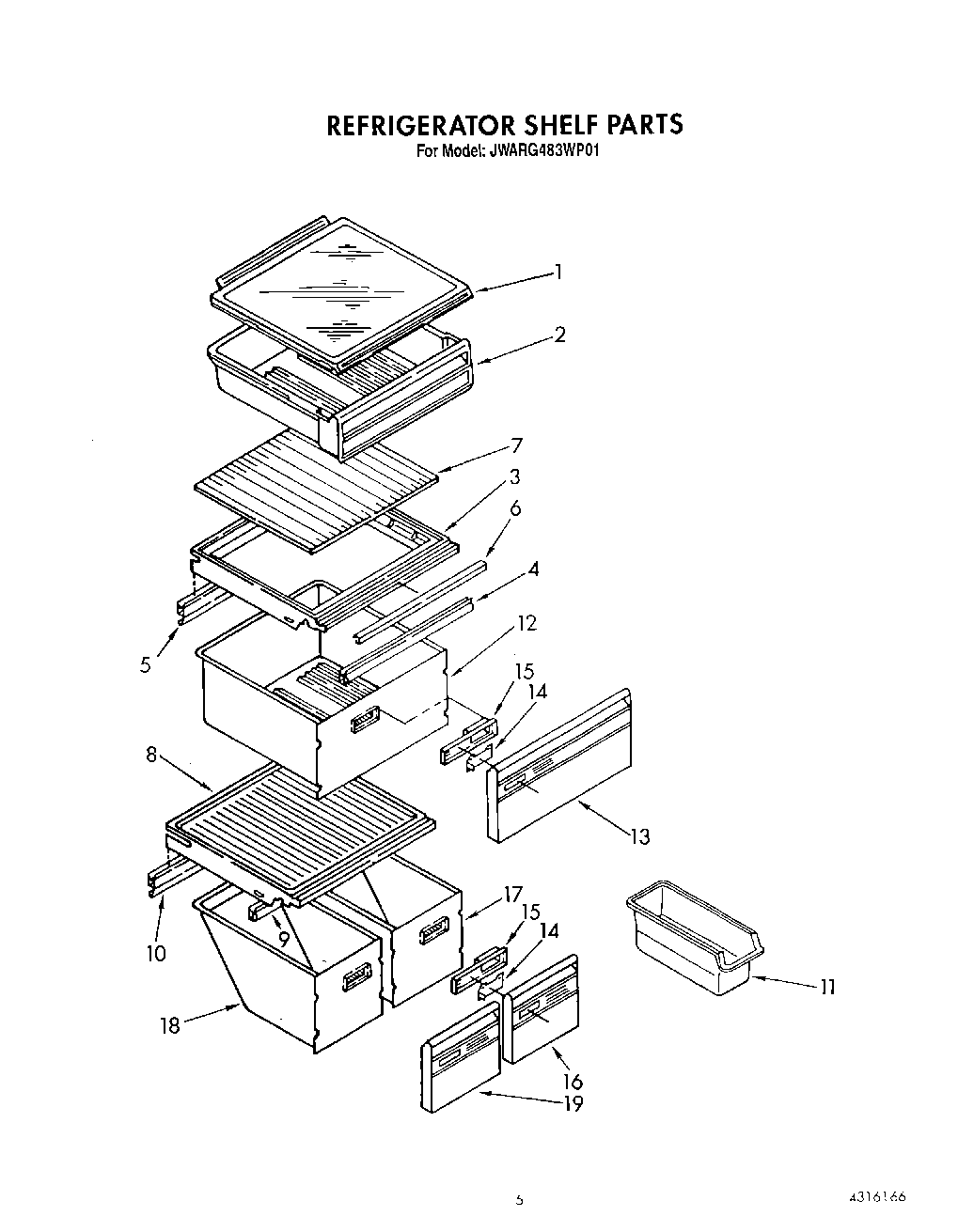

JWARG483WP01 04 – REFRIGERATOR SHELF

Products

PositionProduct
1Shelf Assembly, Glass Sliding (3)
2Snack Bin
3WP1126289 Whirlpool Refrigerator Cover
4Gasket, Crisper (Front)
5Gasket, Crisper (Rear)
6Trim, Crisper Cover
7Glass, Crisper Cover
8Cover, Meat Pan
9Gasket (Front)
10Gasket (Rear)
11WP982704 Whirlpool Refrigerator Container
12WP2148279 Whirlpool Refrigerator Crisper Pan
13Front, Crisper Pan
14Slide, Humidity Control
15Housing, Humidity Control
16Front, Meat Pan
17Meat Pan
18Meat Pan
19Front, Meat Pan
