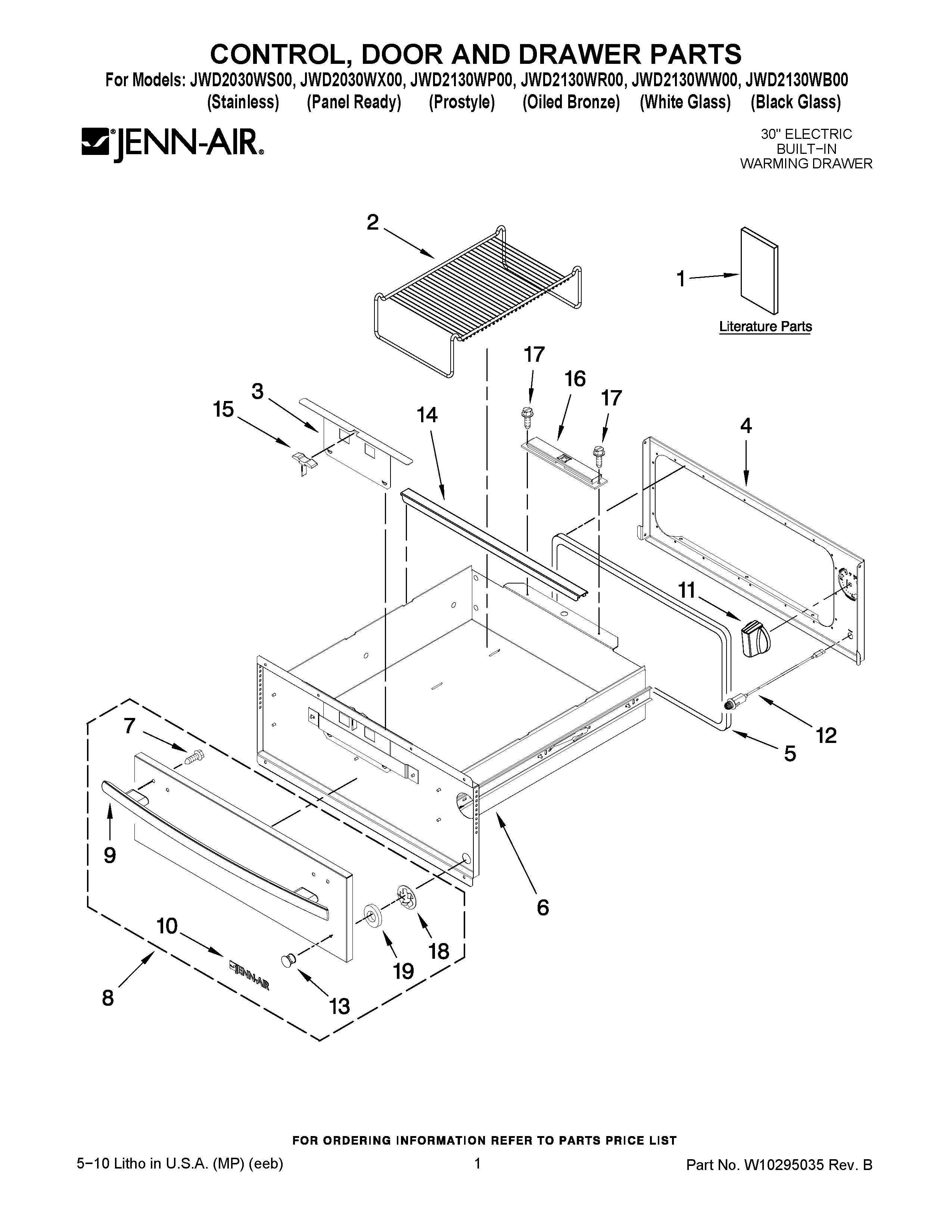

JWD2030WS00 01 – CONTROL, DOOR AND DRAWER PARTS

JWD2030WS00 01 – CONTROL, DOOR AND DRAWER PARTS

Written by

in

JWD2030WS00 01 – CONTROL, DOOR AND DRAWER PARTS

Products

Position	Product
1	MAY W10276326
1	MAY W10276325
1	MAY W10122855
1	SHEET, TECH
2	RACK, WARMING DRAWER
3	SLIDE, VENT
4	MAY W10306323
5	GASKET, DRAWER
6	ASSEMBLY, DRAWER
7	SCREW, HANDLE
7	SCREW, HANDLE (STANDARD)
8	MAY W10274384
8	MAY W10274387
8	MAY W10274388
8	MAY W10276415
8	MAY W10274379
9	MAY W10186755
9	MAY W10186756
9	HANDLE, DOOR
9	MAY W10186757
9	MAY W10186754
10	ASSEMBLY, BADGE (WHITE)
10	ASSEMBLY, BADGE (BLACK)
10	ASSEMBLY, BADGE (STAINLESS)
10	ASSEMBLY, BADGE (OILED BRONZE)
10	MAY W10159578
11	KNOB, THERMOSTAT
12	MAY W10274389
13	LENS, INDICATOR
14	RAIL, PAN
15	GRIP, VENT
16	MAGNET
17	Screw
18	CLIP, LENS RETAINER
19	SPACER, LENS
