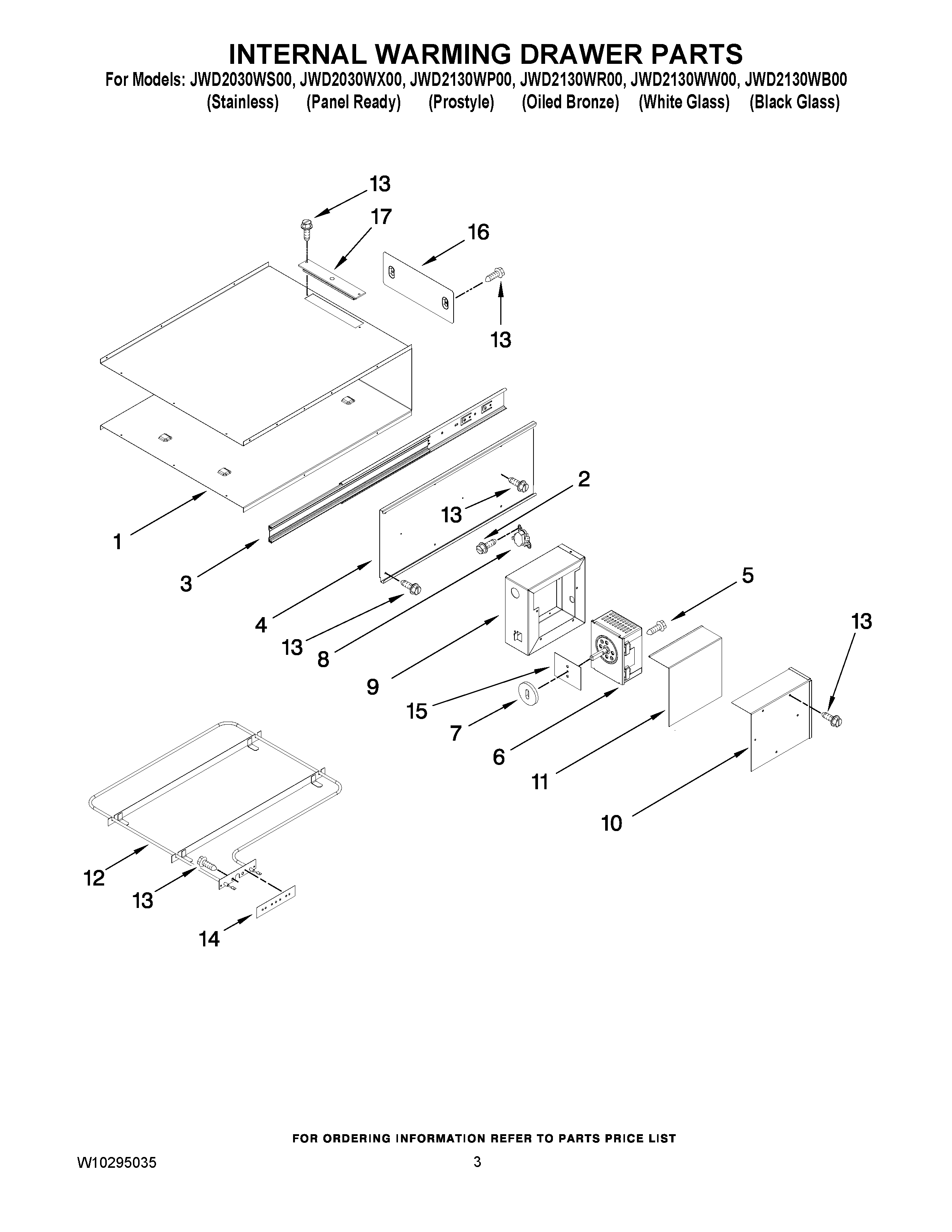

JWD2130WW00 02 – INTERNAL WARMING DRAWER PARTS

Products

Position	Product
NI	SERVING PAN, 1/2 SIZE
NI	MAY JWD2130WR
NI	MAY JWD2130WW
NI	MAY JWD2130WB
NI	RELIEF, STRAIN
NI	CORD, POWER
NI	DRAWERPAN KIT FOR JWD7530CDX
NI	MAY JWD2130WP
NI	SENSOR, SEALED
NI	STAINLESS STEEL CLEANER & POLISH
NI	SERVING PAN, 1/3 SIZE
NI	CLEANER, ALL-PURPOSE
NI	HARNESS, MAIN
NI	SCREW, GROUNDING
1	MAY 9762305
2	SCREW
3	ASSEMBLY, SLIDE
4	WALL, CAVITY (RIGHT)
4	WALL, CAVITY (LEFT)
5	SCREW
6	CONTROL
7	GASKET, CONTROL
8	FUSE, THERMAL
9	ENCLOSURE, ELECTRIC
10	COVER, ENCLOSURE
11	GASKET, ENCLOSURE
12	ELEMENT, HEATING
13	Screw
14	SEAL, HEATING ELEMENT
15	SEAL, SWITCH
16	SHIELD, HEAT
17	MAGNET
