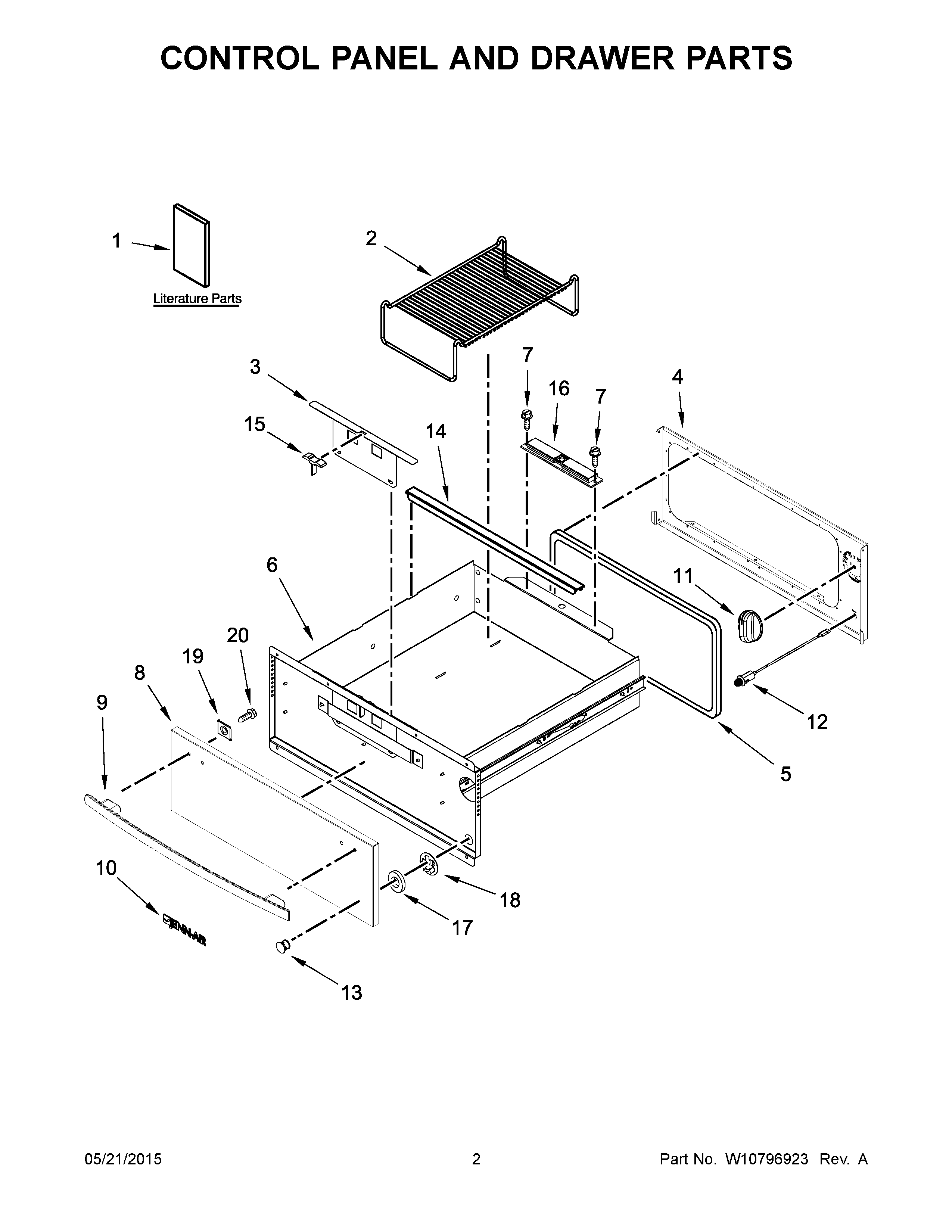

JWD3027ES00 02 – CONTROL PANEL AND DRAWER PARTS

Products

PositionProduct
1BMAY W10736619
1MAY W10736617
1ASHEET, TECH
2RACK, WARMING DRAWER
3SLIDE, VENT
4PANEL, FRONT
5GASKET, DRAWER
6ASSEMBLY, DRAWER
7Screw
8SKIN, DRAWER
9ASSEMBLY, HANDLE (STAINLESS)
10ASSEMBLY, BADGE (STAINLESS)
11KNOB, THERMOSTAT
12LIGHT, INDICATOR
13LENS, INDICATOR
14RAIL, PAN
15GRIP, VENT
16MAGNET
17SPACER, LENS
18CLIP, LENS RETAINER
19MAY 3823F017-45
20SCREW
