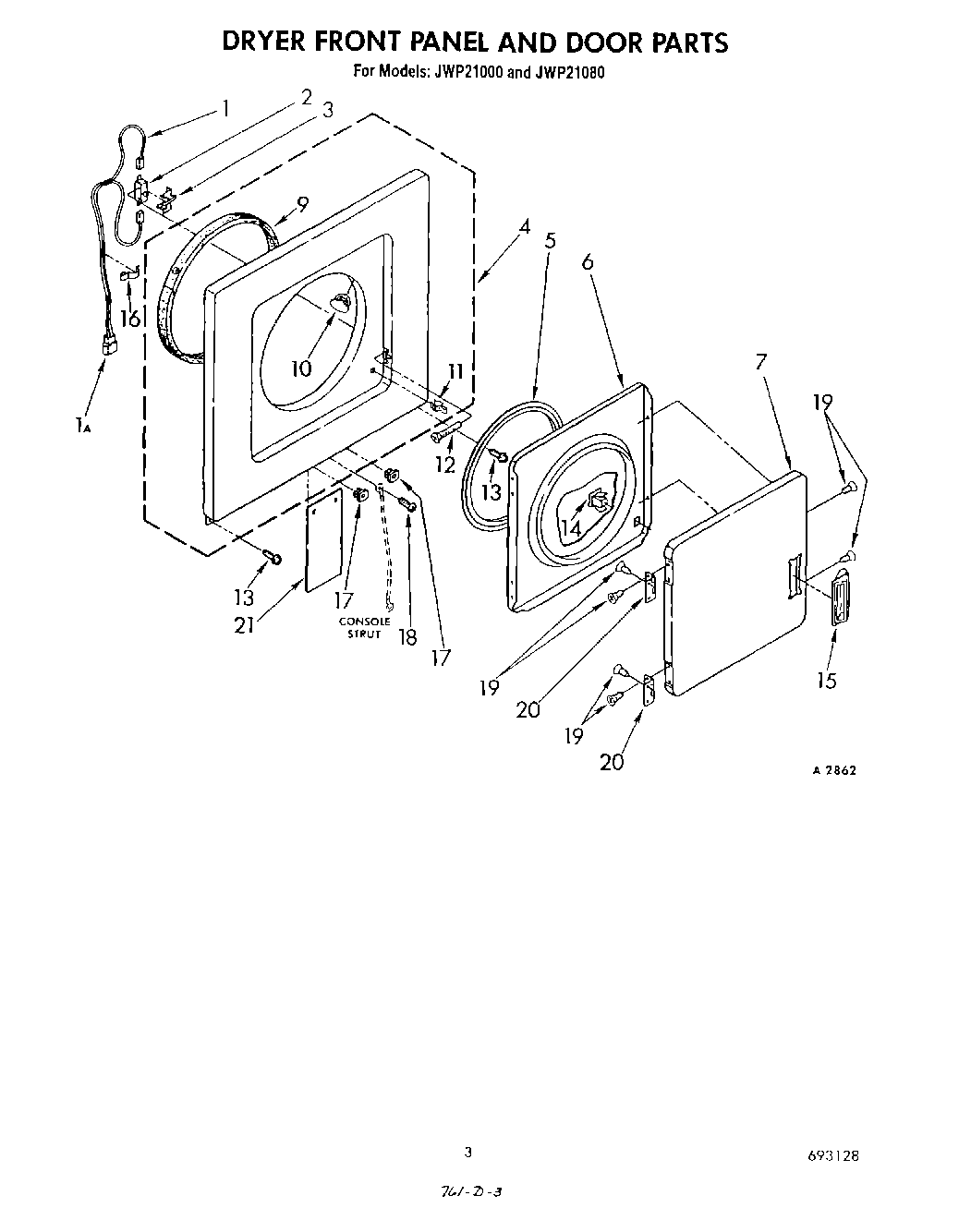

JWP21000 03 – DRYER FRONT PANEL AND DOORadmin2025-04-26T09:36:20+00:00JWP21000 03 – DRYER FRONT PANEL AND DOOR
Products
| Position | Product |
|---|
| 1 | Harness, Door Switch (Includes Illus. 1A) |
| 1A | WP717253 Whirlpool Dishwasher Connector |
| 2 | W10820036 Whirlpool Door Switch Kit |
| 3 | WP691581 Whirlpool Actuator |
| 4 | Panel, Front (Golden Harvest) |
| 4 | Panel, Front (Platinum) |
| 4 | Panel, Front (Toast) |
| 4 | Panel, Front (Almond) |
| 4 | 285314 Whirlpool O/S1 Panel |
| 5 | W11613302 Whirlpool Door Seal |
| 6 | 280077 Whirlpool Door |
| 7 | Door, Front (Toast) |
| 7 | WPL 689319 |
| 7 | Door, Front (Almond) |
| 7 | WP348205 Whirlpool Door |
| 7 | Door, Front (Platinum) |
| 9 | 279264 Whirlpool Bearing and Seal Kit |
| 10 | 279220 Whirlpool Clip |
| 11 | 279570 Whirlpool Dryer Door Latch Kit |
| 12 | WP98129 Whirlpool Screw |
| 13 | SCREW |
| 14 | WP3389441 Whirlpool Door Catch |
| 15 | Handle, Door (Platinum) |
| 15 | WP686711 Whirlpool Door Handle |
| 15 | Handle, Door (Golden Harvest) |
| 15 | Handle, Door (Almond) |
| 16 | Support Protector |
| 17 | Fastener, Push (2) |
| 18 | WP3390631 Whirlpool Screw |
| 19 | WP694091 Whirlpool Screw |
| 20 | WP348023 Whirlpool Hinge |
| 21 | Barrier, Harness |
