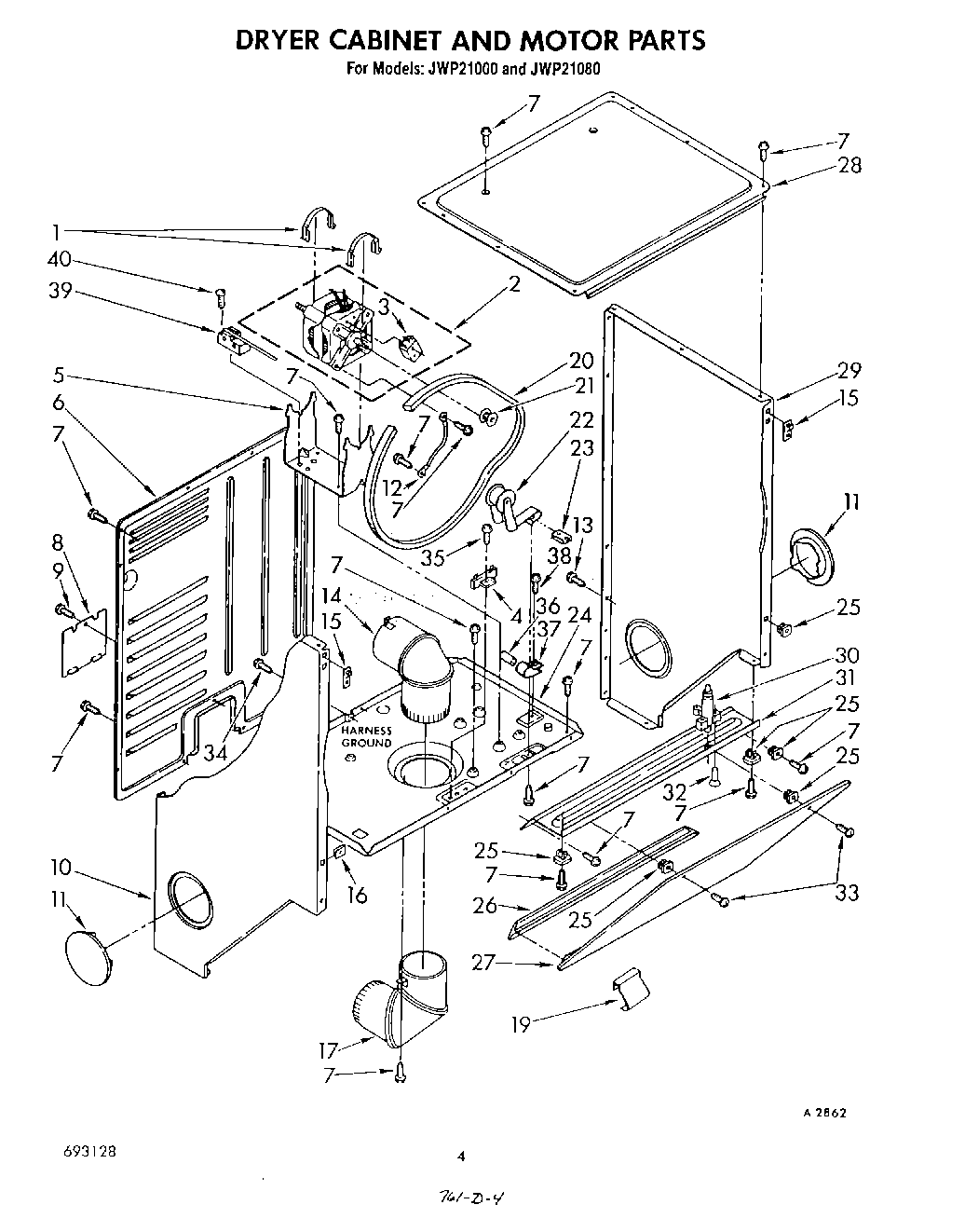

JWP21000 04 – DRYER CABINET AND MOTOR

JWP21000 04 – DRYER CABINET AND MOTOR

Written by

in

JWP21000 04 – DRYER CABINET AND MOTOR

Products

PositionProduct
1WP660658 Whirlpool Clamp
3279827 Whirlpool Dryer Drive Motor
4279872 Whirlpool Resistor
5696541 Whirlpool Base
6Panel, Rear
8Cover, Service
10Panel, Side (L.H.) (Golden Harvest)
10Panel, Side (L.H.) (Platinum)
10WP3402293 Whirlpool Panel Assembly
10Panel, Side (L.H.) (Almond)
10Panel, Side (L.H.) (Toast)
11Plug, Side Panel (2) (Platinum)
11692790 Whirlpool Plug
11Plug, Side Panel (2) (Golden Harvest)
11Plug, Side Panel (2) (Almond)
11Plug, Side Panel (2) (Toast)
12Wire, Ground
13WP308544 Whirlpool Screw
14Elbow, Upper
15W10854425 Whirlpool Dryer Front Panel Bottom Mounting Clip
16WP98234 Whirlpool Nut
173399603 Whirlpool Elbow
19WPL 686768
203394652 Whirlpool Drum Belt
21W10837625 Whirlpool Dryer Motor Pulley
22WP691366 Whirlpool Dryer Idler Pulley Assembly
23WP692771 Whirlpool Nut
24Base, Dryer
25WP692400 Whirlpool Nut
26WP692926 Whirlpool Cover Appliance
27Panel, Transition (Almond)
27Panel, Transition (Toast)
27Panel, Transition (Platinum)
27Panel, Transition (Golden Harvest)
27692933 Whirlpool Panel
28WP692641 Whirlpool Dryer Top Assembly
29Panel, Side (R.H.) (Almond)
29Panel, S
29Panel, Side (R.H.) (White)
29WPL 692611
29WPL 692610
30WP693145 Whirlpool Lid Latch
31WP692781 Whirlpool Closure Assembly
31WPL 692782
31WPL 692783
31WPL 692784
31WPL 692785
32Screw & Washer
33WP693304 Whirlpool Screw
35WP3390631 Whirlpool Screw
36CAPACITOR
37357030 Whirlpool Clamp
38SCREW
39WPL 696581
40303776 Whirlpool Dishwasher Screw
