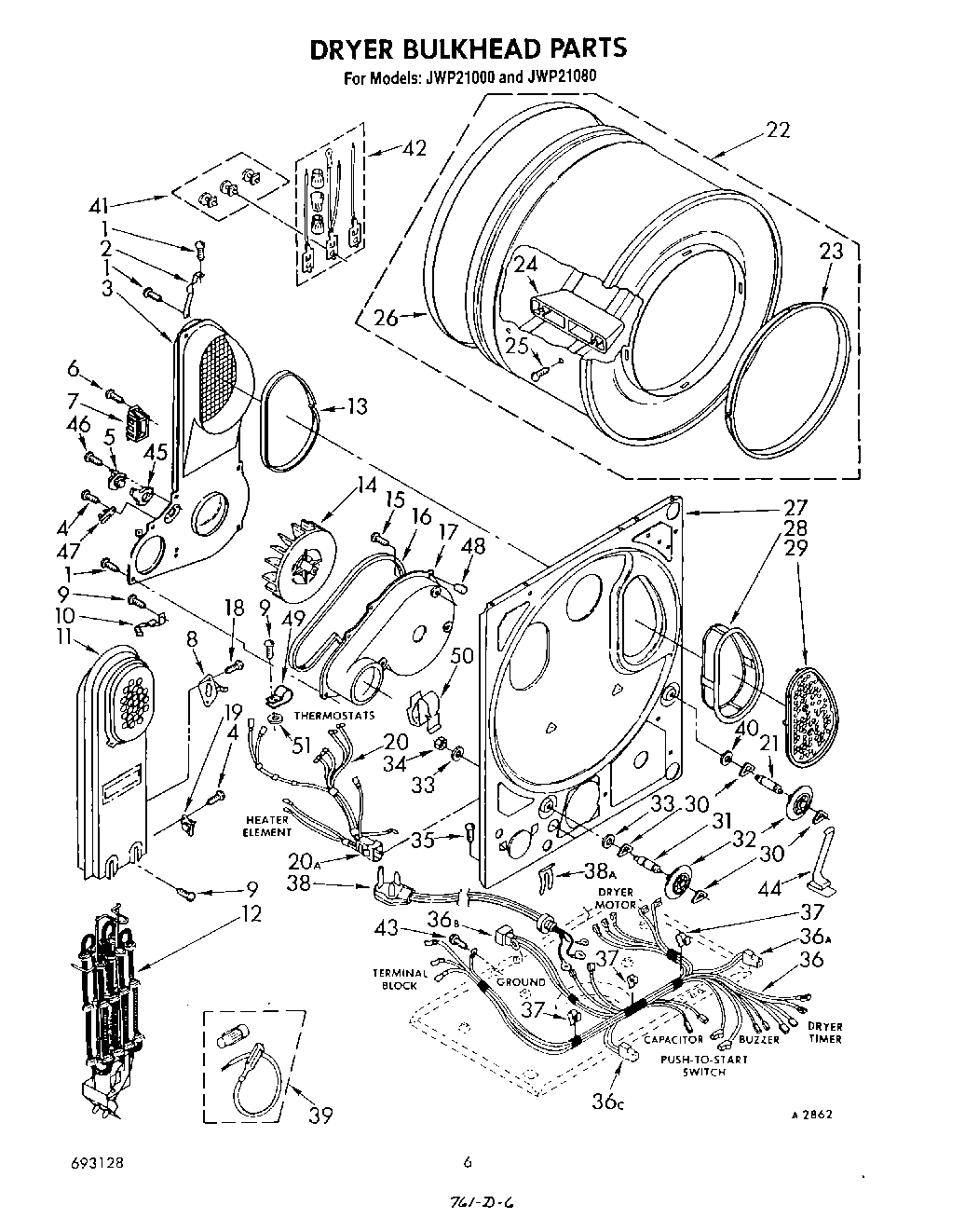

JWP21000 05 – DRYER BULKHEAD

JWP21000 05 – DRYER BULKHEAD

Written by

in

JWP21000 05 – DRYER BULKHEAD

Products

PositionProduct
1SCREW
2345396 Whirlpool Clip
3Air Duct & Bracket
4WP90767 Whirlpool Screw
5WP694674 Whirlpool Cycling Thermostat
6Screw, Terminal Block To Bracket (2)
7279320 Whirlpool Dryer Rear Terminal Block Kit
8279769 Whirlpool Dryer Thermal Cut-Off Fuse Kit
10279771 Whirlpool Clip
11Box, Heater
12Element, Heater
13SEAL
14WP696426 Whirlpool Wheel
15WP308685 Whirlpool Microwave Screw
16Seal, Fan Scroll
17WP696418 Whirlpool Fan Scroll
19THRMST-FIX
20APlug, Multi- Terminal 56B
20Harness, Thermostat & Heater (Includes Illus. 20A)
21SHAFT SUPPORT ROLLER DRYER
223391834 Whirlpool Drum
23WP3394508 Whirlpool Bearing Ring
24685207 Whirlpool Dryer Baffle
25Screw, 11-16 x 7/8
26SEAL
27279848 Whirlpool Bulkhead
28W10828351 Whirlpool Dryer Filter Lint Screen with Cover
30WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
31SHAFT SUPPORT ROLLER DRYER
32349241T Whirlpool Dryer Drum Support Roller Kit
33WP348197 Whirlpool Washer Assembly
34WP358160 Whirlpool Nut
35WP3390631 Whirlpool Screw
36Harness, Main Dryer Wiring (Includes Illus. 36A, 36B & 36C)
36AReceptacle, Latching (2-Way) (Uses Terminal 94614)
36CWPL 717315
36BReceptacle (2)
37CLIP
38A687000 Whirlpool Connector
38DC4-30-6 USD Products Dryer 6' 4-Wire Cord 30 Amp
39279457 Whirlpool Dryer Heating Element Wide Spade Connection
40WP3388703 Whirlpool Washer
41279393 Whirlpool Terminal Block Screw and Nut Kit
42279318 Whirlpool Terminal
44WPL 3389665
45Heater, Thermostat
46WP488729 Whirlpool Refrigerator Door Screw
47WP3392519 Whirlpool Dryer Thermal Fuse
48W10491983 Whirlpool Tine Tip
49488946 Whirlpool Air Conditioner Clamp
50WP3400935 Whirlpool Dishwasher Clip
51WPL 312147
