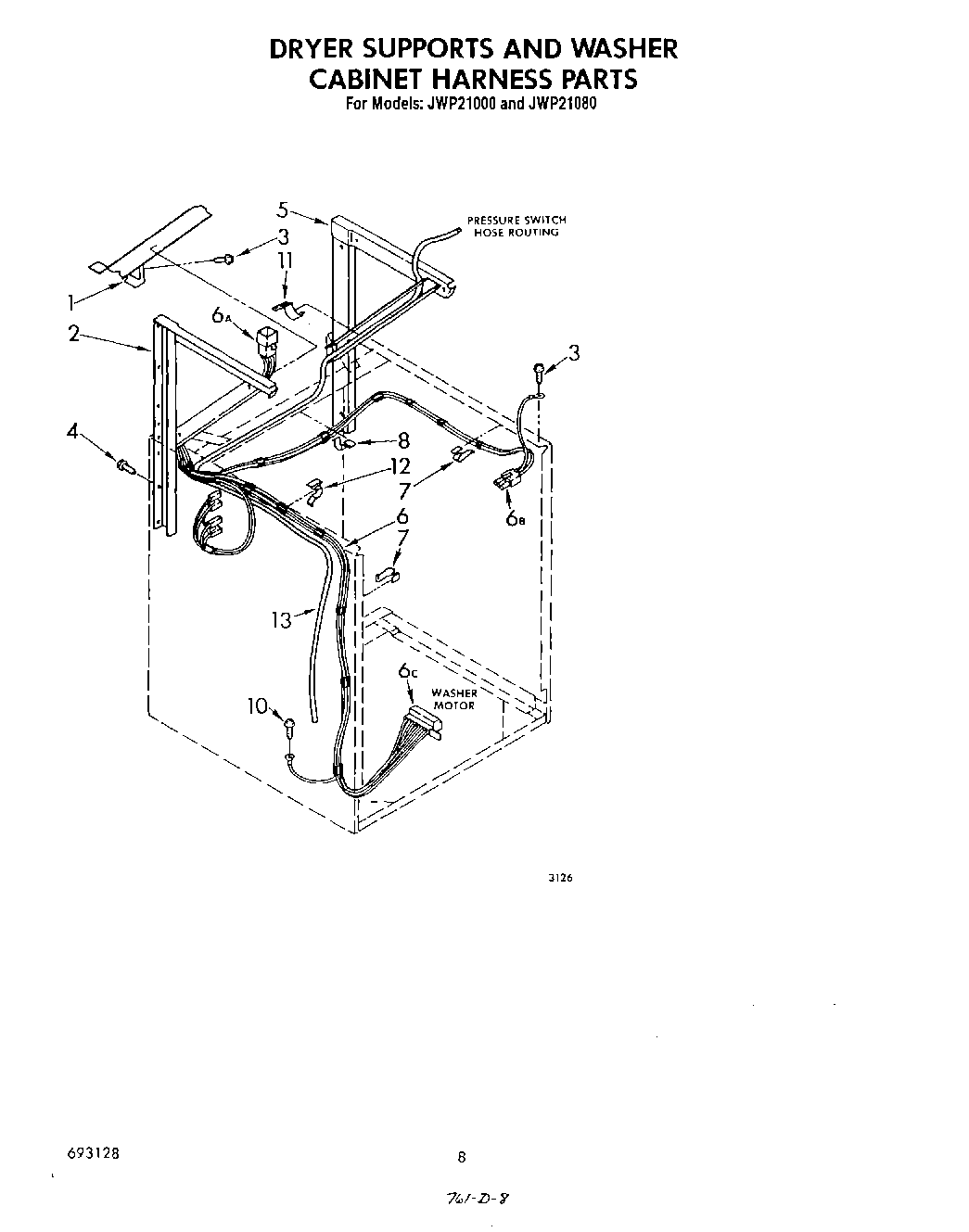

JWP21000 06 – DRYER SUPPORTS AND WASHER CABINET H

Products

PositionProduct
1694304 Whirlpool Channel Cover
2W11174025 Whirlpool Support Assembly
3SCREW
4WP308544 Whirlpool Screw
5W11174024 Whirlpool Support
6CWP62505 Whirlpool Connector
6BWP62889 Whirlpool Washer Lid Switch Terminal Receptacle
6Harness, Upper (Automatic) (Includes Illus. 6A, 6B & 6C)
6APlug, Terminal (12-Way) (Connects With Automatic Console Harness)
8Clip, Pressure Switch Hose And Wiring Harness (3)
10WP488234 Whirlpool Air Conditioner Screw
11WP90016 Whirlpool Clip
12CLIP
13W10834213 Whirlpool Hose
