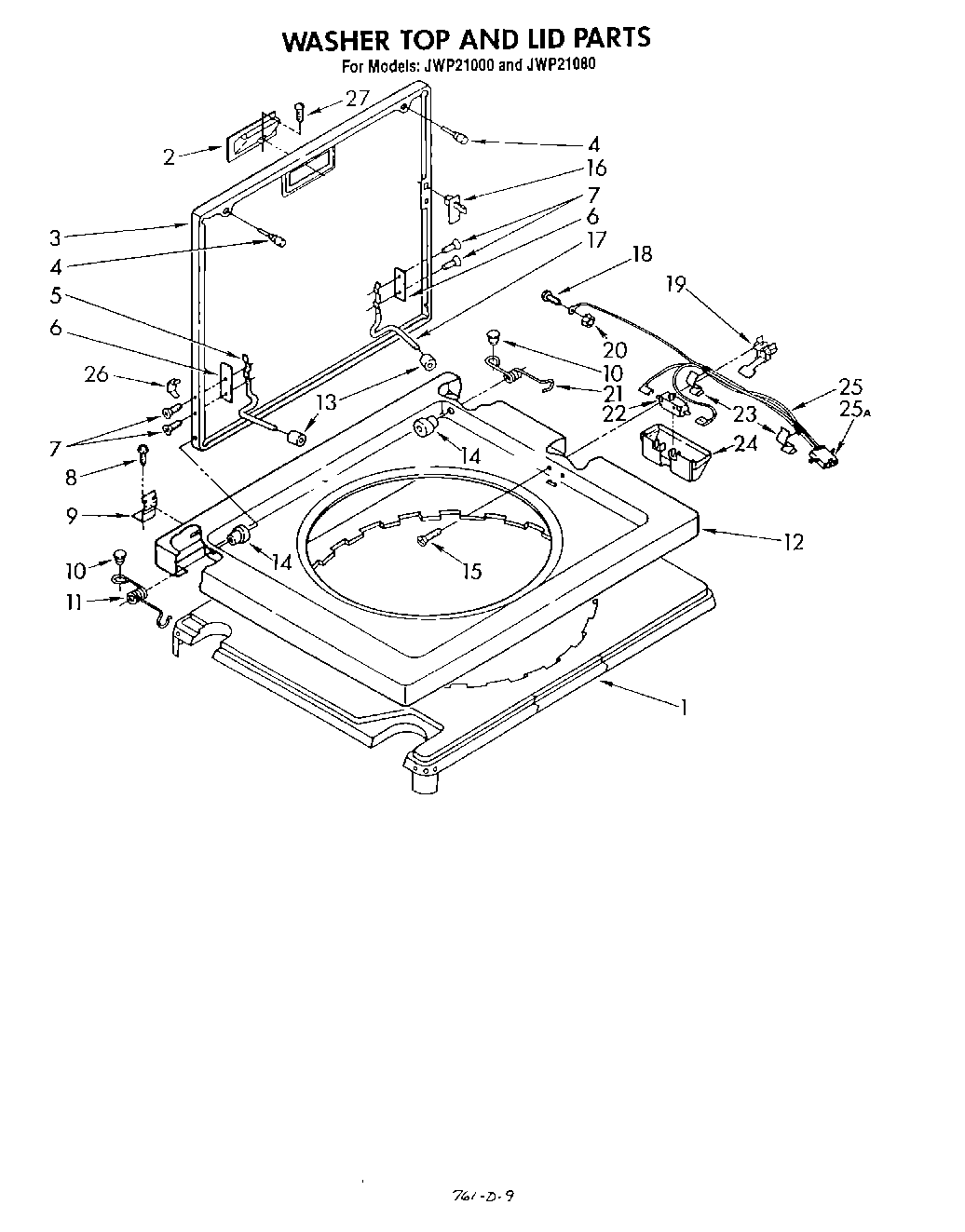

JWP21000 07 – WASHER TOP AND LID

Products

PositionProduct
1Shield, Wiring
2Handle, Lid (Platinum)
2Handle, Lid (Toast)
2Handle, Lid (Golden Harvest)
2Handle, Lid (Almond)
2Handle, Lid (White)
3Lid (Golden Harvest)
3Lid (Platinum)
3Lid (Almond)
3Lid (White)
3Lid (Toast)
480011 Whirlpool Washer Lid Bumper Kit of 2
5384458 Whirlpool Hinge Assembly
6WP21097 Whirlpool Pad
7SCREW
8SCREW
9WP692985 Whirlpool Clip Assembly
10Plug, Button
11Spring, Lid (L.H.) (Includes Illus 10)
12Top (Platinum)
12Top (Toast)
12Top (Golden Harvest)
12Top (Almond)
12WP384693 Whirlpool Top
13Bumper, Lid Hinge
14WP21258 Whirlpool Washer Lid Hinge Bearing
15Screw & Washer, Lid Switch (2)
16WP358684 Whirlpool Strike Assembly
17384459 Whirlpool Hinge
18WP308544 Whirlpool Screw
19Actuator, Lid Switch
20W10080180 Whirlpool Nut
21Spring, Lid (R.H.) (Includes Illus. 10)
22W10820036 Whirlpool Door Switch Kit
23WP90016 Whirlpool Clip
24WP359231 Whirlpool Shield
25APlug, Terminal (3-Way)
25Harness, Lid Switch
26WP297092 Whirlpool Clip
27Screw
