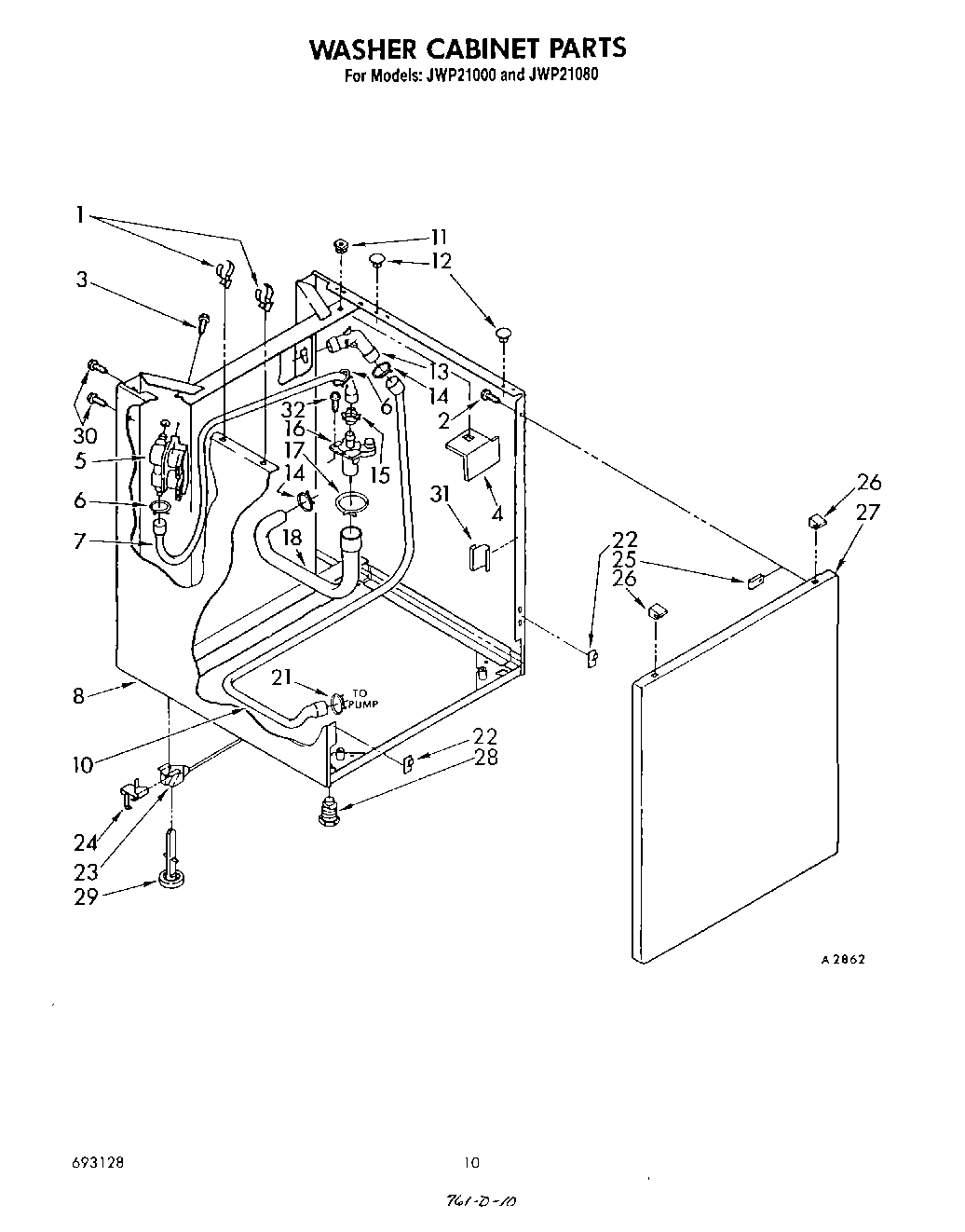

JWP21000 08 – WASHER CABINET

JWP21000 08 – WASHER CABINET

Written by

in

JWP21000 08 – WASHER CABINET

Products

PositionProduct
1356746 Whirlpool Clip
2SCREW
3WP3390631 Whirlpool Screw
4Shield, Rear
5285805 Whirlpool Washer Water Inlet Valve
6WP596669 Whirlpool Hose Clamp
7WP692699 Whirlpool Hose
8Cabinet (White)
8Cabinet (Golden Harvest)
8Cabinet (Toast)
8Cabinet (Platinum)
8Cabinet (Almond)
10WP696710 Whirlpool Hose
11WP692400 Whirlpool Nut
12WP660975 Whirlpool Button Plug
13W11213338 Whirlpool Connector
14Clamp, Hose
15WP356471 Whirlpool Cap
16WP356363 Whirlpool Siphon Break
17WP616099 Whirlpool Clamp
18WP696394 Whirlpool Hose
21WP285655 Whirlpool Hose Clamp
22W10854425 Whirlpool Dryer Front Panel Bottom Mounting Clip
23WP358652 Whirlpool Link
24WP359364 Whirlpool Clip
25WP98234 Whirlpool Nut
26WP345670 Whirlpool Lock
27WP692628 Whirlpool Panel
27Panel, Front (Golden Harvest)
27Panel, Front (Platinum)
27Panel, Front (Toast)
27Panel, Front (Almond)
28WP367594 Whirlpool Leveling Feet
29WP358594 Whirlpool Leveling Feet
30WP308544 Whirlpool Screw
31Pad, Extruder (2)
3260001022 Whirlpool Oven Screw
