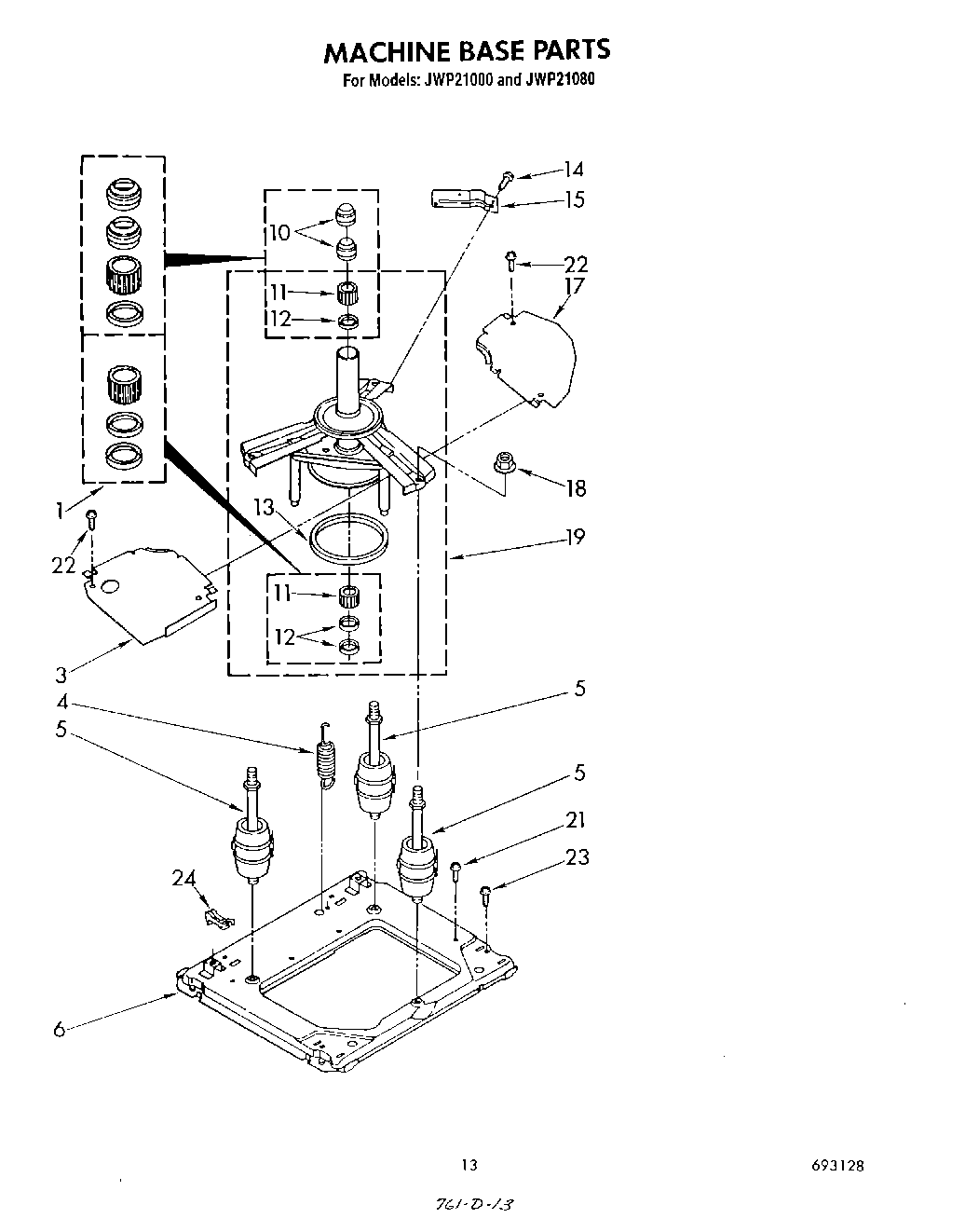

JWP21000 10 – MACHINE BASE

JWP21000 10 – MACHINE BASE

Written by

in

JWP21000 10 – MACHINE BASE

Products

PositionProduct
1285203 Whirlpool CP Bearing
3WP64137 Whirlpool Shield Assembly
4WPW10250667 Whirlpool Washer Suspension Spring
5W10207783 Whirlpool Washer Suspension Spring Kit (Set of 3)
6WP8577373 Whirlpool Base Assembly
10WP8577376 Whirlpool Seal
11WP8546455 Whirlpool Bearing
12W11095997 Whirlpool Seal
13WP63134 Whirlpool Ring
14WP273556 Whirlpool Screw
1563636 Whirlpool Bracket
1763637 Whirlpool Shield
18279710 Whirlpool Nut
19W10863713 Whirlpool Support
21SCREW
22WP90767 Whirlpool Screw
23386011 Whirlpool Screw
24696044 Whirlpool Block
