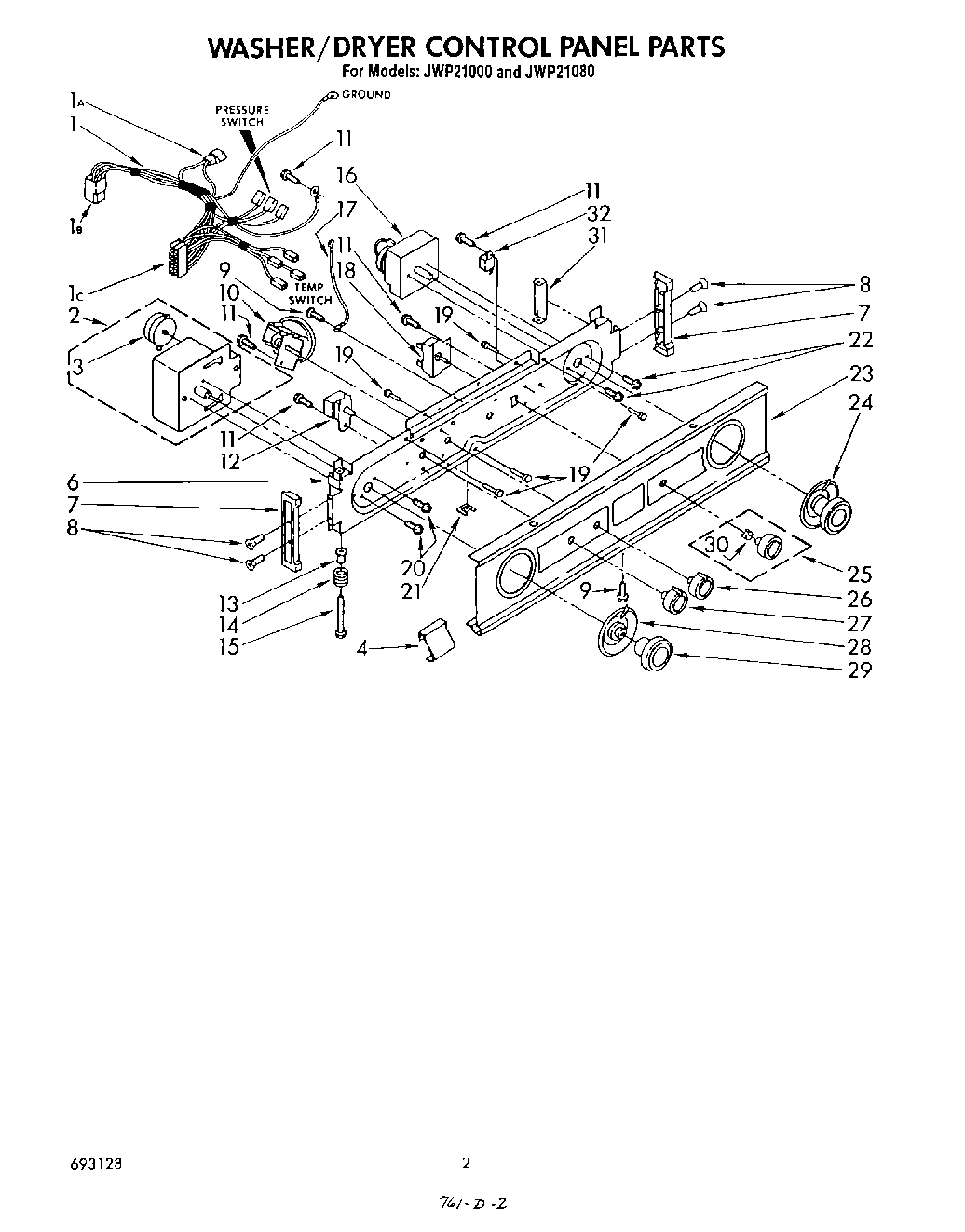

JWP21080 02 – WASHER/DRYER CONTROL PANEL

Products

Position	Product
1C	W10876590 Whirlpool Connector
1	Harness, Console Wiring (Automatic) (Includes Illus.1A, 1B & 1C)
1B	696073 Whirlpool Connector
1A	Plug
2	WP3946432 Whirlpool Timer
3	Motor, Timer
4	WPL 686768
6	Bracket, Control
7	End Cap, Console (L.H. & R.H.)
8	NAMEPLATE
9	WP694091 Whirlpool Screw
10	Switch, Water Level
11	WP3390631 Whirlpool Screw
12	Switch, Water Temperature
13	693711 Whirlpool Sleeve
14	WP693151 Whirlpool Lock Spring
15	Screw, Console Lock (2)
16	WP3388255 Whirlpool Timer
17	Strut, Console
18	Switch, Push-To-Start
19	693152 Whirlpool Bumper
20	WP356418 Whirlpool Screw
21	694037 Whirlpool Clip
22	303776 Whirlpool Dishwasher Screw
23	Panel, Control
24	Knob & Skirt, Dryer Timer
25	Button, Push-To-Start
27	Knob & Clip, Water Level
28	Dial, Timer
29	WPL 3347726
30	WP688805 Whirlpool Spring Clip
31	WP692983 Whirlpool Console Lock
32	WP694419 Whirlpool Buzzer Adjuster
