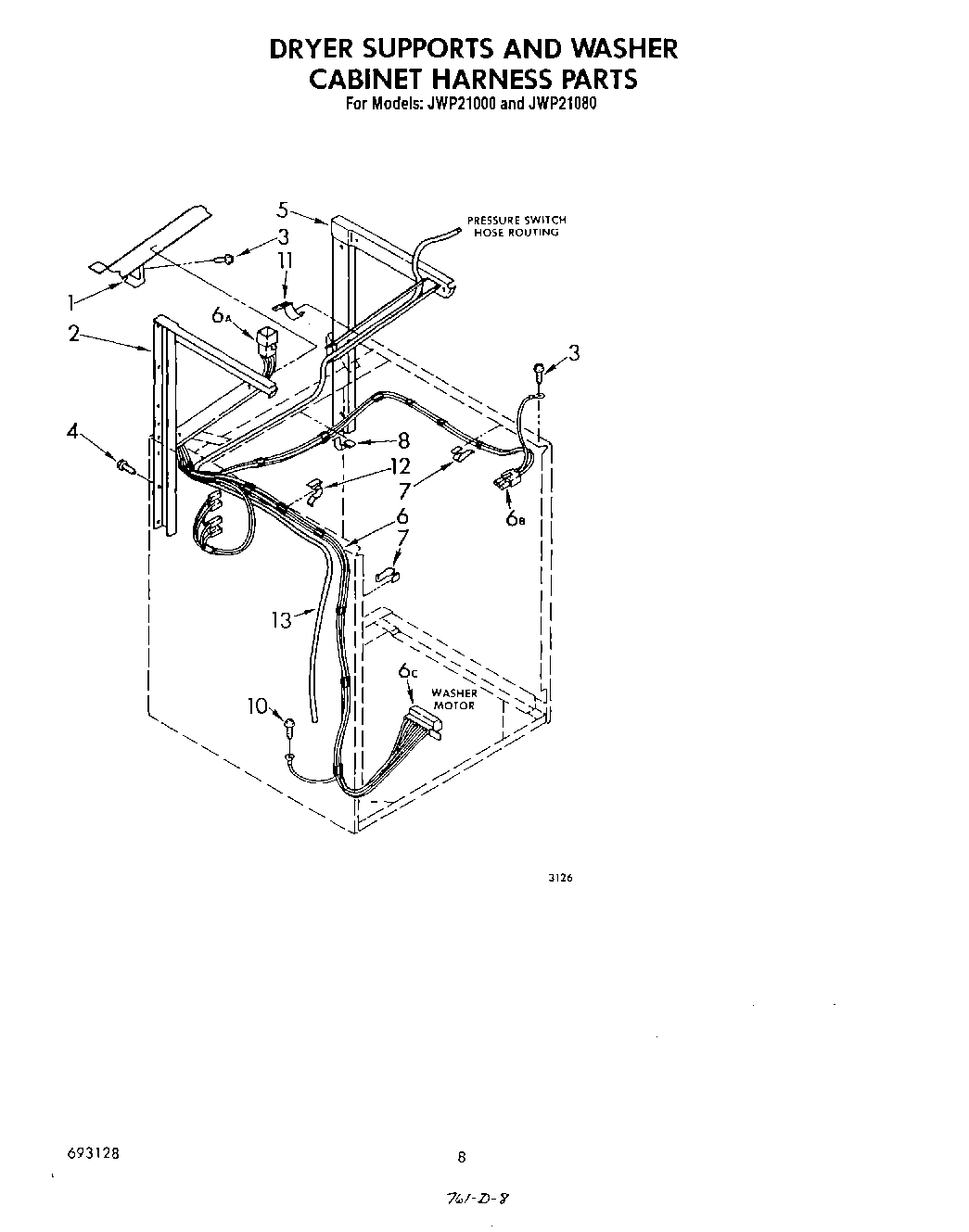

JWP21080 06 – DRYER SUPPORTS AND WASHER CABINET H

Products

Position	Product
1	694304 Whirlpool Channel Cover
2	W11174025 Whirlpool Support Assembly
3	SCREW
4	WP308544 Whirlpool Screw
5	W11174024 Whirlpool Support
6C	WP62505 Whirlpool Connector
6B	WP62889 Whirlpool Washer Lid Switch Terminal Receptacle
6	Harness, Upper (Automatic) (Includes Illus. 6A, 6B & 6C)
6A	Plug, Terminal (12-Way) (Connects With Automatic Console Harness)
8	Clip, Pressure Switch Hose And Wiring Harness (3)
10	WP488234 Whirlpool Air Conditioner Screw
11	WP90016 Whirlpool Clip
12	CLIP
13	W10834213 Whirlpool Hose
