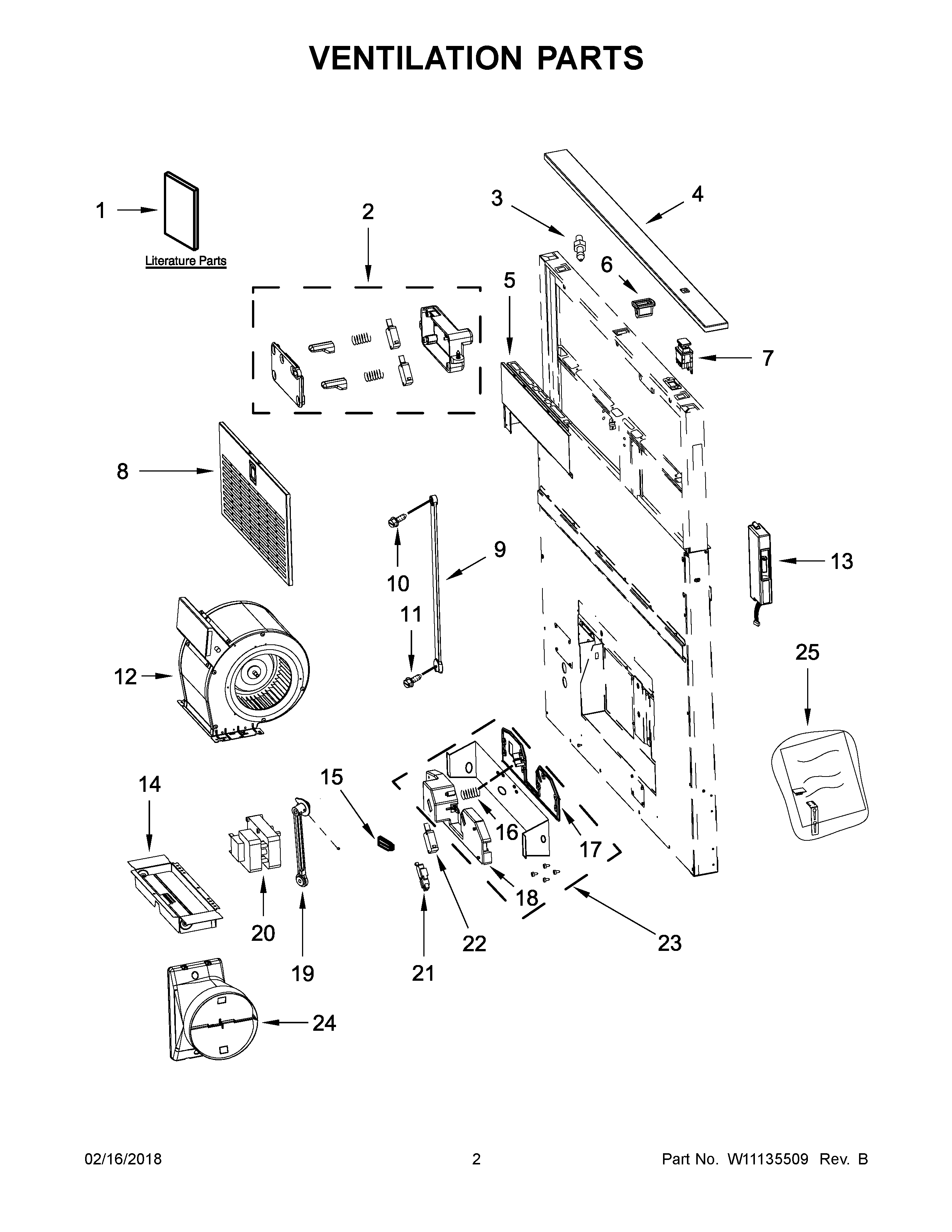

JXD7030YS4 02 – VENTILATION PARTS

Products

Position	Product
NI	ACCESSORIES, TRIM, TOP (30" BLACK)
NI	ACCESSORIES, TRIM, TOP (36" BLACK)
NI	MAY W10798405
NI	MAY W10798404
1	USE & CARE GUIDE/INSTALL INSTRUCTS
2	MAY W11097349
3	MAY W10421517
4	TRIM, TOP (30" STAINLESS)
4A	TRIM, TOP (36" STAINLESS)
5A	MAY W10798400
5	MAY W10798407
6	MAY W10421518
7	MAY W10899381
8	FILTER, GREASE (30" MODEL)
8A	FILTER, GREASE (36" MODEL)
9	MAY W10421280
10	MAY W10422765
11	MAY W10422764
12	MAY W10849492
13	MAY W11088233
14	DAMPER, HOOD
15	MAY W10681777
16	MAY W10469579
17	MAY W11097343
18	MAY W11097371
19	MAY W10421277
20	MAY W10398274
21	MAY W10398341
22	MAY W11097288
23	MAY W10801493
24	MAY W10313841
25	MAY W10422159
