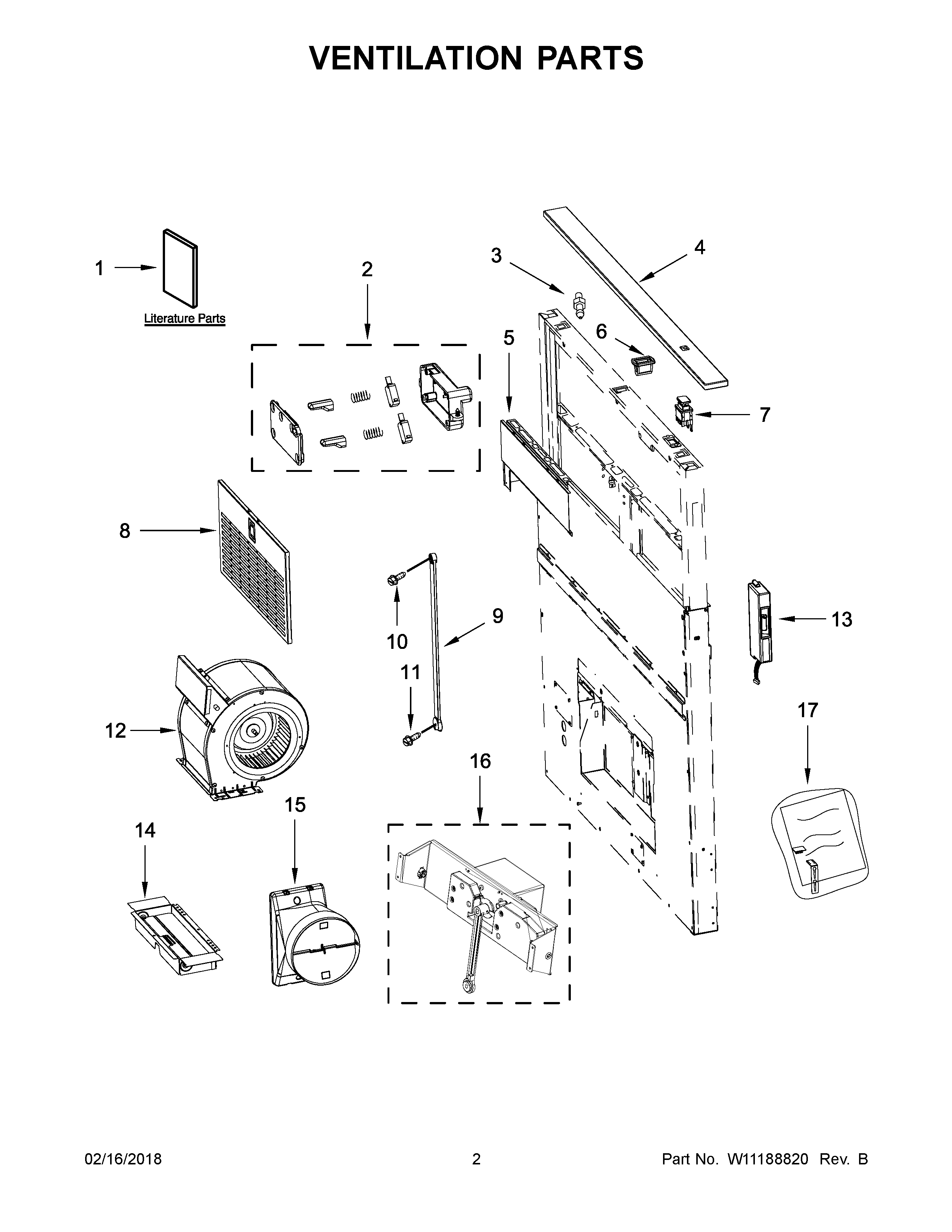

JXD7030YS5 02 – VENTILATION PARTSadmin2025-04-26T09:25:18+00:00JXD7030YS5 02 – VENTILATION PARTS
Products
| Position | Product |
|---|
| NI | ACCESSORIES, TRIM, TOP (30" BLACK) |
| NI | MAY W10798405 |
| NI | MAY W10798404 |
| NI | ACCESSORIES, TRIM, TOP (36" BLACK) |
| 1 | USE & CARE GUIDE/INSTALL INSTRUCTS |
| 2 | MAY W11097349 |
| 3 | MAY W10421517 |
| 4A | TRIM, TOP (36" STAINLESS) |
| 4 | TRIM, TOP (30" STAINLESS) |
| 5 | MAY W10798407 |
| 5A | MAY W10798400 |
| 6 | MAY W10421518 |
| 7 | MAY W10899381 |
| 8A | FILTER, GREASE (36" MODEL) |
| 8 | FILTER, GREASE (30" MODEL) |
| 9 | MAY W10421280 |
| 10 | MAY W10422765 |
| 11 | MAY W10422764 |
| 12 | MAY W10849492 |
| 13 | MAY W11088233 |
| 14 | DAMPER, HOOD |
| 15 | MAY W10313841 |
| 16 | ASSEMBLY, MOTOR (SEE MOTOR ASSEMBLY PARTS PAGE FOR FULL BREAKDOWN) |
| 17 | MAY W11123695 |
