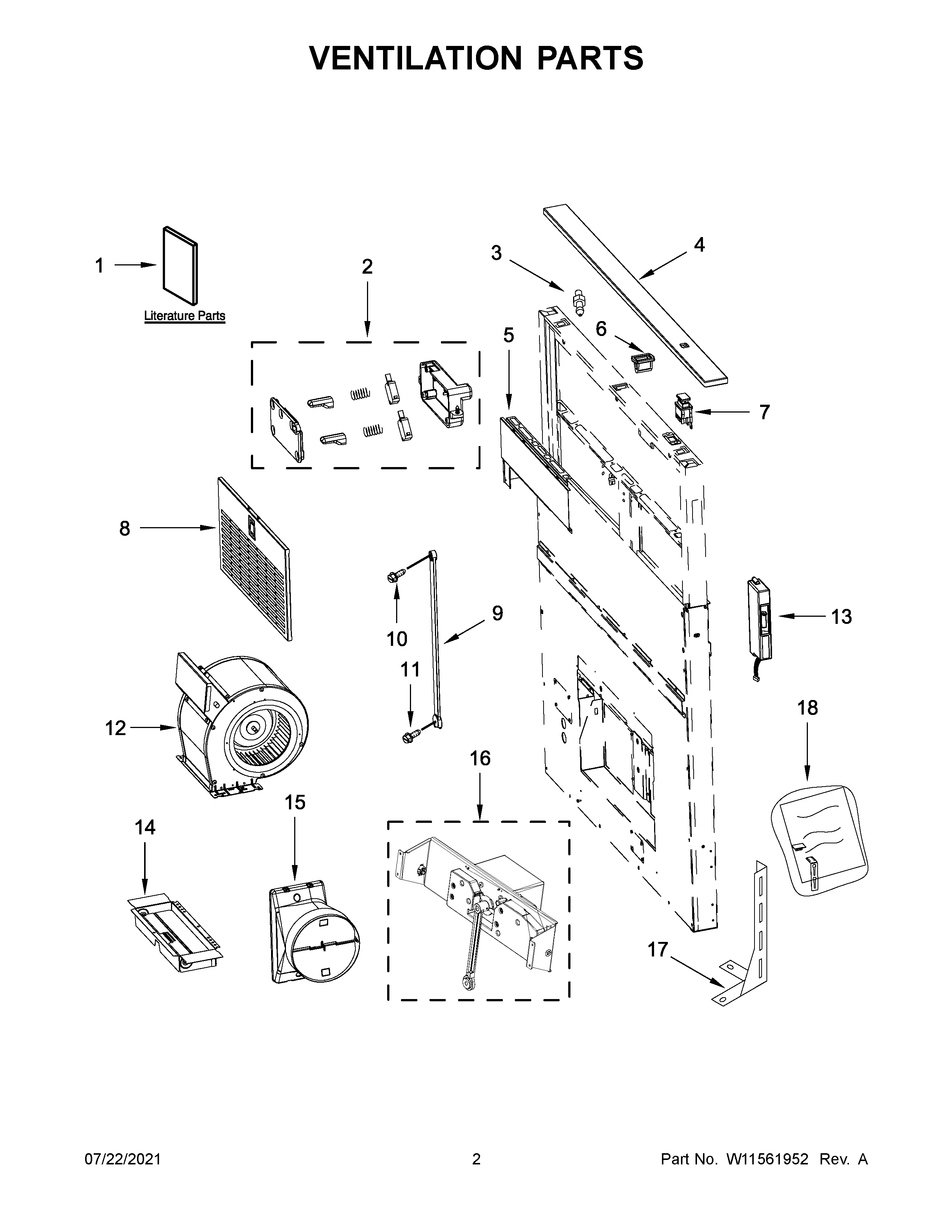

JXD7036YS6 02 – VENTILATION PARTS

Products

Position	Product
NI	CABINET (NOT A SERVICEABLE PART)
NI	W11174412 Whirlpool Hardware
NI	W11174413 Whirlpool Hardware
1	USE & CARE GUIDE
2	W11666423 Whirlpool Cover Switch
3	W10421517 Whirlpool Clip
4	W11561955 Whirlpool Decorative Trim
4A	W11561956 Whirlpool Decorative Trim
5A	W10421449 Whirlpool Cover Front
5	W10798407 Whirlpool Front Cover
6	WPW10421518 Whirlpool Clip Assembly
7	SWITCH-PB
8A	W10422880 Whirlpool Filter
8	W10422879 Whirlpool Filter
9	WPW10421280 Whirlpool Motor Arm
10	SCREW UPPER
11	WPW10422764 Whirlpool Screw
12	W11672683 Whirlpool Range Blower Fan
13	W11088943-includeCORE Whirlpool W11088943 Refrigerator Electronic Control Board + Core
14	W11516461 Whirlpool Hood Damper
15	WPW10313841 Whirlpool Hood Damper
16	W11187731 Whirlpool Motor Assembly
17	W11233209 Whirlpool Mounting Bracket
18	W11123695 Whirlpool Hardware Assembly
