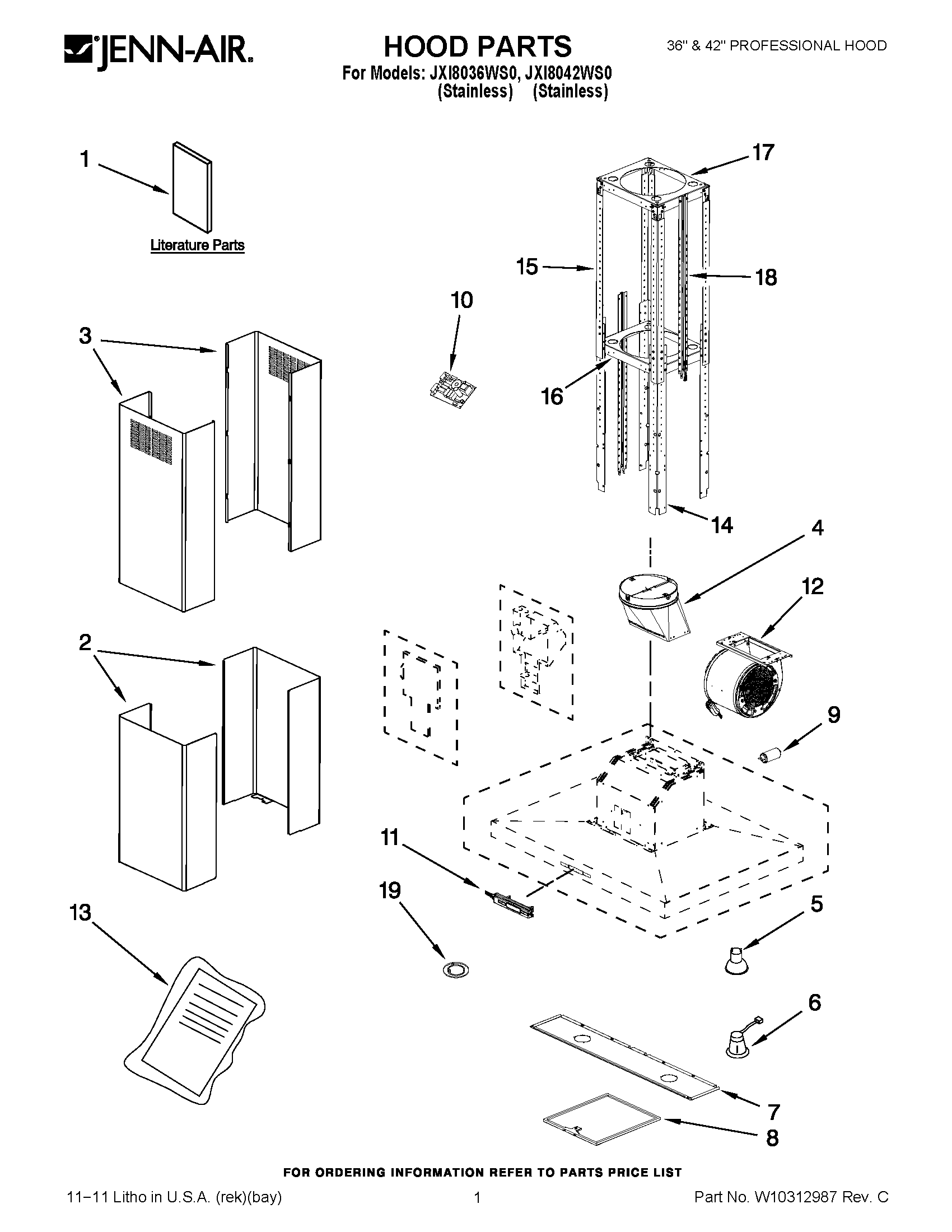

JXI8042WS0 01 – HOOD PARTSadmin2025-04-26T09:28:04+00:00JXI8042WS0 01 – HOOD PARTS
Products
| Position | Product |
|---|
| NI | KIT, RECIRCULATION |
| NI | KIT, CHIMNEY EXTENSION |
| NI | MAY W10272068 |
| 1 | MAY W10274319 |
| 2 | CHIMNEY, LOWER |
| 3 | CHIMNEY, UPPER |
| 4 | ASSEMBLY, DAMPER |
| 5 | BULB, LIGHT |
| 6 | SOCKET, LIGHT |
| 7 | MAY W10295822 |
| 7 | MAY W10295825 |
| 8 | MAY W10291612 |
| 9 | CAPACITOR |
| 10 | MAY W10291604 |
| 11 | CONTROL, ELECTRIC |
| 12 | ASSEMBLY, FAN |
| 13 | MAY W10293062 |
| 14 | MAY W10293064 |
| 15 | MOUNTING/SUPPORT (SUPPORT, UPPER) |
| 16 | SUPPORT, LOWER HORIZONTAL |
| 17 | SUPPORT, UPPER HORIZONTAL |
| 18 | SUPPORT, VERTICAL DUCT COVER WITH SPRINGS |
| 19 | BEZEL, LIGHT |
