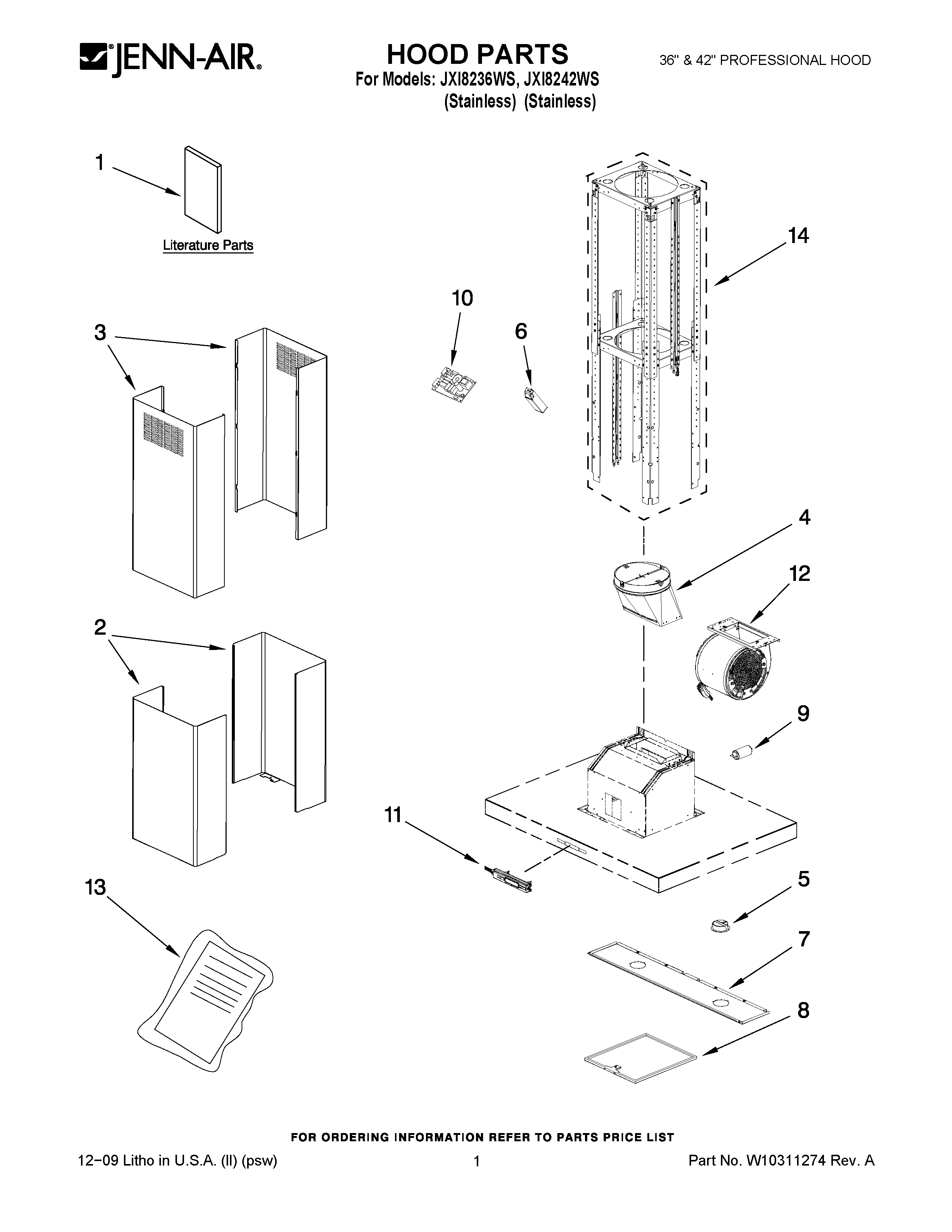

JXI8236WS 01 – HOOD PARTS

Products

Position	Product
1	MAY W10274313
2	MAY W10293601
3	CHIMNEY, UPPER
4	ASSEMBLY, DAMPER
5	BULB, ASSEMBLY
6	Transformer (110-127V,20-6W)
7	MAY W10295825
7	MAY W10295822
8	MAY W10291612
9	CAPACITOR
10	MAY W10291604
11	CONTROL, ELECTRIC
12	ASSEMBLY, FAN
13	MAY W10295837
14	MOUNTING/SUPPORT (SUPPORT, UPPER)
14	SUPPORT, LOWER HORIZONTAL
14	SUPPORT, UPPER HORIZONTAL
14	MAY W10293064
