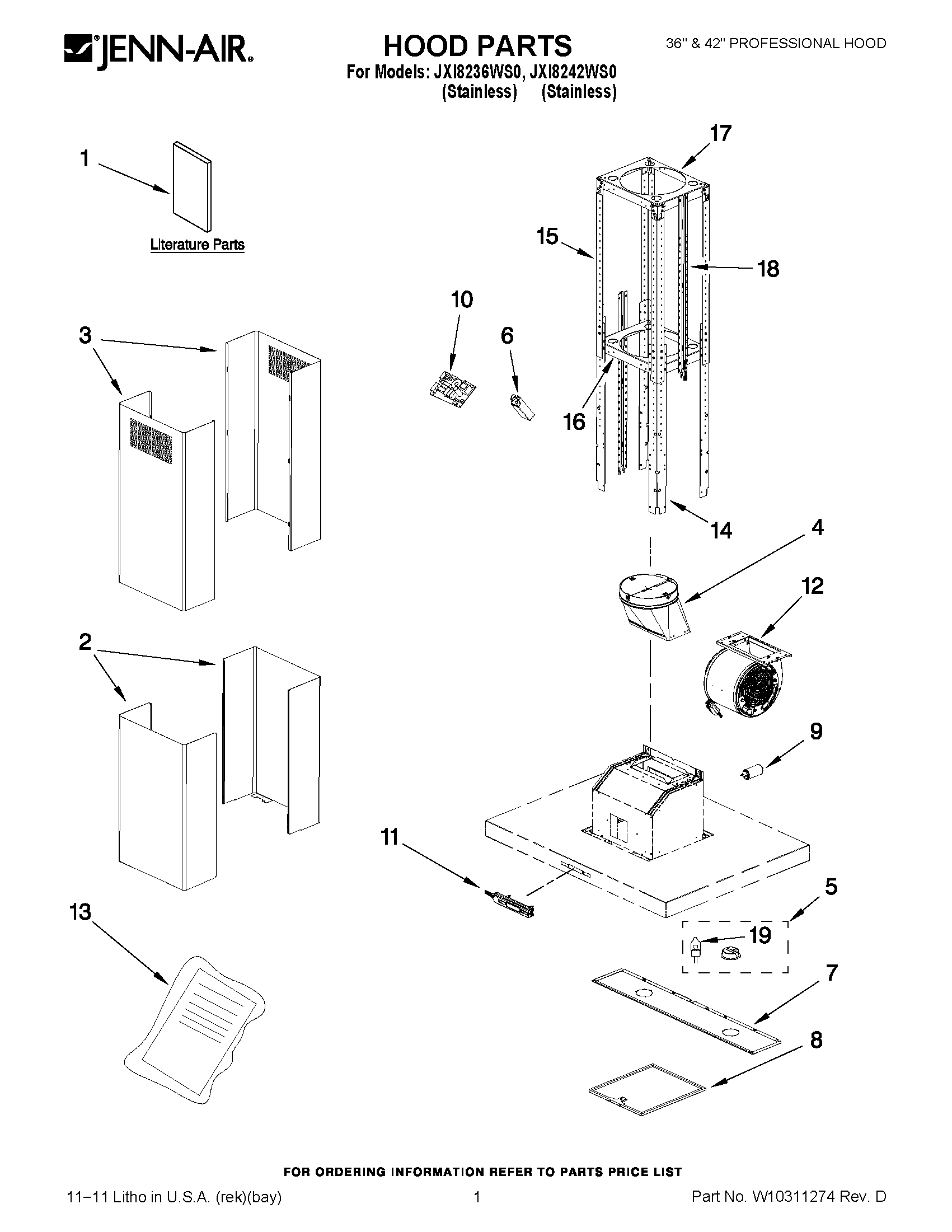

JXI8242WS0 01 – HOOD PARTSadmin2025-04-26T09:25:53+00:00JXI8242WS0 01 – HOOD PARTS
Products
| Position | Product |
|---|
| NI | KIT, CHIMNEY EXTENSION |
| NI | MAY W10272068 |
| NI | KIT, RECIRCULATION |
| 1 | MAY W10274313 |
| 2 | CHIMNEY, LOWER |
| 3 | CHIMNEY, UPPER |
| 4 | ASSEMBLY, DAMPER |
| 5 | BULB, ASSEMBLY |
| 6 | Transformer (110-127V,20-6W) |
| 7 | MAY W10295822 |
| 7 | MAY W10295825 |
| 8 | MAY W10291612 |
| 9 | CAPACITOR |
| 10 | MAY W10291604 |
| 11 | CONTROL, ELECTRIC |
| 12 | ASSEMBLY, FAN |
| 13 | MAY W10295837 |
| 14 | MAY W10293064 |
| 15 | MOUNTING/SUPPORT (SUPPORT, UPPER) |
| 16 | SUPPORT, LOWER HORIZONTAL |
| 17 | SUPPORT, UPPER HORIZONTAL |
| 18 | SUPPORT, VERTICAL DUCT COVER WITH SPRINGS |
| 19 | MAY W10298151 |
