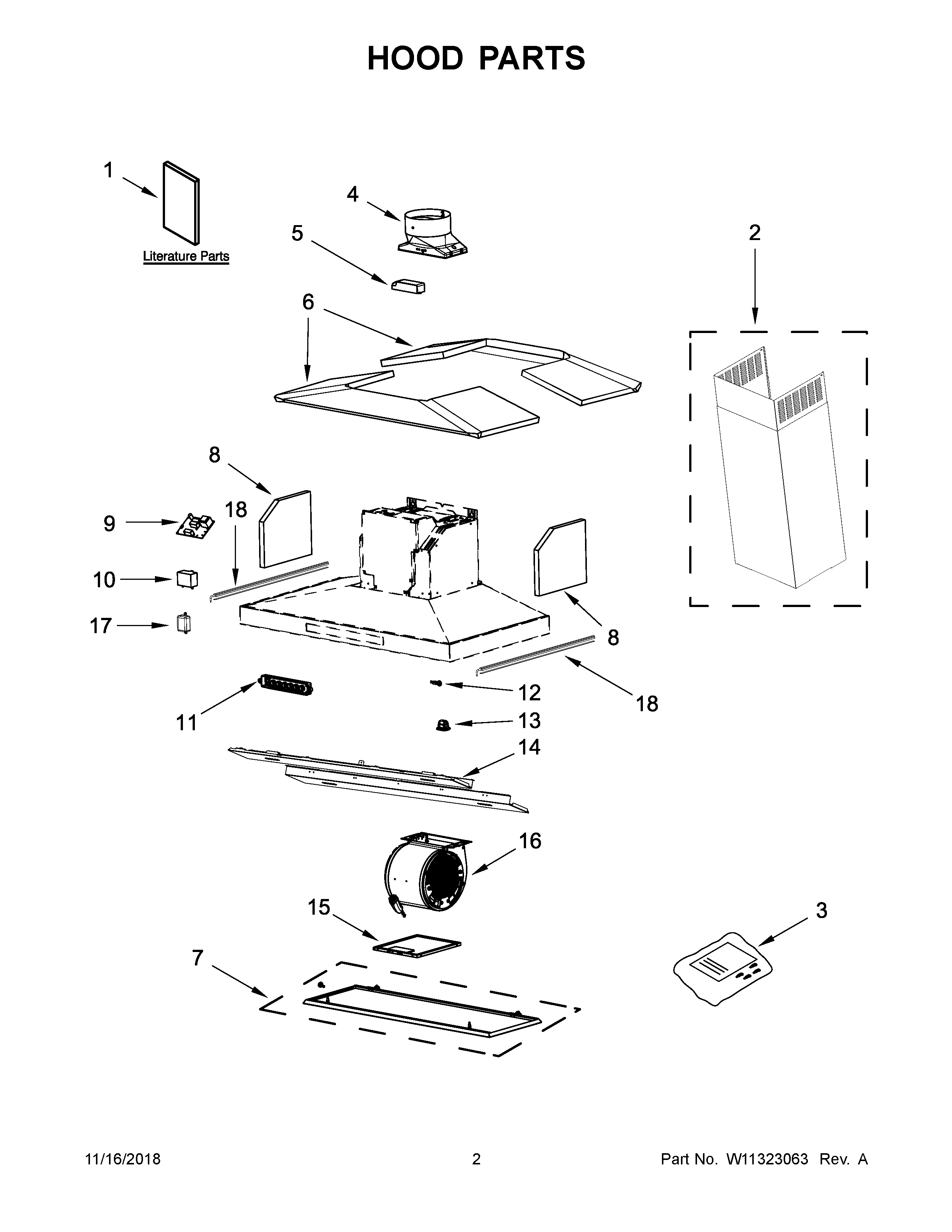

JXI8536DS1 02 – HOOD PARTS

Products

Position	Product
NI	ACCESSORIES, KIT, RECIRCULATION (FOR NON-VENTED INSTALLATIONS ONLY)
NI	MAY W10446915
NI	ACCESSORIES, KIT, IN-LINE SMART
NI	ACCESSORIES, KIT, POWER CORD
NI	ACCESSORIES, KIT, CHIMNEY EXTENSION
NI	ACCESSORIES, KIT, CHARCOAL FILTER (FOR NON-VENTED INSTALLATIONS ONLY)
1	USE AND CARE GUIDE
2	CHIMNEY, UPPER AND LOWER
3	HARDWARE, INSTALLATION
4	DAMPER, HOOD
5	DRIVER, LED
6	INSULATION (36" MODEL ONLY)
7	PANEL, PERIMETRIC (36" MODEL ONLY)
8	INSULATION, SIDE
9	BOARD, CONTROL
10	CAPACITOR (25 MF)
11	CONTROL, ELECTRONIC
12	SENSOR, SPEED
13	CLIP, PANEL
14	PANEL, LED LAMPS
15	FILTER, GREASE
16	BLOWER, FAN
17	MAY W11088596
18	LED STRIP, AMBIENT
